1988 Kawasaki Voyager Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

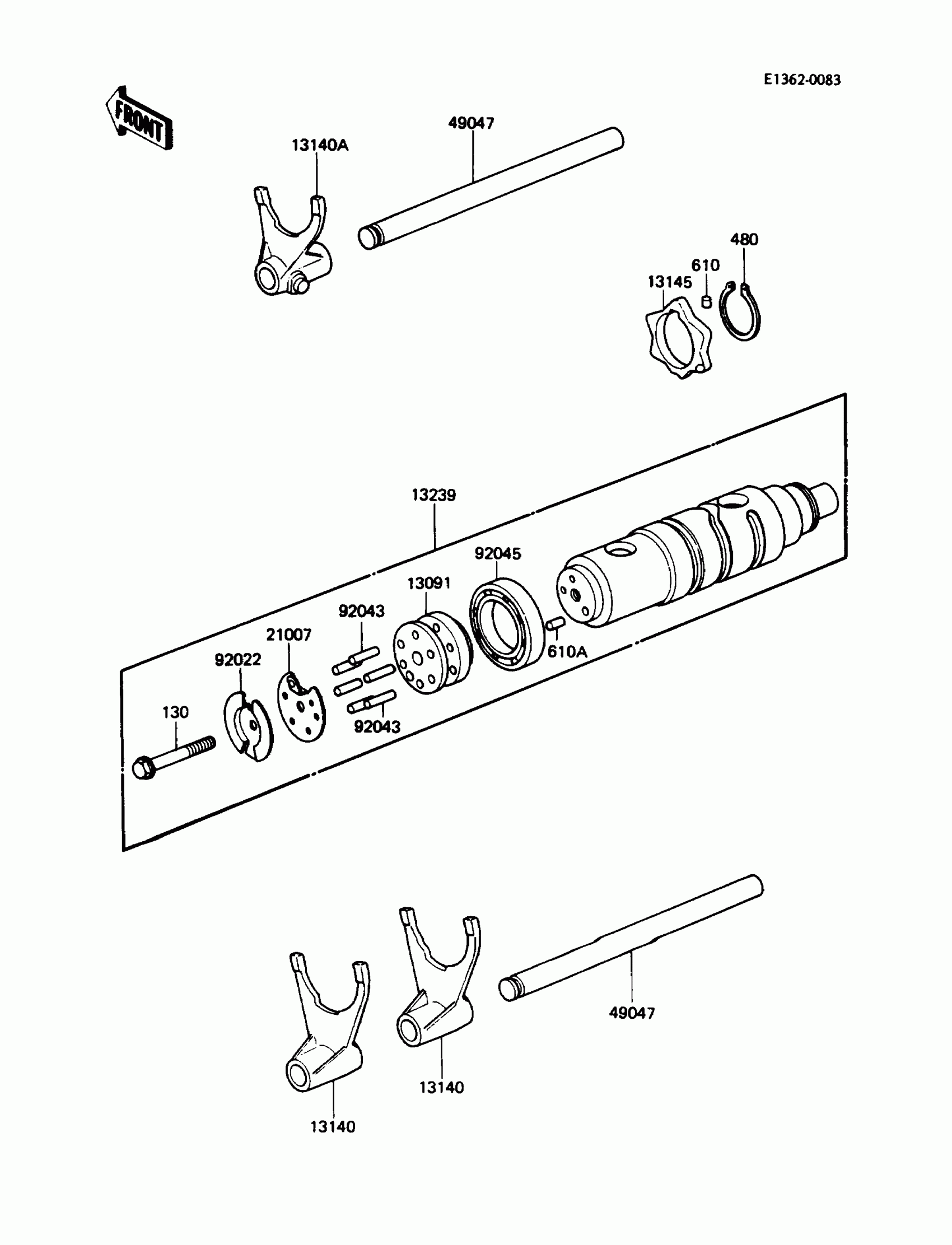

1988 Kawasaki Voyager Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,BEARING

13091-1113

1
Out of stock

13140

FORK-SHIFT,LOW,2ND & 3RD

13140-1050

1
Out of stock

13140A

FORK-SHIFT,4TH & TOP

13140-1051

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1109

1
Out of stock

21007

ROTOR,NEUTRAL

21007-1070

1
Out of stock

49047

ROD-SHIFT,12X173

49047-1008

1
Out of stock

92022

WASHER,NEUTRAL ROTOR

92022-1399

1
Out of stock

92043

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,#6906

92045-1016

1
Out of stock

130

BOLT-FLANGED,6X35

130G0635

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

610A

ROLLER,4X8

610A0408

1
Out of stock
