1988 Kawasaki Voyager Front Bevel Gear Diagram

← All diagrams

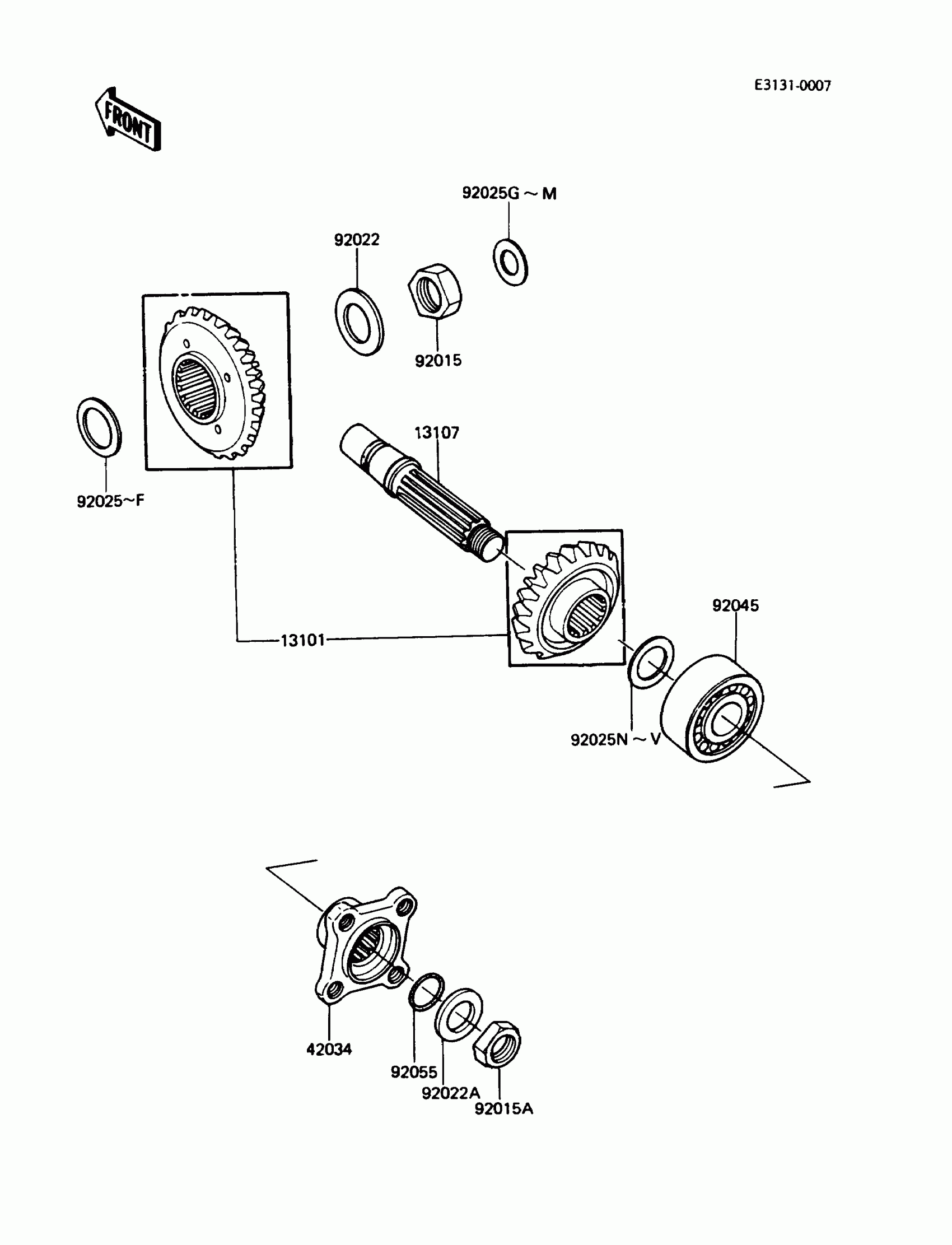

Find the part on the Front Bevel Gear diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,BEVEL,FR

13101-5042

1
Out of stock

13107

SHAFT,BEVEL GEAR

13107-1029

1
Out of stock

42034

1

$131.46

In stock

92015

NUT,24MM

92015-1057

1
Out of stock

92015A

NUT,20MM

92016-028

1

$7.86

In stock

92022

WASHER,SPRING,24MM

92022-1104

1

$9.25

In stock

92022A

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92025

SHIM,30.3X40X0.6

92025-1006

—
Out of stock

92025A

SHIM,30.3X40X0.9

92025-1007

—
Out of stock

92025B

SHIM,30.3X40X1.20

92025-1008

—
Out of stock

92025C

SHIM,30.3X40X0.1

92025-1009

—
Out of stock

92025D

SHIM,30.3X40X0.15

92025-1010

—
Out of stock

92025E

SHIM,30.3X40X0.20

92025-1011

—
Out of stock

92025F

SHIM,30.3X40X0.30

92025-1012

—
Out of stock

92025G

SHIM,15.3X27.5X0.60

92025-1020

—
Out of stock

92025H

SHIM,15.3X27.5X0.90

92025-1021

—
Out of stock

92025I

SHIM,15.3X27.5X1.20

92025-1022

—
Out of stock

92025J

SHIM,15.3X27.5X0.10

92025-1023

—
Out of stock

92025K

SHIM,15.3X27.5X0.15

92025-1024

—
Out of stock

92025L

SHIM,15.3X27.5X0.20

92025-1025

—
Out of stock

92025M

SHIM,15.3X27.5X0.30

92025-1026

—
Out of stock

92025N

SHIM,25.3X36X0.15

92025-1688

—
Out of stock

92025O

SHIM,25.3X36X0.50

92025-1689

—
Out of stock

92025P

SHIM,25.3X36X0.60

92025-1690

—
Out of stock

92025Q

SHIM,25.3X36X0.70

92025-1691

—
Out of stock

92025R

SHIM,25.3X36X0.80

92025-1692

—
Out of stock

92025S

SHIM,25.3X36X0.90

92025-1693

—
Out of stock

92025T

SHIM,25.3X36X1.00

92025-1694

—
Out of stock

92025U

SHIM,25.3X36X1.10

92025-1695

—
Out of stock

92025V

SHIM,25.3X36X1.20

92025-1696

—
Out of stock

92045

1

$100.33

In stock

92055

RING-O,20.5MM

92055-1029

1
Out of stock
