1986 Kawasaki Voyager Secondary Shaft Diagram

← All diagrams

Find the part on the Secondary Shaft diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

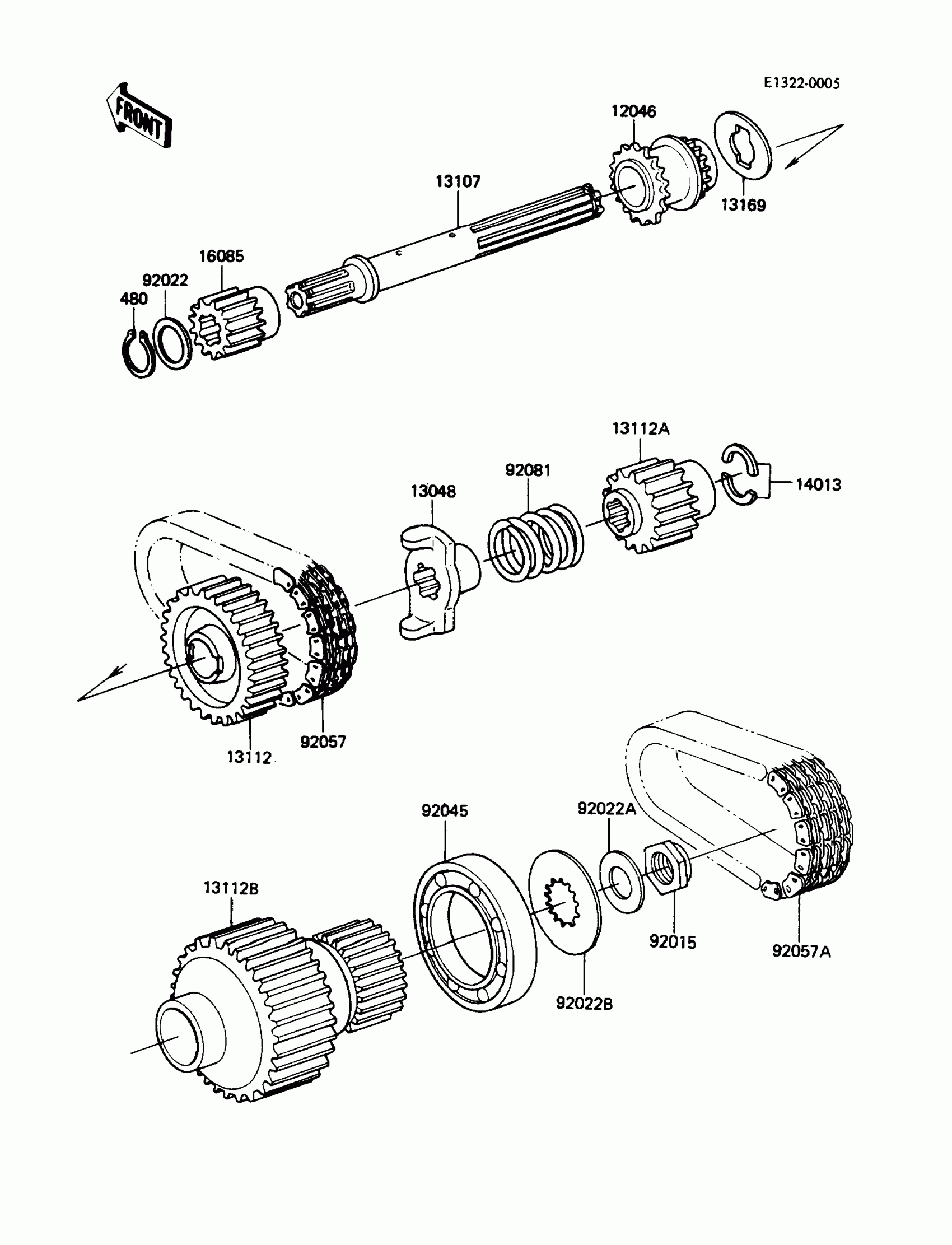

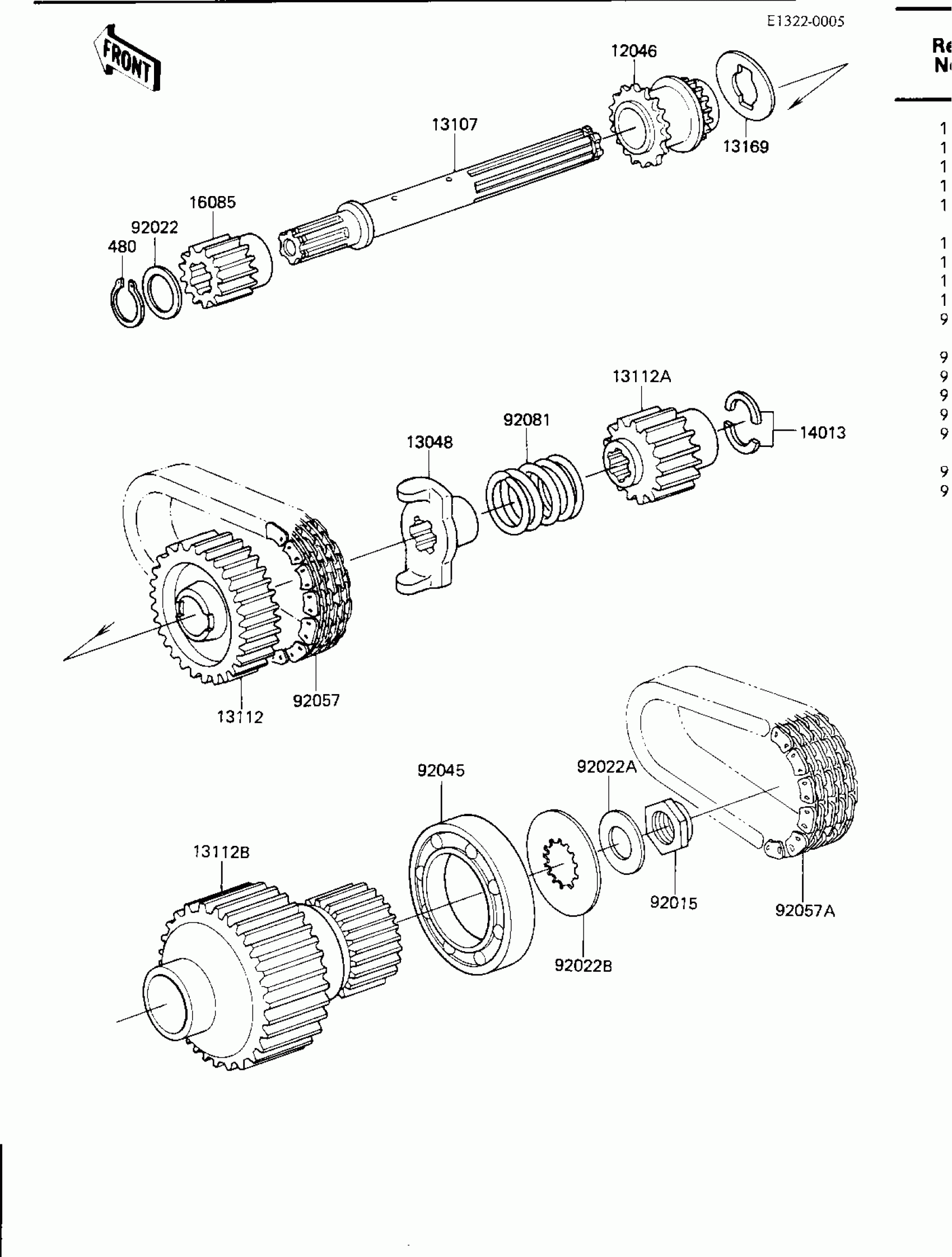

1986 Kawasaki Voyager Secondary Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,TIMING,28T&24T

12046-1011

1
Out of stock

13048

CAM-DAMPER,PRIMARY

13048-1016

1
Out of stock

13107

SHAFT,SECONDARY

13107-1007

1
Out of stock

13112

SPROCKET-PRIMARY,32T

13112-1008

1
Out of stock

13112A

SPROCKET-PRIMARY,21T

13112-1010

1
Out of stock

13112B

SPROCKET-PRIMARY,25T

13112-1051

1
Out of stock

13169

PLATE,SECONDARY SHAFT

13169-1327

1
Out of stock

14013

RING-POSITION

14013-1001

1
Out of stock

16085

GEAR,OIL PUMP,INPUT,19T

16085-1004

1
Out of stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,25.3X33X1

92022-1109

1

$4.72

In stock

92022A

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022B

WASHER,CLUTCH

92022-1404

1

$18.29

In stock

92045

BEARING-BALL,#6009

92045-1015

1

$35.46

In stock

92057

CHAIN,PRIMARY,50L

92057-1075

1

$304.89

In stock

92057A

CHAIN,SECONDARY

92057-1127

1

$293.95

In stock

92081

SPRING,CAM FOLLOWER

92081-1085

1

$41.45

In stock

480

1

$1.71

In stock
