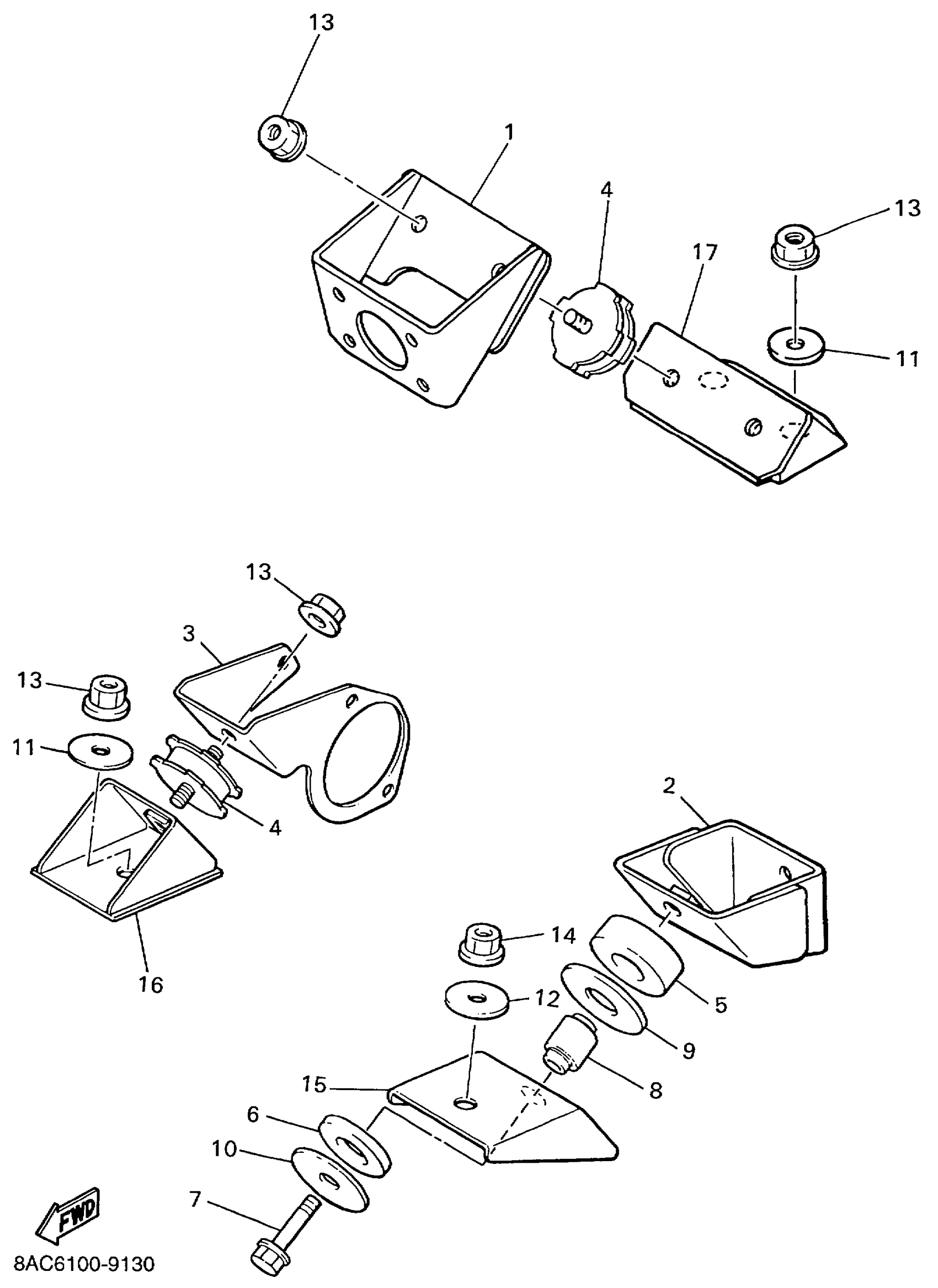

Yamaha VK540EC (VK540 III) 8AC6 1999 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8H8-21411-01-00

Unavailable

2

BRACKET, ENGINE 2

83R-21419-01-00

$40.73

3

BRACKET, ENGINE 3

8H8-21429-01-00

Unavailable

4

DAMPER 2

8N7-21486-00-00

$24.21

5

DAMPER, RUBBER 1

8V9-21485-00-00

$20.27

6

DAMPER 2

8V9-21486-00-00

Unavailable

7

BOLT, FLANGE(4GB)

95817-10045-00

$4.32

8

BUSH, SOLID (8V9)

90380-10129-00

Unavailable

9

WASHER, PLATE (8V9)

90201-257G7-00

Unavailable

10

WASHER (888)

90201-10151-00

Unavailable

11

WASHER, PLATE (856)

90201-10321-00

$5.16

12

WASHER (856)

90201-12317-00

Unavailable

13

NUT, FLANGE(8AB)

95707-10500-00

$1.64

14

NUT(3GG)

90179-12588-00

$5.36

15

BRACKET, FRONT LOWER 1

8AT-21417-00-00

$16.45

16

BRACKET, FRONT UNDER 2

8H8-21418-01-00

Unavailable

17

BRACKET, REAR UNDER 1

8H8-21427-00-00

Unavailable
