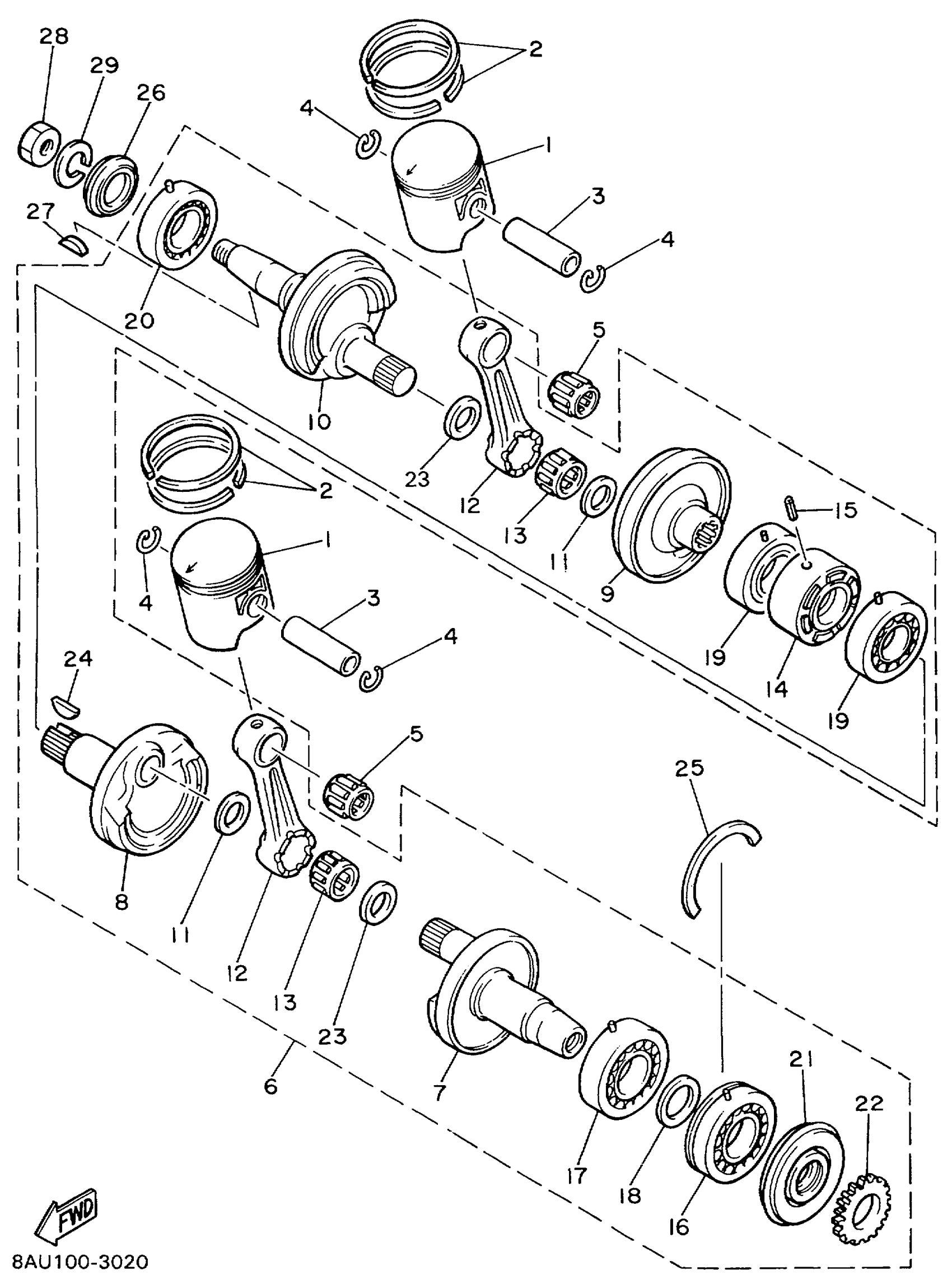

Yamaha VK540EC (VK540 III) 8AC6 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8R6-11631-00-95

$158.29

1

PISTON (0.25MM O/S)

8R6-11635-00-00

$168.63

1

PISTON (2ND 0/S 0.50MM)

8R6-11636-00-00

$155.82

2

PISTON RING SET (STD)

8R6-11601-00-00

$60.03

2

PISTON RING SET (1ST O/S)

8R6-11601-10-00

$58.52

2

PISTON RING SET (2ND O/S)

8R6-11601-20-00

$36.29

3

PIN, PISTON

8H8-11633-00-00

$30.72

4

CIRCLIP (8H0)

93450-21053-00

$3.43

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

$40.32

6

CRANKSHAFT ASSY

99999-03171-00

$1,297.99

6

CRANKSHAFT ASSY

8AT-11400-01-00

$1,284.99

7

CRANK 1

99999-03170-00

Unavailable

7

CRANK 1

83R-11412-01-00

$347.62

8

CRANK 2

8H8-11422-01-00

$228.08

9

CRANK 3

8H8-11432-01-00

$223.88

10

CRANK 4

8AT-11442-00-00

$323.42

11

WASHER (152-11685-00)

90209-24073-00

$10.08

12

ROD, CONNECTING

8R6-11651-00-00

$117.28

13

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

$110.95

14

SEAL, LABYRINTH 1

8H8-11515-00-00

$35.92

15

PIN, SPRING (663)

91690-30010-00

$5.46

16

BEARING(83R)

93306-30627-00

$100.38

17

BEARING(83R)

93306-30627-00

$100.38

18

WASHER (8H0)

90201-34683-00

$8.68

19

BEARING (8G8)

93306-20617-00

$69.94

20

BEARING (8G8)

93306-20617-00

$69.94

21

OIL SEAL (878).

93103-32095-00

$30.09

22

GEAR, PUMP DRIVE

8K2-13178-00-00

$36.28

23

WASHER, CRANK PIN

8A7-11685-00-00

$10.68

24

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

25

CIRCLIP (8H8)

93440-78069-00

$5.72

26

OIL SEAL(83R)

93103-32156-00

$26.08

27

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

28

NUT

90170-16425-00

$6.60

29

WASHER(JN5)

92907-16100-00

$12.08
