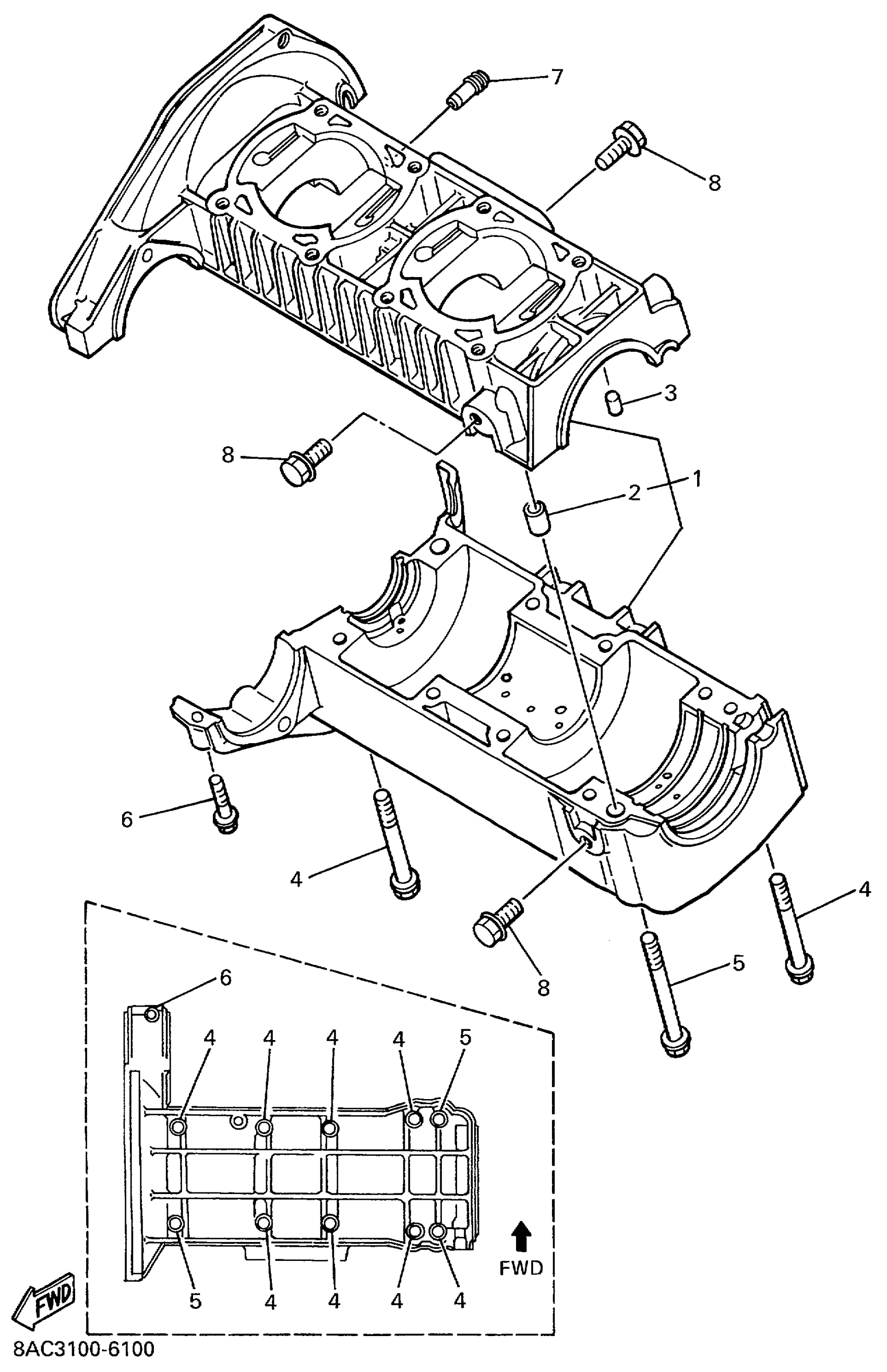

Yamaha VK540EC (VK540 III) 8AC6 1999 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE ASSY

8H8-15109-08-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.12

3

PIN, DOWEL (8H1)

93604-07141-00

$1.35

4

BOLT, FLANGE

95817-08075-00

$3.37

5

BOLT, FLANGE(8BN)

95817-08085-00

$3.08

6

BOLT, FLANGE

95817-06030-00

$3.91

7

JOINT, BREATHER

J38-11116-00-00

$2.77

8

BOLT, FLANGE(JN5)

95817-08016-00

$4.12
