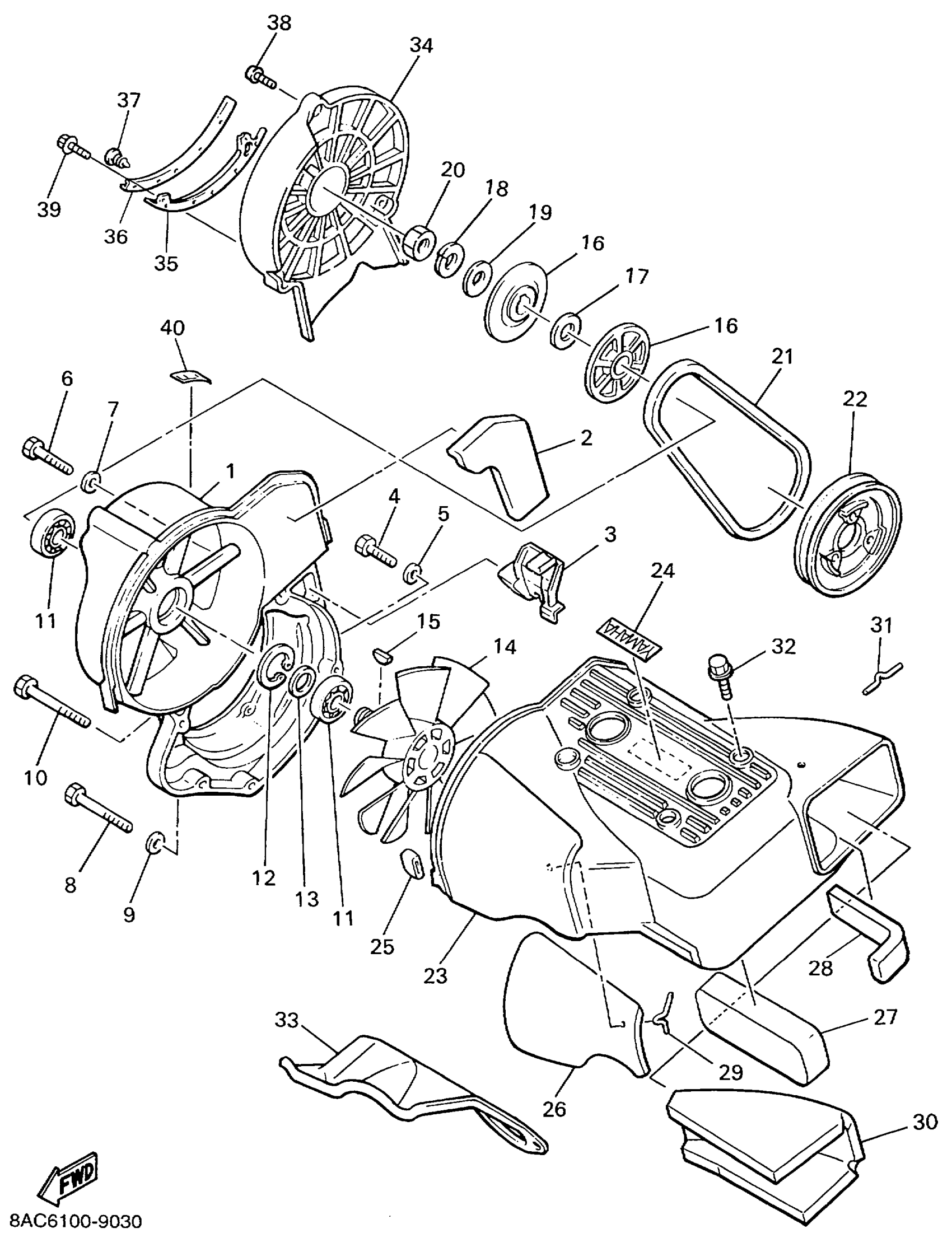

Yamaha VK540EC (VK540 III) 8AC6 1999 AIR SHROUD FAN Diagram

#

Description
Price

1

CASE, FAN

88T-12621-01-00

Unavailable

2

DAMPER, SHROUD 6

8Y0-12679-00-00

$6.52

3

DAMPER, AIR SHROUD 1

8Y0-12658-00-00

$39.08

4

BOLT (8K4)

90101-08499-00

$21.95

5

WASHER(6TA)

92907-08600-00

$2.52

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

WASHER(6TA)

92907-08600-00

$2.52

8

BOLT, HEXAGON

97017-08075-00

Unavailable

9

WASHER(6TA)

92907-08600-00

$2.52

10

BOLT, HEXAGON

97017-08075-00

Unavailable

11

BEARING

93306-20348-00

$33.70

12

CIR-CLIP (70R)

93420-40064-00

$6.98

13

WASHER, PLATE (8H8)

90201-17713-00

$6.23

14

FAN

8H8-12611-01-00

$77.61

15

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

16

PULLEY 2

8H8-12619-01-00

$31.99

17

WASHER, CLAW (8H8)

90214-17017-00

$5.74

17

WASHER, CLAW (1.0T)

90214-17018-00

Unavailable

18

WASHER(JN5)

92907-16100-00

$12.08

19

WASHER, PLATE (8H8)

90201-17713-00

$6.23

20

NUT

90170-16425-00

$6.60

21

BELT

8H8-12612-00-00

$19.42

22

PULLEY 1

8H8-12618-01-00

$37.14

23

AIR SHROUD CYL. 1

8H8-12651-02-00

$66.03

24

EMBLEM, YAMAHA

99246-00080-00

$17.71

25

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

$7.34

26

DAMPER, SHROUD 2

8H8-12659-00-00

$4.98

27

DAMPER, SHROUD 4

8H8-12669-00-00

$3.77

28

DAMPER, AIR SHROUD 5

8V8-12678-00-00

$6.58

29

91401-16025

91401-16025-00

$0.17

30

DAMPER, SHROUD 6

8AT-12679-00-00

$7.34

31

91401-16025

91401-16025-00

$0.17

32

BOLT, WITH WASHER(8V7)

90119-06108-00

$6.68

33

AIR SHROUD, CYLINDER 2

8H8-12652-00-00

$39.94

34

COVER, FAN CASE

8L0-12616-00-00

$30.12

35

STAY 1

8Y0-12637-02-00

$28.25

36

DAMPER, DUCT

8Y0-12687-02-00

$8.91

37

RIVET(8Y0)

90269-05051-00

$0.42

38

SCREW, BINDING

98907-06025-00

$6.18

39

BOLT, FLANGE

95817-06025-00

$1.46

40

LABEL, CAUTION

8K4-12628-00-00

$10.15
