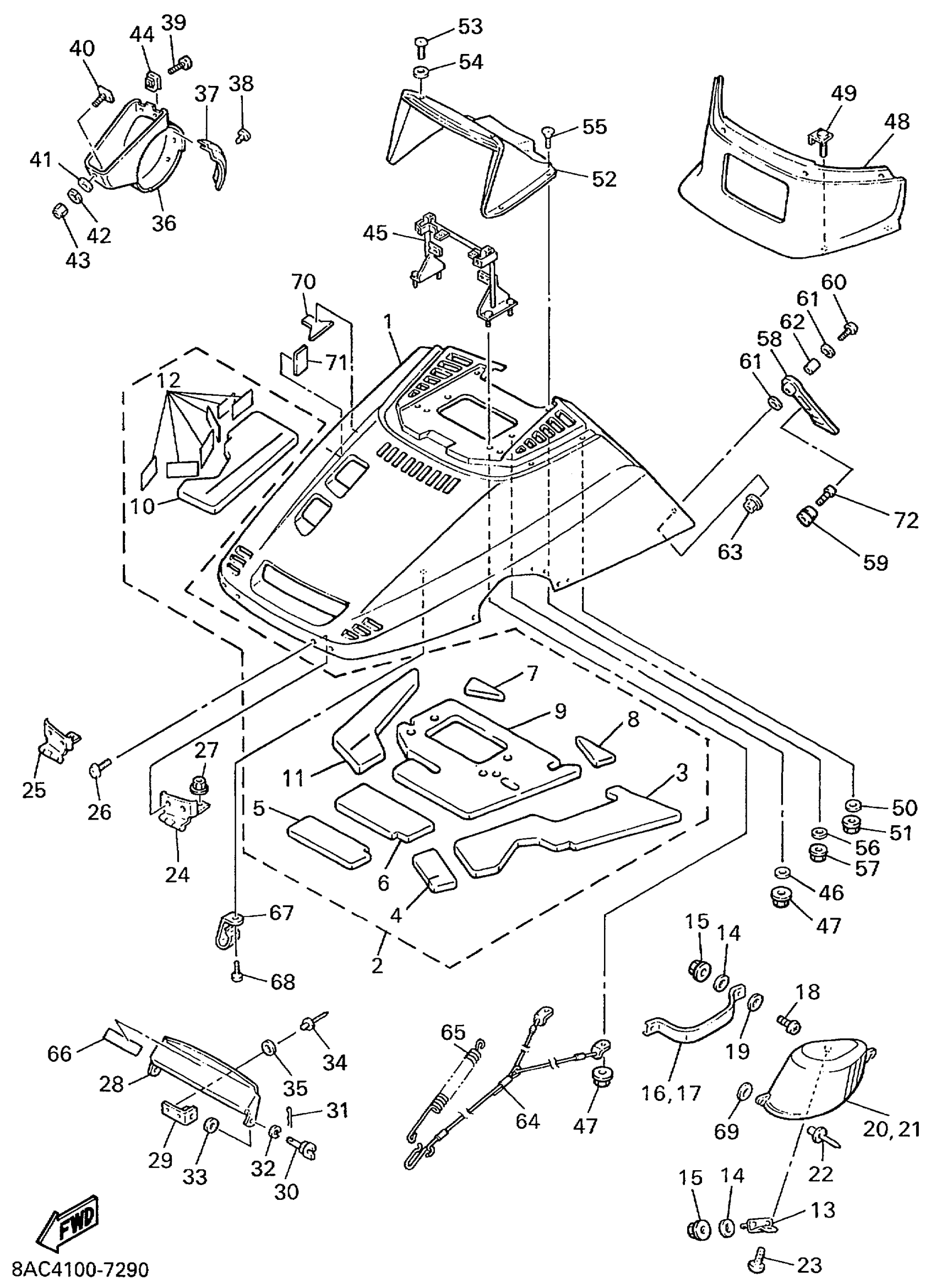

Yamaha VK540EC (VK540 III) 8AC6 1999 SHROUD Diagram

#

Description
Price

1

SHROUD

8AC-77111-10-00

Unavailable

2

LINING SET

8AT-W7726-01-00

Unavailable

3

LINING, SHROUD 1

8AT-77261-00-00

$33.89

4

LINING SHROUD 2

8AT-77262-00-00

$14.98

5

LINING SHROUD 3

8AT-77263-00-00

$11.15

6

LINING SHROUD 4

8AT-77264-00-00

$11.00

7

LINING SHROUD 5

8AT-77265-00-00

$5.49

8

LINING SHROUD 6

8AT-77266-00-00

$4.42

9

LINING SHROUD 7

8AT-77267-00-00

$42.48

10

LINING,SHROUD 8

8AT-77268-00-00

$41.26

11

LINING,SHROUD 9

8AT-77269-00-00

$17.82

12

TAPE 3

82M-7717G-01-00

Unavailable

13

STAY 1

8AT-77125-00-00

$15.75

14

WASHER(6TA)

92907-06200-00

$6.18

15

NUT, NYLON

95707-06300-00

$3.20

16

PLATE, BACK UP 1

8AT-77153-00-00

$33.89

17

PLATE, BACK UP 2

8AT-77154-00-00

$33.89

18

SCREW, PAN

98517-06020-00

$1.82

19

WASHER(6TA)

92907-06600-00

$0.78

20

HOOD 1

8AT-77121-00-00

$140.48

21

HOOD 2

8AT-77122-00-00

Unavailable

22

RIVET, BLIND

90267-48018-00

Unavailable

23

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

24

HINGE ASSY

83R-77140-00-00

$61.11

25

HINGE ASSY 2

83R-7714A-01-00

$54.97

26

SCREW, BIND (705)

98980-06016-00

$6.82

27

NUT, NYLON

95707-06300-00

$3.20

28

PLATE 1

83R-77185-00-00

$28.69

29

STAY 1

83R-77125-00-00

$5.80

30

BOLT, WING(8W1)

90122-05022-00

$6.15

31

PIN, HAIR 6474123500

90468-10003-00

$2.45

32

WASHER(3SX)

92907-05100-00

$6.18

33

. WASHER, PLATE

90202-05088-00

$6.33

34

RIVET, BLIND (8K2)

90267-48079-00

Unavailable

35

WASHER, PLATE (34L)

90201-043H7-00

$2.57

36

DUCT

83R-77194-00-00

$143.43

37

BUSH, RUBBER 1

83R-77515-00-00

$14.89

38

RIVET(81E)

90269-05055-00

$7.02

39

SCREW, BINDING

98907-06014-00

$5.60

40

PLATE 2

83R-77186-00-00

$8.55

41

WASHER, PLATE

90201-06557-00

$2.75

42

WASHER, SPRING

92907-06100-00

$1.00

43

NUT(6TA)

95317-06600-00

$2.69

44

NUT

83R-77144-00-00

$6.20

45

SRAY, FAIRING

83R-77241-00-00

$128.34

46

WASHER, PLATE

90201-06557-00

$2.75

47

NUT, NYLON

95707-06300-00

$3.20

48

FAIRING

8AC-77231-10-00

Unavailable

49

BOLT, WIND SHIELD

83R-77212-00-00

$5.46

50

WASHER, PLATE

90201-06557-00

$2.75

51

NUT, NYLON

95707-06300-00

$3.20

52

COVER, HEADLIGHT

86V-77251-01-00

$140.05

53

SCREW, BINDING

98907-05012-00

$6.18

54

WASHER, PLATE (214-27417-00)

90201-06042-00

$6.58

55

SCREW, FLAT

98707-05016-00

$5.60

56

WASHER, PLATE 8067717800

90201-05029-00

$5.12

57

NUT, NYLON

95707-05300-00

$2.74

58

BODY, LATCH 1

8V0-77171-00-00

$18.37

59

SCREW, BINDING

98907-06025-00

$6.18

60

WASHER, PLATE

90201-06557-00

$2.75

61

COLLAR (420)

90387-06241-00

$6.18

62

NUT, FLANGE(4MV)

95707-06500-00

$0.78

63

STOPPER, SHROUD

83R-77118-01-00

$29.28

64

CLAMP,ROD

838-77159-00-00

$3.49

65

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

66

CLAMP(83R)

90461-08113-00

$10.48

67

SCREW, TRUSS TAP.

97707-50014-00

$6.18

68

WASHER, PLATE (34L)

90201-043H7-00

$2.57

69

SHIELD, HEAT

8AT-2199H-00-00

$3.62

70

DAMPER, SHROUD

8AT-77196-00-00

$1.46

71

. HOLDER, LATCH

8M6-77175-00-00

$12.72

72

SCREW, BINDING

98907-06035-00

$7.48
