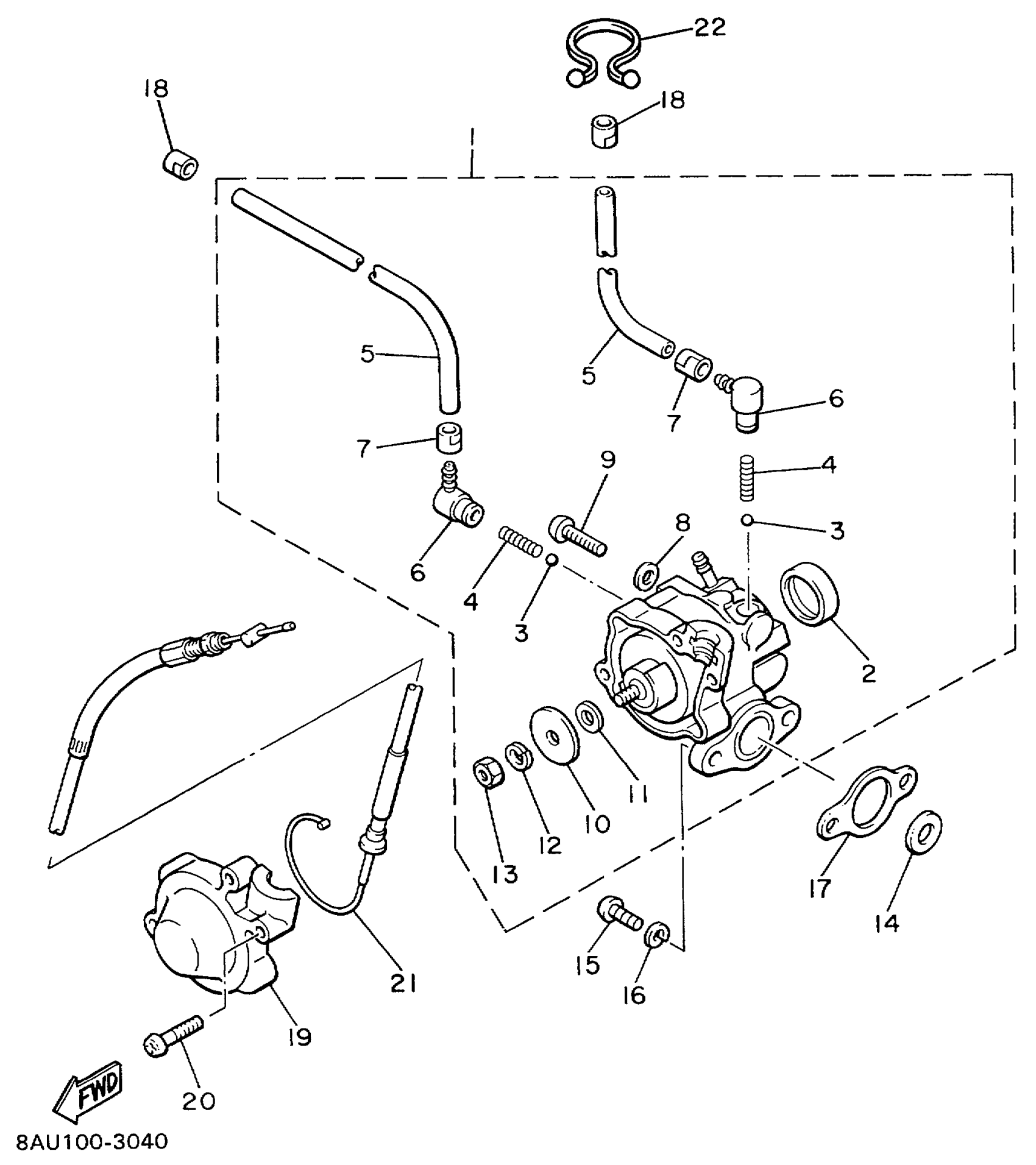

Yamaha VK540EC (VK540 III) 8AC6 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8AT-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.90

4

SPRING, CHECK BALL (451)

90501-02217-00

$5.53

5

HOSE

91A30-03052-00

Unavailable

6

NOZZLE

353-13552-01-00

$8.31

7

CLIP (2A6)

90468-02025-00

$6.67

8

GASKET 137131870000

90430-04004-00

$6.53

9

SCREW, BINDING

98907-04020-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-10

$6.12

12

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

13

NUT, HEXAGON (663)

95380-05600-00

Unavailable

14

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

15

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.49

16

WASHER(3SX)

92907-05100-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

CLIP (2A6)

90468-02025-00

$6.67

19

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

20

SCREW, PAN HEAD

98507-04018-00

Unavailable

21

PUMP CABLE ASSY

8L8-26320-05-00

Unavailable

22

CLAMP (3Y2)

90464-16039-00

Unavailable
