2010 Kawasaki Versys® Water Pump Diagram

← All diagrams

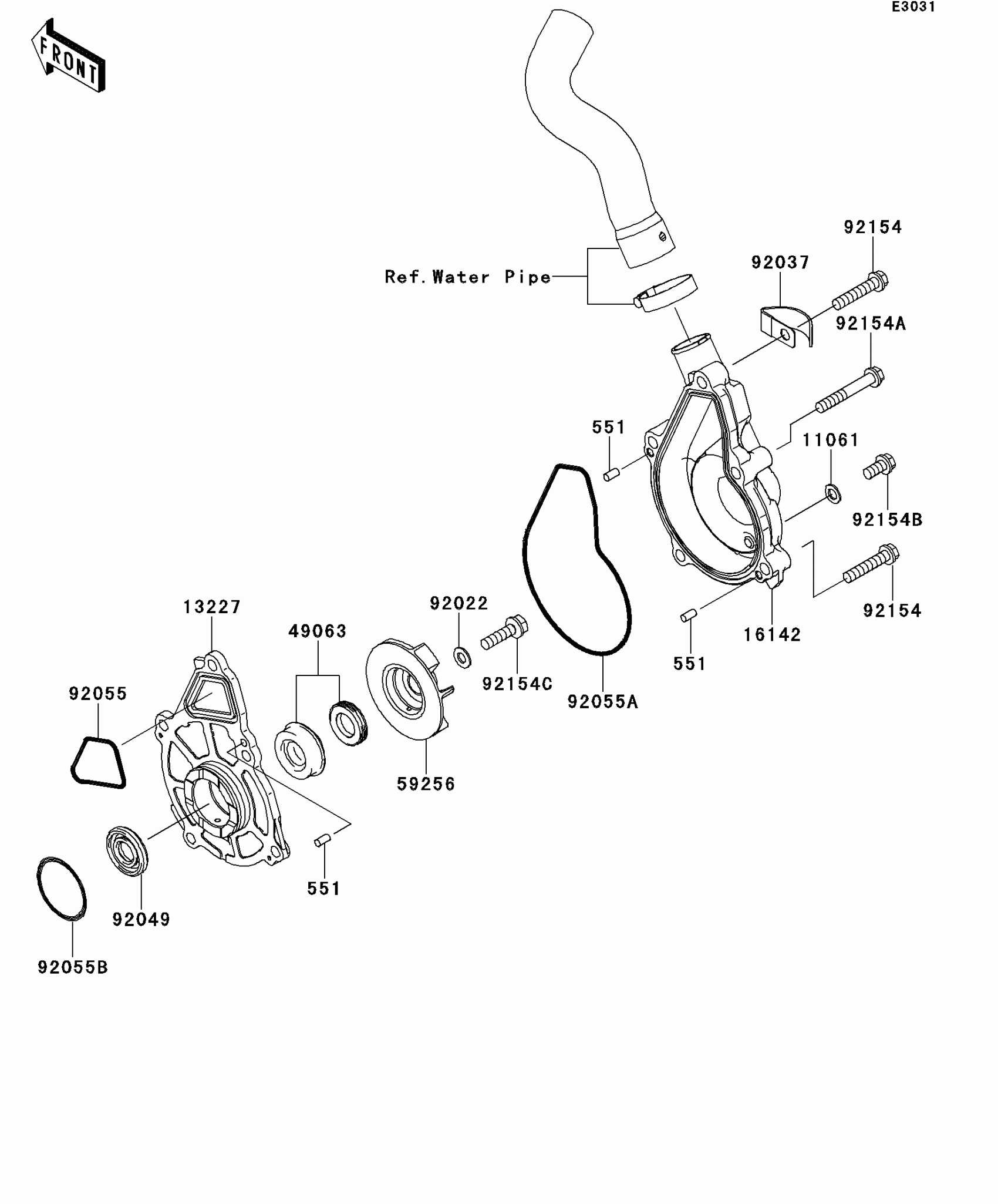

Find the part on the Water Pump diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0107

1

$2.12

In stock

13227

HOUSING

13227-0012

1

$49.96

In stock

16142

COVER-PUMP

16142-0046

1

$66.94

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0007

1

$31.06

In stock

92002

BOLT,6X22

92002-1154

1

$3.72

In stock

92022

1

$3.13

In stock

92037

CLAMP

92037-1680

1

$2.15

In stock

92049

SEAL-OIL,12X28.55X5

92049-0115

1
Out of stock

92055

RING-O,CASE-HOUSING

92055-0082

1

$3.11

In stock

92055A

1

$6.90

In stock

92055B

RING-O,33.2MM

92055-1155

1

$11.45

In stock

92151

BOLT,6X40

92151-1131

1

$3.87

In stock

92151A

BOLT,6X12

92151-1133

1
Out of stock

132

1

$1.81

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
