2010 Kawasaki Versys® Camshaft /Tensioner Diagram

← All diagrams

Find the part on the Camshaft /Tensioner diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

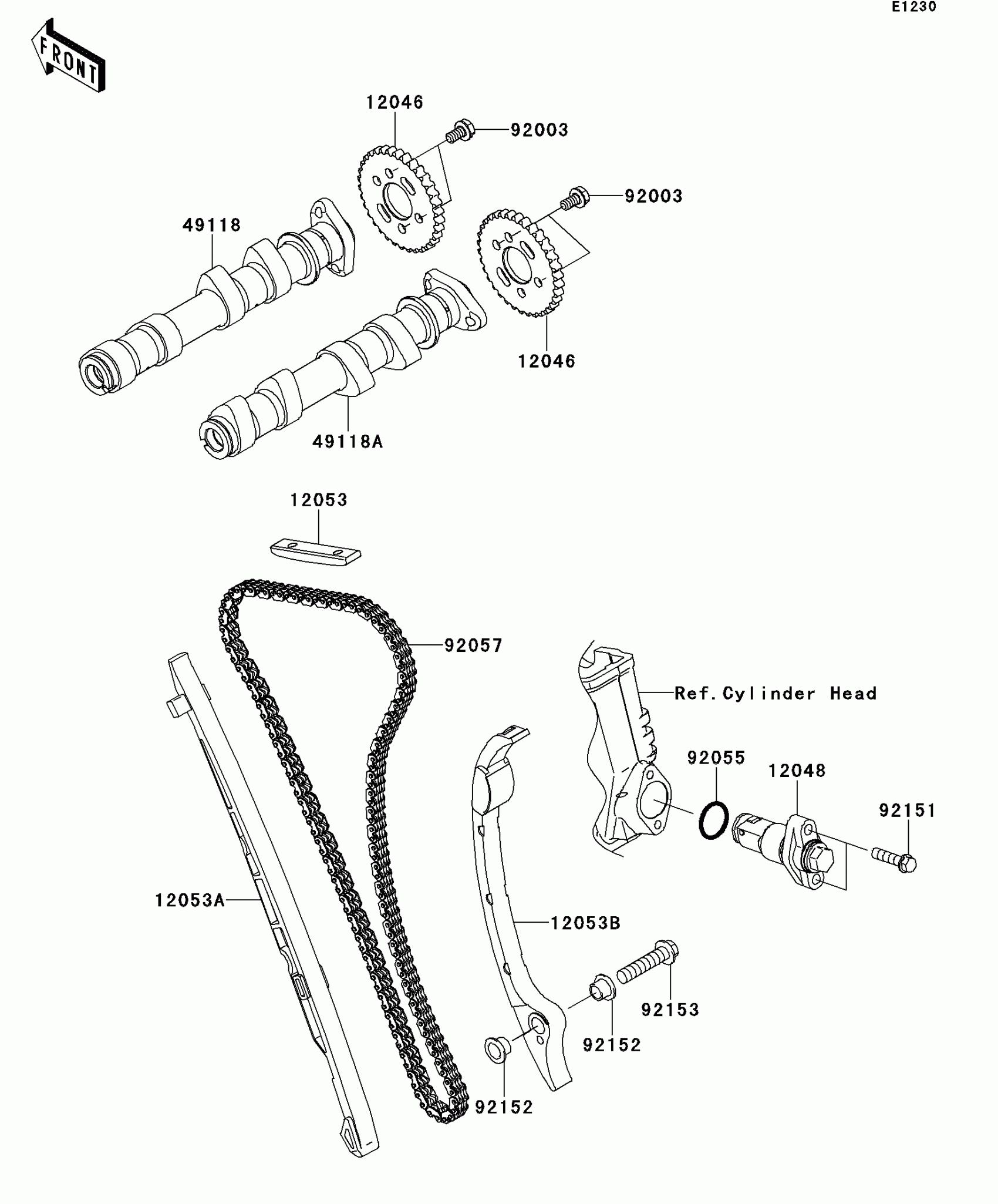

2010 Kawasaki Versys® Camshaft /Tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,CAM,34T

12046-0041

1
Out of stock

12048

TENSIONER-ASSY

12048-0038

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-0051

1
Out of stock

12053A

GUIDE-CHAIN,FR

12053-0059

1
Out of stock

12053B

GUIDE-CHAIN,RR

12053-0075

1
Out of stock

49118

CAMSHAFT-COMP,EX

49118-0075

1
Out of stock

49118A

CAMSHAFT-COMP,IN

49118-0076

1
Out of stock

92003

BOLT,FLANGED,6X11

92003-208

1
Out of stock

92055

RING-O,18.8X1.9

92055-086

1
Out of stock

92057

CHAIN,CAM,92RH 2015-134M

92057-0100

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92152

COLLAR,8.2X10.6X6.9

92152-0306

1
Out of stock

92153

BOLT,FLANGED-SMALL,8X35

92153-1394

1
Out of stock
← Balancer Crankcase →
