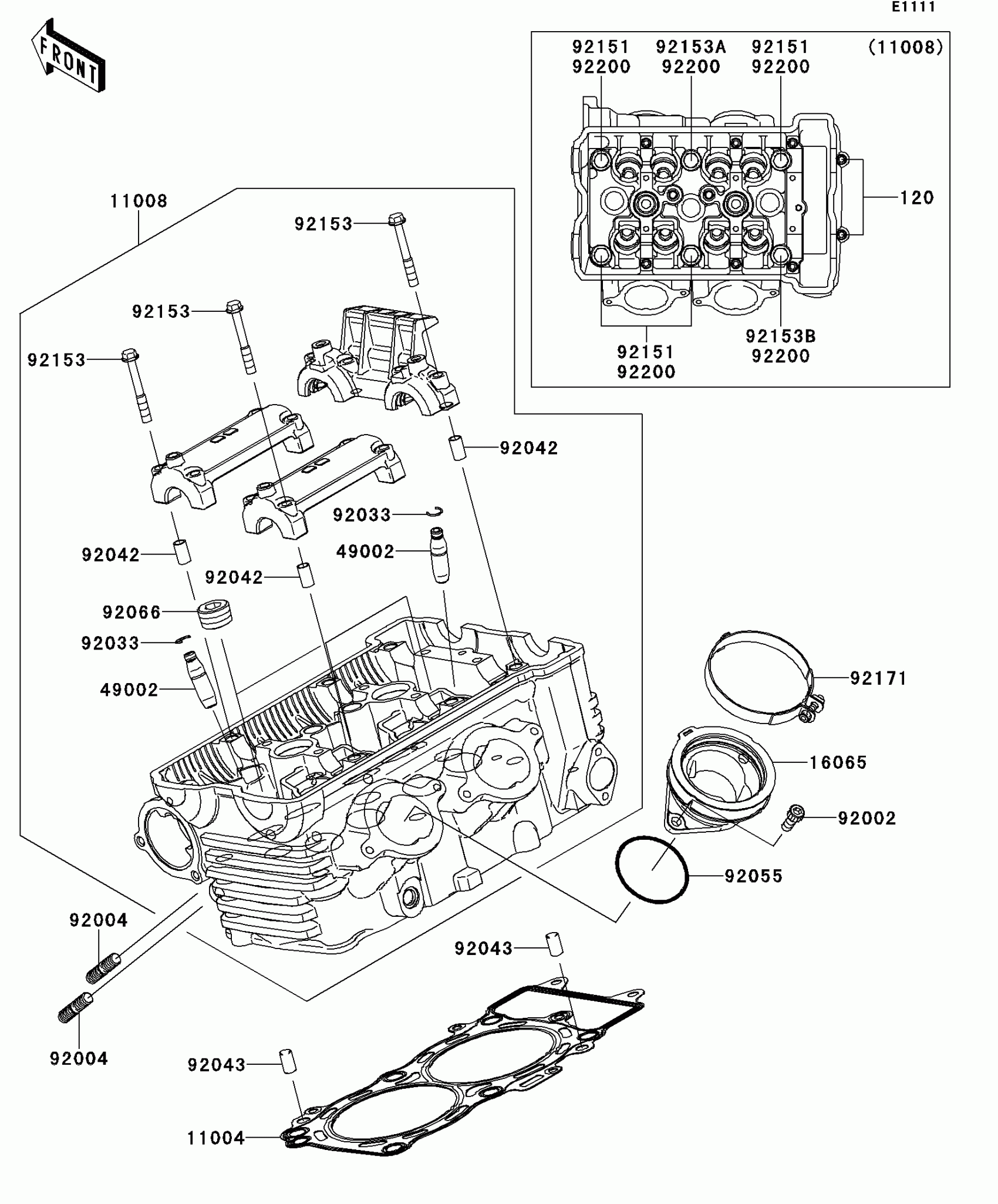

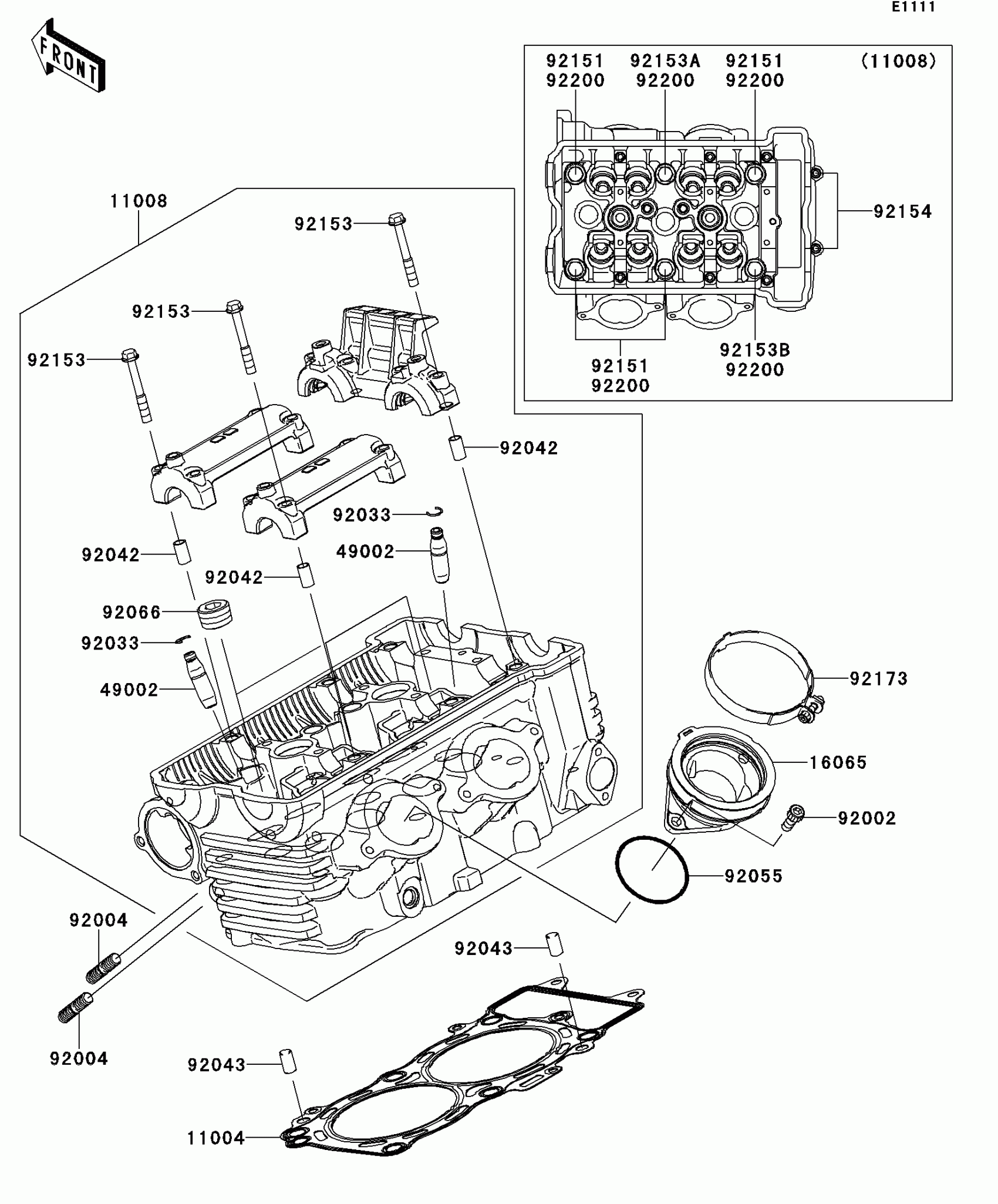

Kawasaki Versys® Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0064

$69.25

11008

HEAD-COMP-CYLINDER

11008-0107

$1,854.44

16065

HOLDER,THROTTLE BODY

16065-0024

$37.87

49002

GUIDE-VALVE

49002-1116

Unavailable

92002

BOLT,6X16

92002-1143

$2.99

92004

STUD,8X22

92004-0025

$2.95

92033

RING-SNAP

92033-1247

$2.98

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8X14

92043-1567

$1.62

92055

RING-O,47X1.9

92055-1600

$7.00

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92151

BOLT,10X158

92151-1152

$13.47

92153

BOLT,6X45

92153-0339

$2.30

92153A

BOLT,FLANGED-SMALL,10X176

92153-0972

$14.39

92153B

BOLT,FLANGED-SMALL,10X80

92153-1321

$14.39

92171

CLAMP

92171-1089

$13.34

92200

WASHER,10.5X19X2.3

92200-0363

$2.98

120

BOLT-SOCKET,6X30

120CD0630

$4.24
