2010 Kawasaki Versys® Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

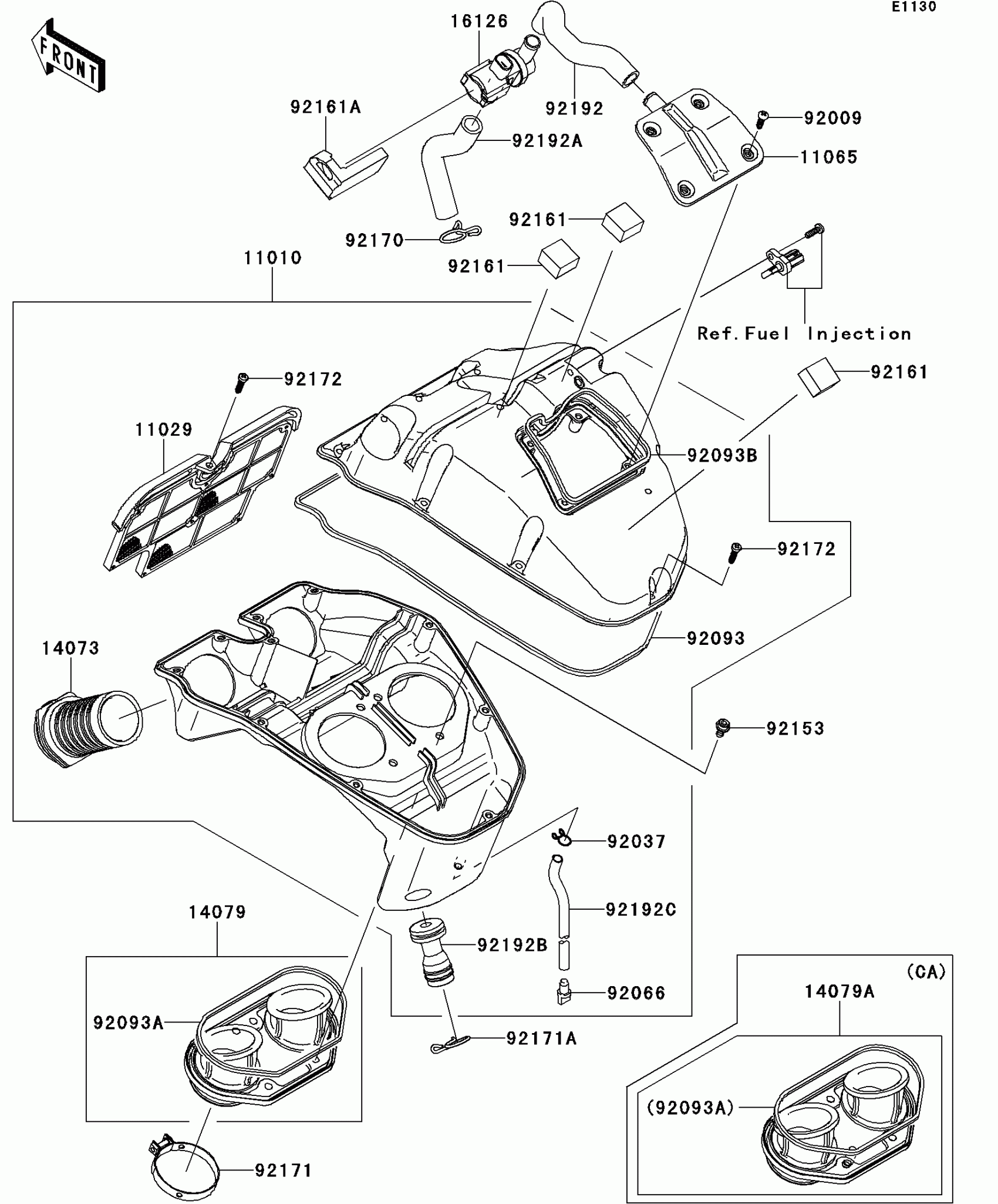

2010 Kawasaki Versys® Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0153

1

$319.74

In stock

11029

1

$48.89

In stock

11065

CAP,UPPER CASE

11065-0120

1

$24.81

In stock

14073

DUCT

14073-0110

1

$30.67

In stock

14079

HOLDER-ASSY

14079-0017

1

$65.02

In stock

14079A

HOLDER-ASSY

14079-0021

1

$60.11

In stock

16126

VALVE,AIR SWITING

16126-0019

1

$90.36

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92093

SEAL,L=1080

92093-0045

1

$14.93

In stock

92093A

SEAL

92093-0046

1

$7.90

In stock

92093B

SEAL,L=368

92093-0048

1

$7.90

In stock

92153

BOLT,SOCKET,6X12

92153-0759

1
Out of stock

92161

DAMPER,T=15

92161-0302

1

$3.66

In stock

92161A

DAMPER

92161-0309

1

$13.81

In stock

92170

CLAMP

92170-1017

1

$3.72

In stock

92171

CLAMP

92171-0314

1

$3.12

In stock

92171A

CLAMP

92171-0435

1

$3.07

In stock

92172

SCREW,TAPPING,5X20

92172-0009

1

$2.29

In stock

92192

TUBE,ASV-A/C

92192-0231

1
Out of stock

92192A

TUBE,HEAD-ASV

92192-0232

1
Out of stock

92192B

TUBE,BREATHER

92192-0264

1
Out of stock

92192C

TUBE,DRAIN,6X9X280

92192-0325

1
Out of stock
