2010 Kawasaki Versys® Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

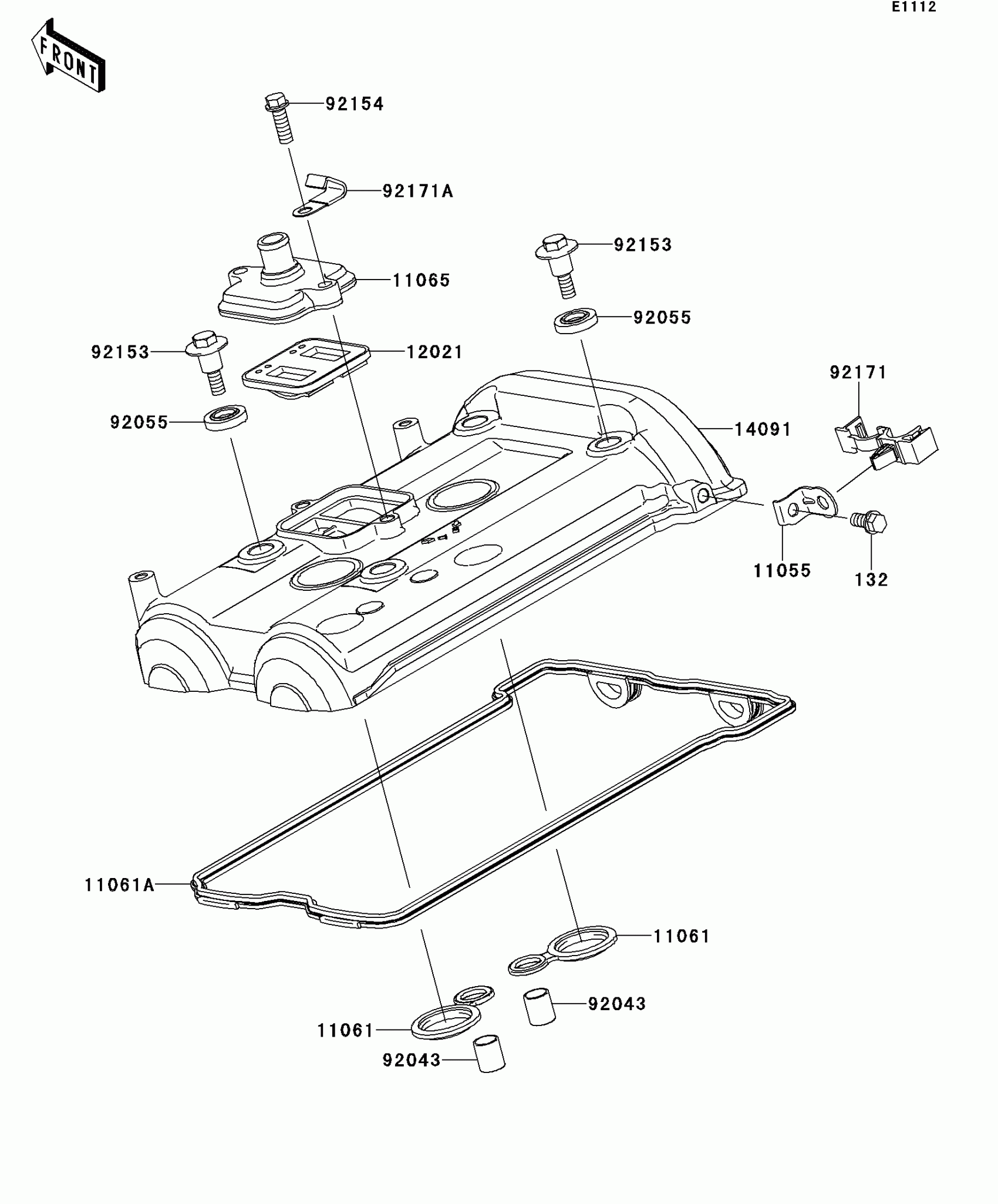

2010 Kawasaki Versys® Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET

11054-0869

1

$9.15

In stock

11061

1

$8.95

In stock

11061A

GASKET,HEAD COVER

11061-0170

1

$30.35

In stock

11065

CAP

11065-0208

1

$40.96

In stock

12021

VALVE-ASSY-REED

12021-1130

1

$80.81

In stock

14091

COVER,HEAD

14091-0719

1

$152.26

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

1

$7.94

In stock

92153

BOLT,HEAD COVER

92153-0793

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0789

1

$4.75

In stock

92171A

CLAMP

92171-0813

1

$8.46

In stock

132

1

$3.24

In stock

132A

1

$1.73

In stock
