2010 Kawasaki Versys® Cylinder/piston Diagram

← All diagrams

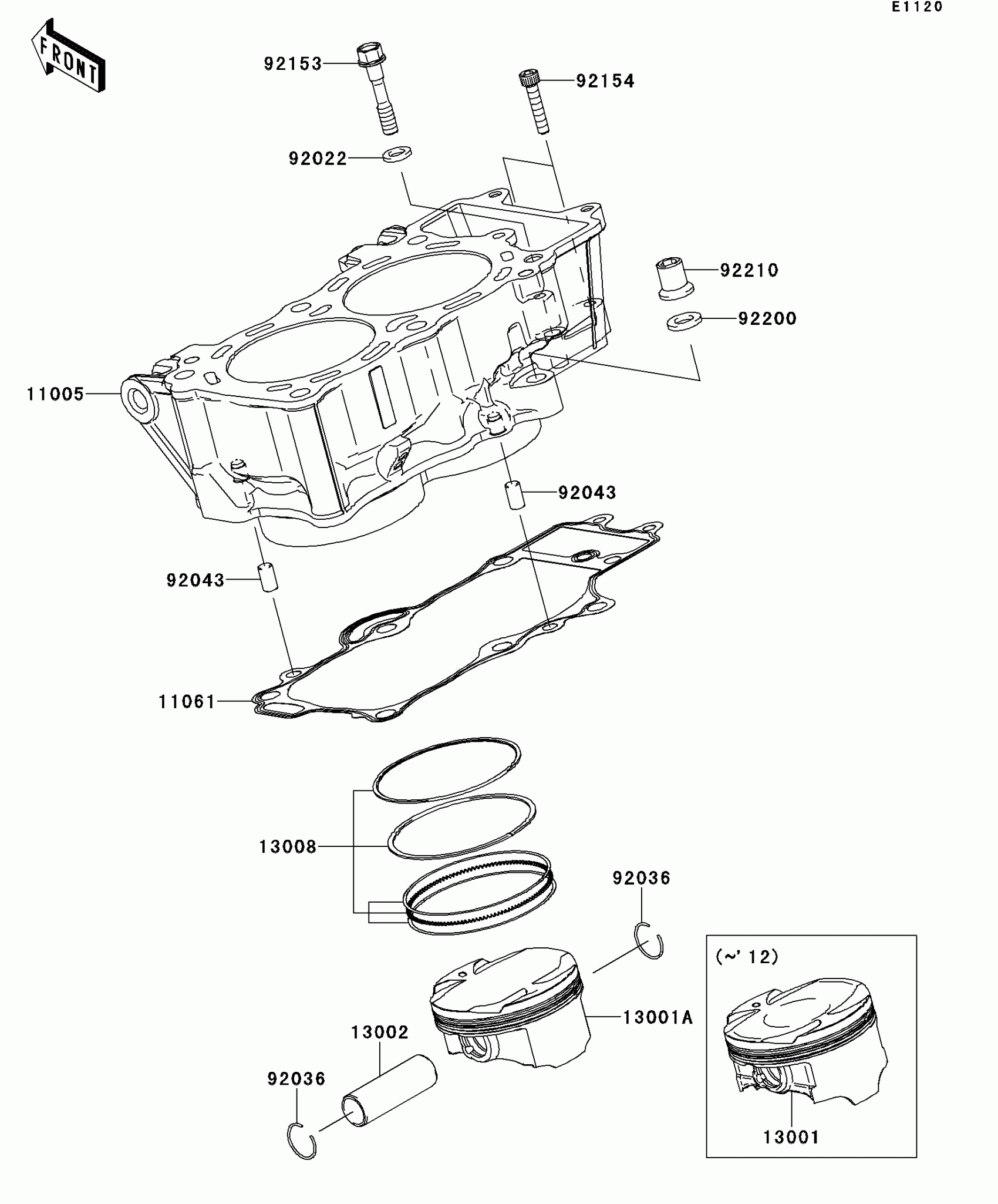

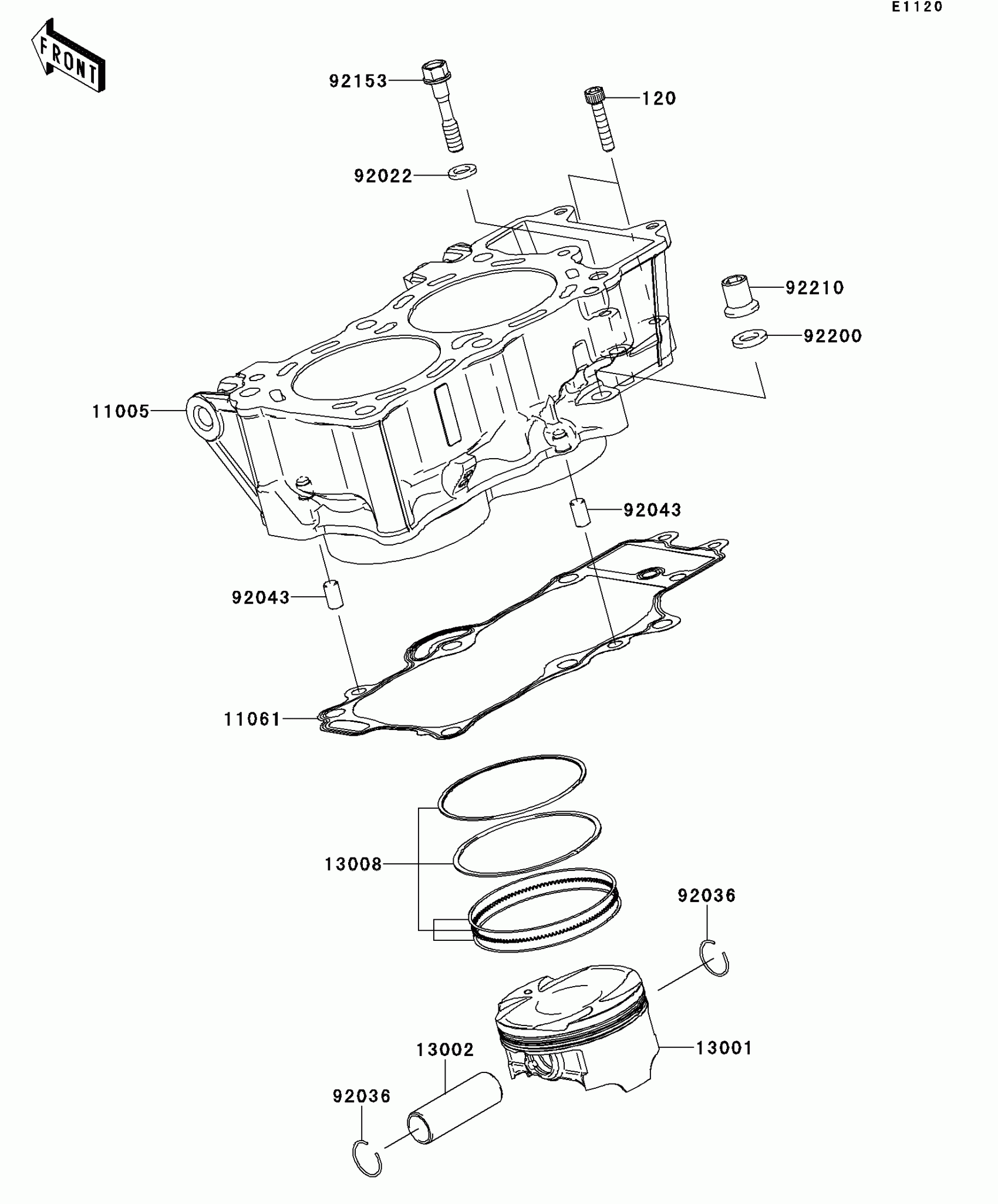

Find the part on the Cylinder/piston diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0082

1

$1,372.40

In stock

11061

1

$30.35

In stock

13001

PISTON-ENGINE

13001-0087

1

$90.66

In stock

13002

PIN-PISTON

13002-0007

1

$18.29

In stock

13008

RING-SET-PISTON

13008-1196

1

$60.93

In stock

92022

WASHER,9X15.5X2

92022-1401

1

$1.24

In stock

92036

1

$0.53

In stock

92043

PIN,8X14

92043-1567

1

$1.88

In stock

92153

BOLT,8X43

92153-1011

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock

92210

NUT

92210-0223

1
Out of stock

120

BOLT-SOCKET,6X30

120CD0630

1

$4.24

In stock
