2010 Kawasaki Versys® Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

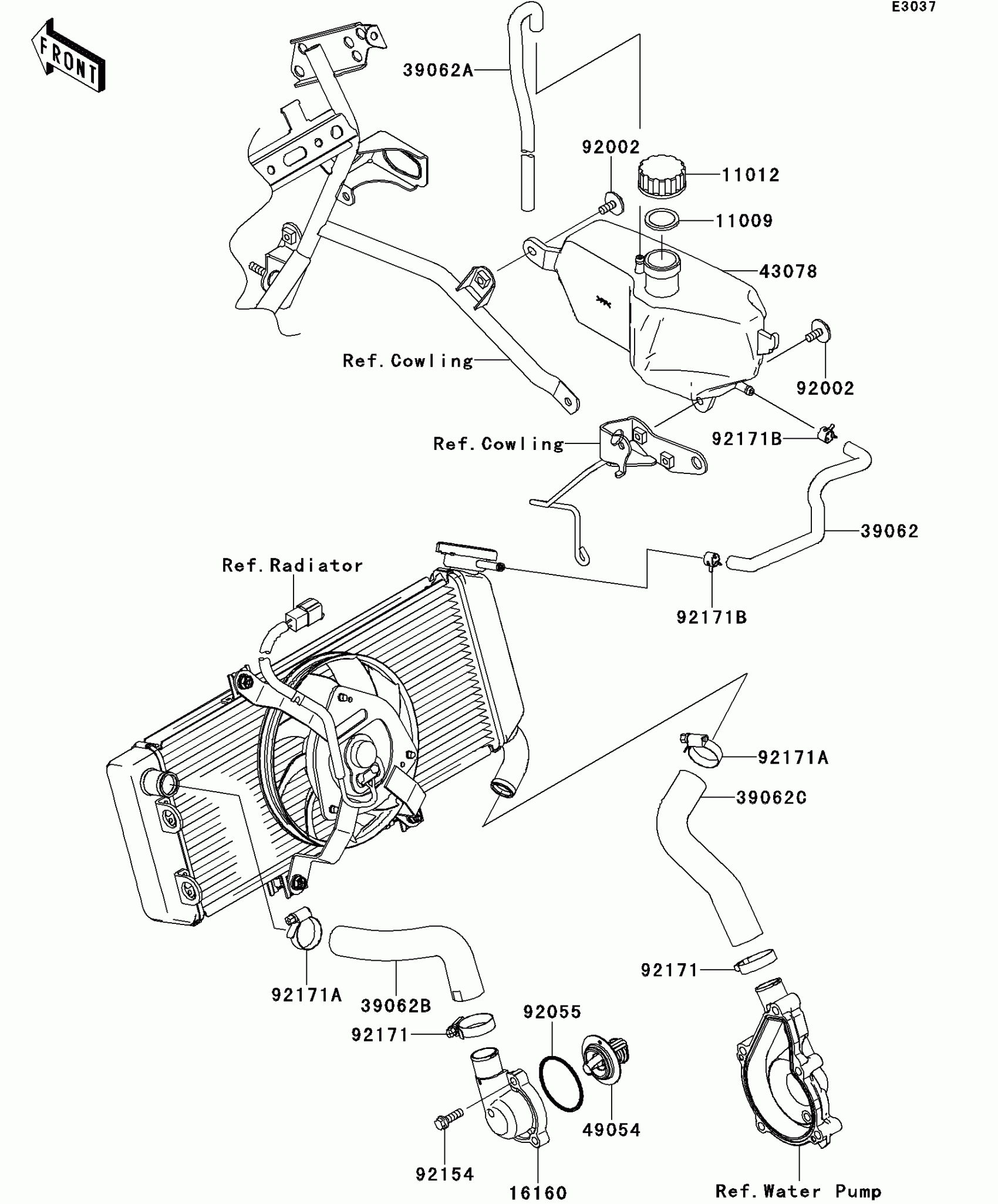

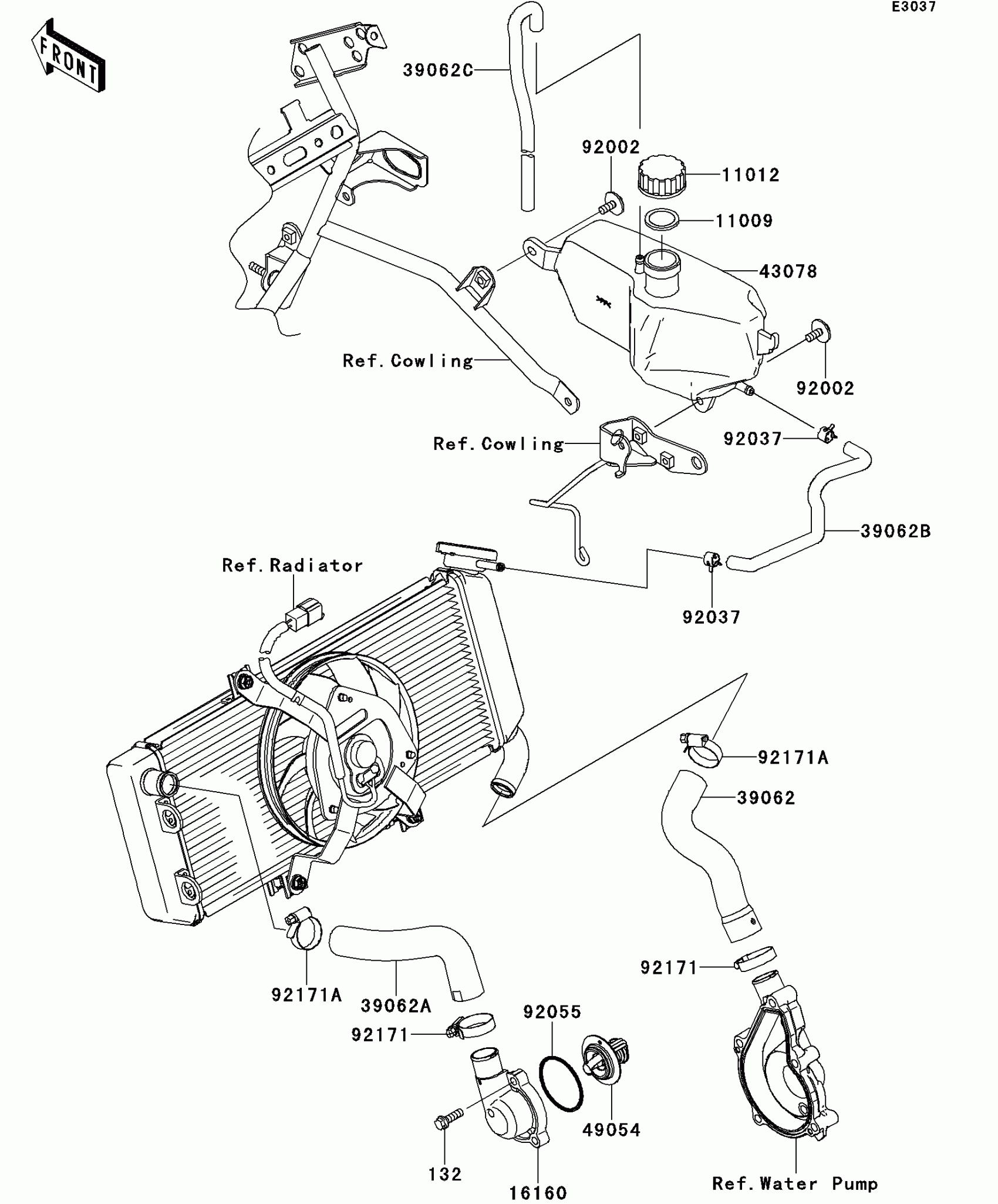

2010 Kawasaki Versys® Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

16160

BODY,THERMOSTAT

16160-0118

1
Out of stock

39062

1

$17.61

In stock

39062A

1

$15.92

In stock

39062B

1

$7.22

In stock

39062C

1

$11.58

In stock

43078

RESERVOIR

43078-0065

1

$47.89

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92002

BOLT,6X16

92002-1188

1

$3.68

In stock

92037

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92055

RING-O,44.7X2.4

92055-1279

1

$5.84

In stock

92171

CLAMP

92171-0261

1

$13.29

In stock

92171A

CLAMP

92171-0337

1

$7.84

In stock

132

1

$0.94

In stock
