2010 Kawasaki Versys® Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

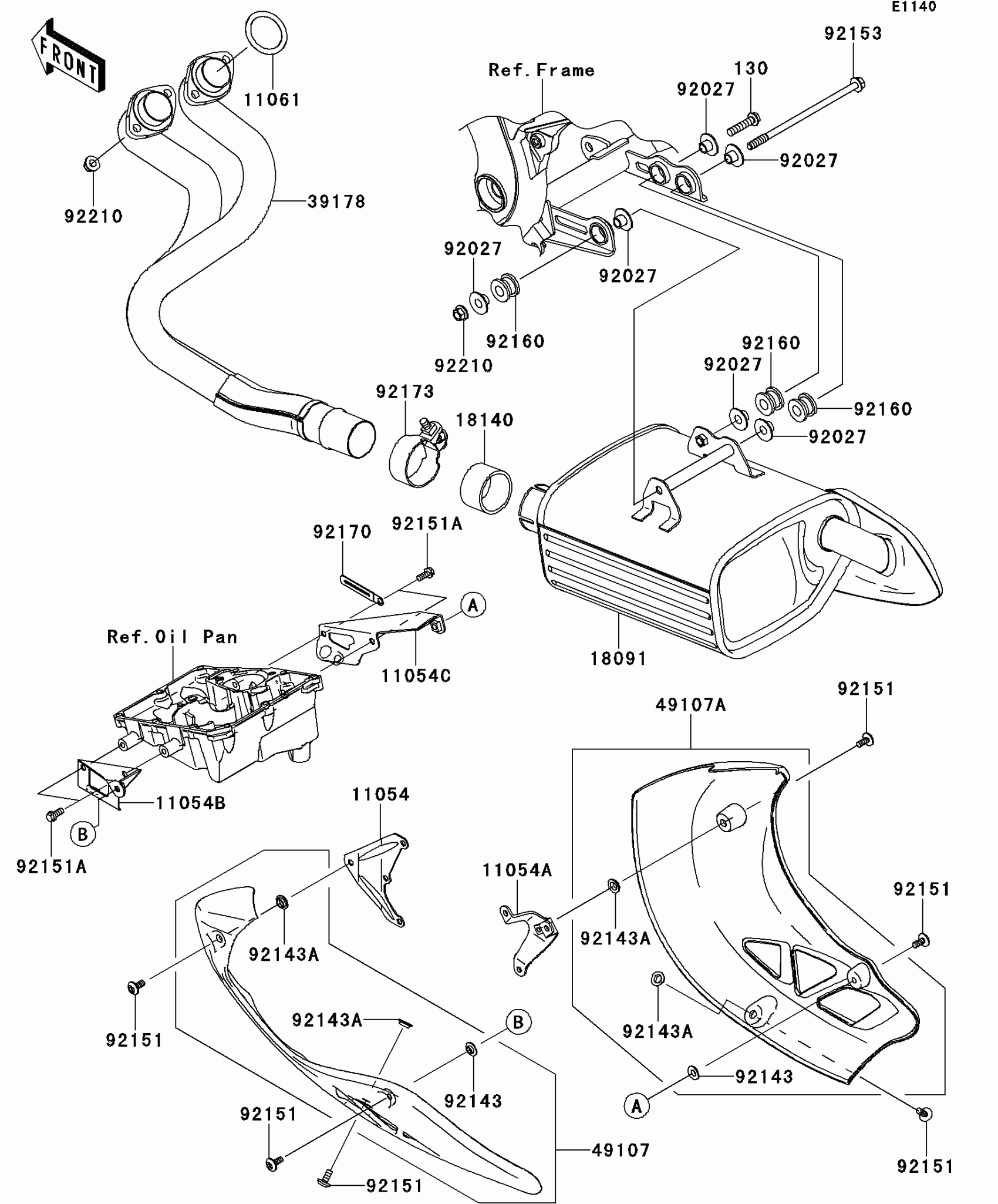

2010 Kawasaki Versys® Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

1

$9.37

In stock

11054A

1

$11.42

In stock

11054B

1

$16.66

In stock

11054C

1

$36.14

In stock

11061

GASKET,EXHAUST PIPE

11061-0278

1

$8.47

In stock

18091

BODY-COMP-MUFFLER

18091-0643

1

$966.83

In stock

18140

GASKET-MUFFLER

18140-0002

1

$11.29

In stock

39178

1

$584.97

In stock

49107

1

$96.86

In stock

49107A

1

$96.86

In stock

92027

1

$8.16

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92143A

COLLAR

92143-1196

1

$3.72

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92151A

BOLT,FLANGED,6X14

92151-1755

1

$2.03

In stock

92153

BOLT,FLANGED,8X165

92153-1357

1
Out of stock

92160

1

$4.37

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92173

CLAMP

92173-0110

1

$24.76

In stock

92210

NUT,8MM

92210-1114

1
Out of stock

130

BOLT-FLANGED,8X35

130CD0835

1

$2.37

In stock
