2010 Kawasaki Versys® Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

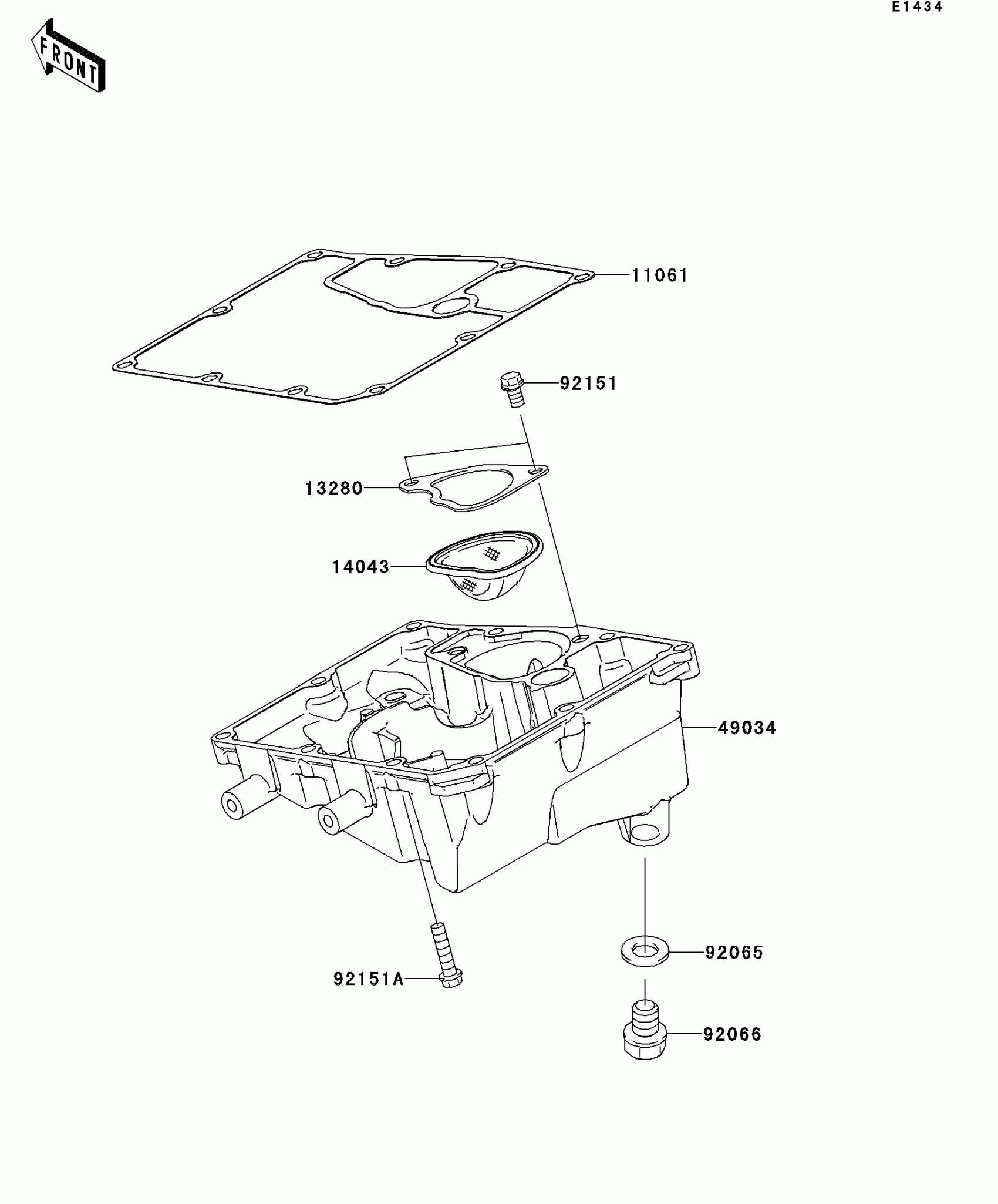

2010 Kawasaki Versys® Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-0167

1

$11.91

In stock

13280

HOLDER,OIL FILTER

13280-0134

1

$3.66

In stock

14043

1

$10.46

In stock

49034

PAN-OIL

49034-0037

1
Out of stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

1

$4.88

In stock

92151

1

$1.95

In stock

92151A

1

$2.06

In stock
