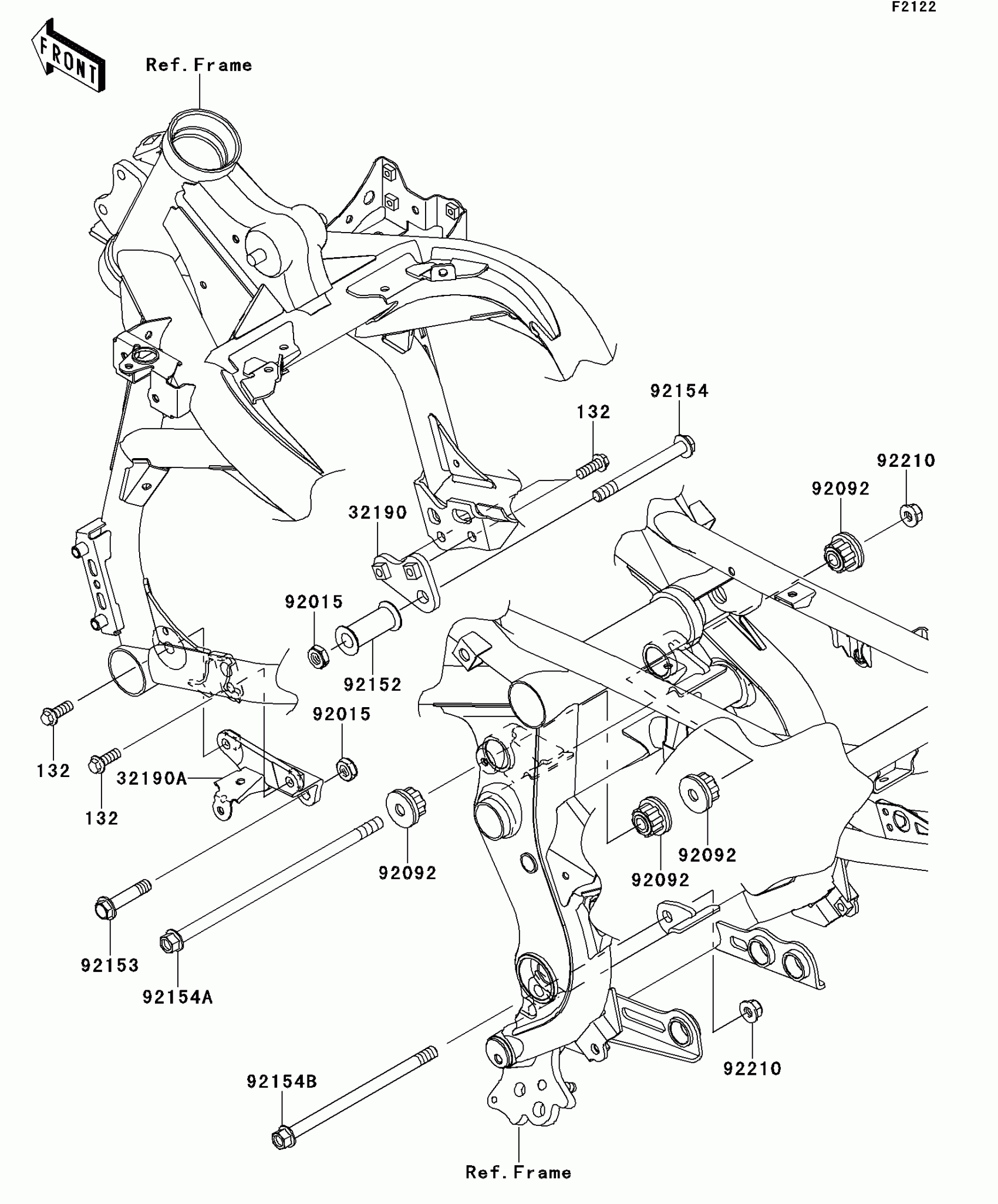

2010 Kawasaki Versys® Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

BRACKET-ENGINE,RH

32190-0189

1

$13.54

In stock

32190A

BRACKET-ENGINE,LH

32190-0470

1

$54.94

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92092

BUSHING-RUBBER

92092-0021

1

$12.44

In stock

92152

COLLAR,11X26X50.8

92152-0740

1

$13.15

In stock

92153

BOLT,FLANGED,10X47

92153-0823

1
Out of stock

92154

BOLT,FLANGED,10X100

92154-0083

1

$11.68

In stock

92154A

BOLT,FLANGED,10X237

92154-0138

1

$30.27

In stock

92154B

BOLT,FLANGED,10X170

92154-0373

1

$12.56

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

132

1

$2.20

In stock
