1973 Yamaha TX500 (TX500) Kick Starter Diagram

← All diagrams

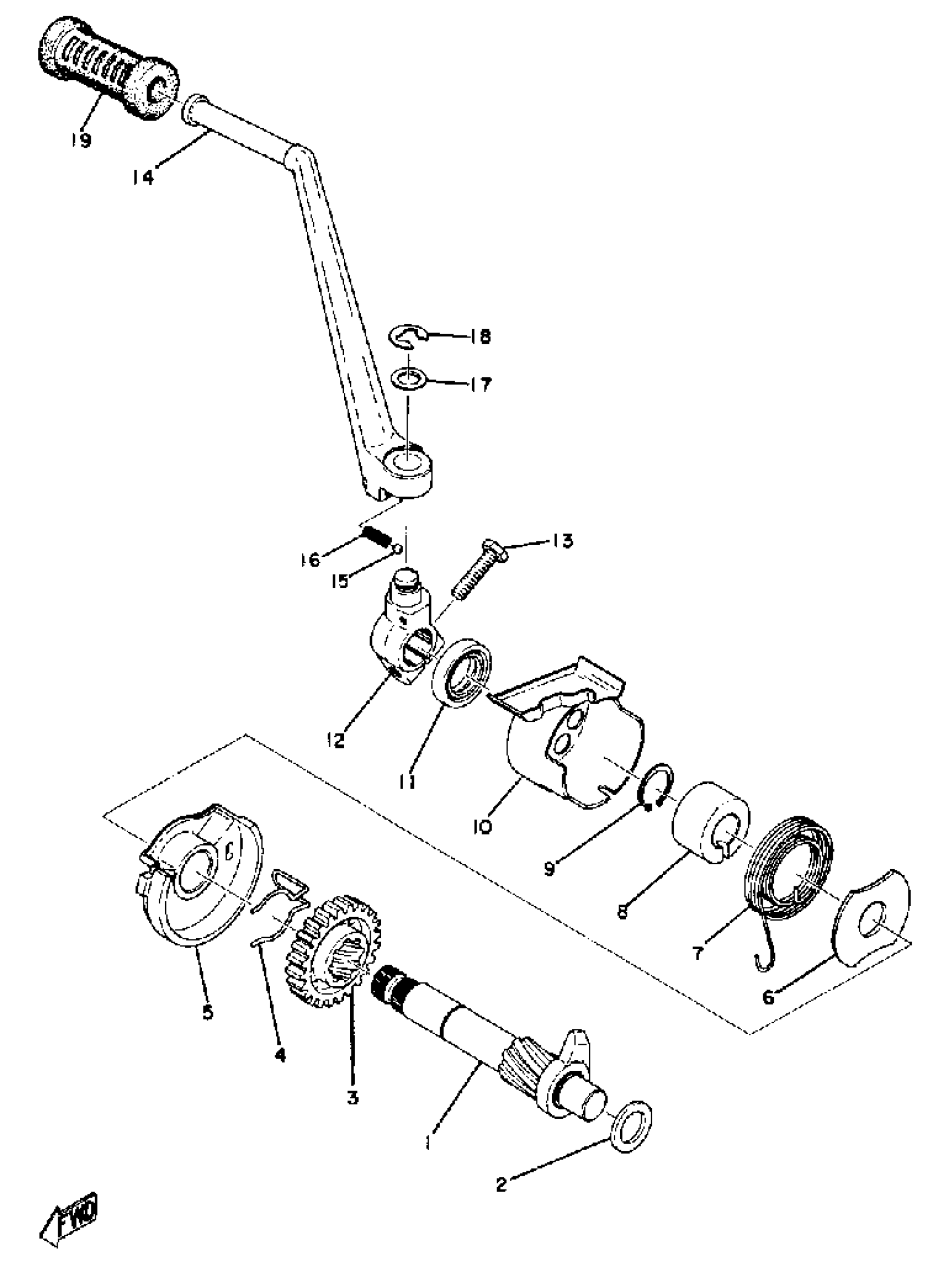

Find the part on the Kick Starter diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

(371-15660-00-00)

1
Out of stock

2

COLLAR

(90387-17129-00)

1
Out of stock

3

GEAR, KICK

371-15641-01-00

1
Out of stock

4

CLIP

(371-15687-00-00)

1
Out of stock

5

GUIDE, SPRING

(371-15664-00-00)

1
Out of stock

6

COVER,SPRING

278-15676-00-00

1
Out of stock

7

SPRING TORSION 278156650000

90508-30051-00

1
Out of stock

8

SPACER

371-15666-00-00

1
Out of stock

9

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

10

COVER, SPRING

(371-15646-00-00)

1
Out of stock

11

OIL SEAL (20X30X7-371)

93102-20108-00

1

$9.17

In stock

12

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

13

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

14

CRANK,KICK

278-15611-00-00

1
Out of stock

15

BALL (12R)

93507-32031-00

1
Out of stock

16

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

17

WASHER PLATE 278156130000

90201-15234-00

—

$6.78

In stock

18

CIRCLIP

99006-10600-00

—

$6.91

In stock

19

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock
