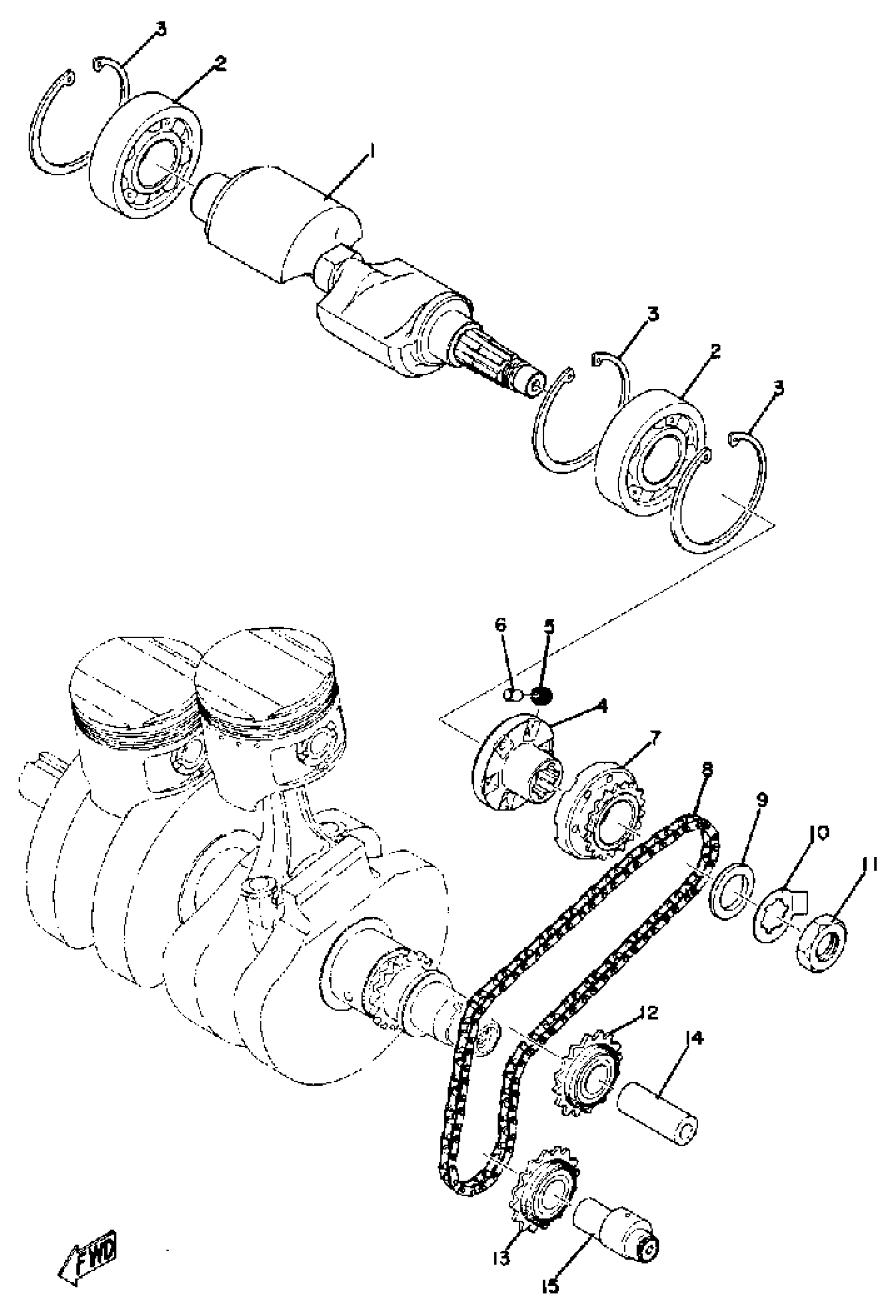

Find the part on the Crank Balancer diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WEIGHT 1

(371-11454-02-00)

1
Out of stock

2

BEARING

93306-30571-00

1
Out of stock

3

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

4

BOSS, BUFFER

(371-11496-01-00)

1
Out of stock

5

1

$7.25

In stock

6

PIN, DOWEL

93605-10090-00

1

$5.41

In stock

7

SPROCKET, WHEEL

(371-11458-02-00)

1
Out of stock

8

CAM CHAIN

94510-03062-00

1
Out of stock

9

SPACER

90560-20038-00

1
Out of stock

10

WASHER, LOCK

(90215-16046-00)

1
Out of stock

11

NUT,SPEC'L SHAPE

90179-16018-00

1

$11.26

In stock

12

SPROCKET, IDLE 1

(371-11437-00-00)

1
Out of stock

13

SPROCKET, IDLE 2

371-11438-02-00

1
Out of stock

14

SHAFT 1

371-11455-00-00

1
Out of stock

15

SHAFT 2

(371-11465-00-00)

1
Out of stock
