1973 Yamaha TX500 (TX500) Exhaust Diagram

← All diagrams

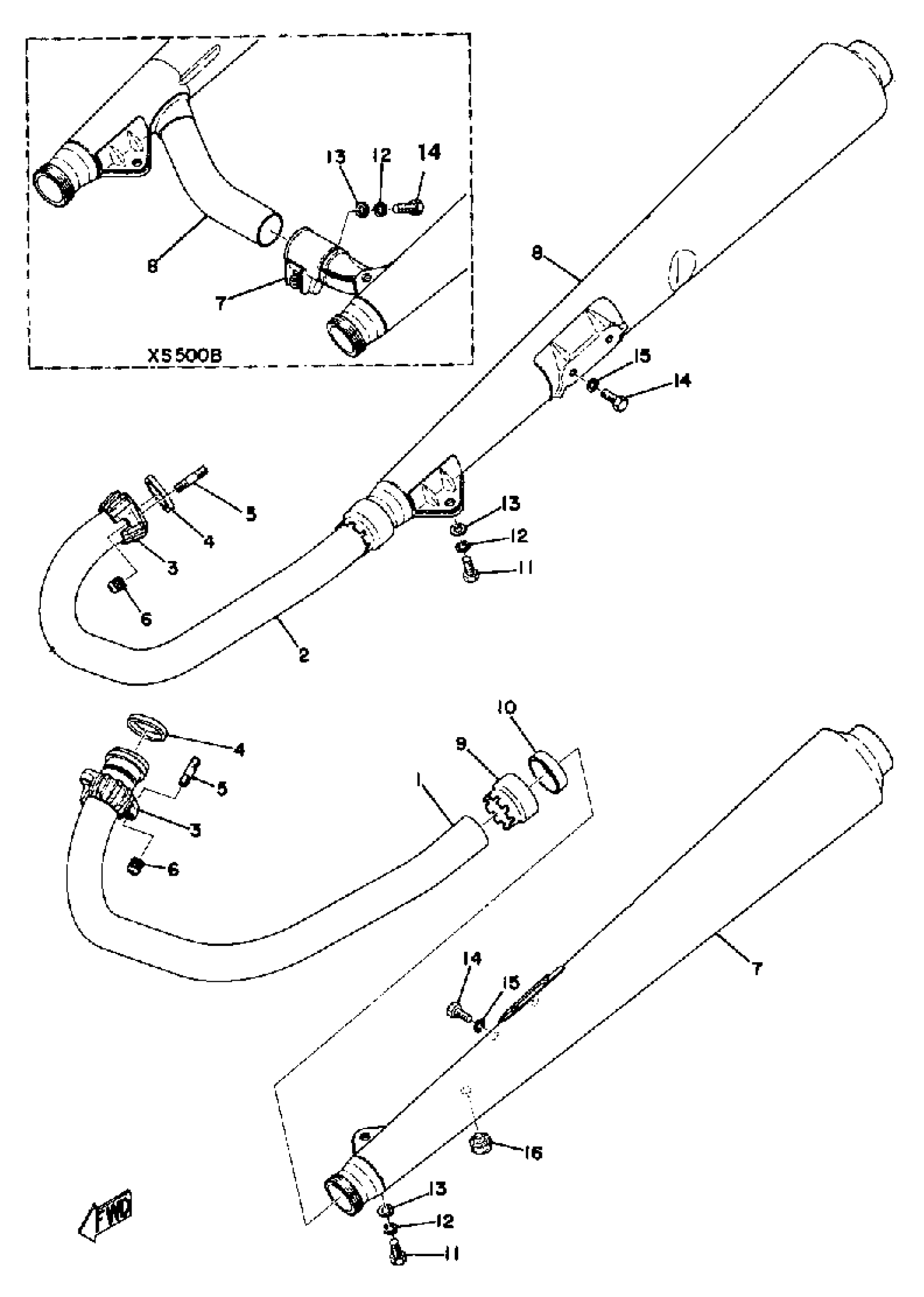

Find the part on the Exhaust diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

(371-14611-02-00)

1
Out of stock

2

PIPE, EXHAUST R

(371-14621-02-00)

1
Out of stock

3

NUT, RING (371-14612-02)

371-14612-03-00

1
Out of stock

4

GASKET, EXST PIPE

371-14613-00-00

1
Out of stock

5

BOLT, STUD (17W)

90116-08408-00

—

$15.12

In stock

6

NUT (371)

90179-08004-00

1
Out of stock

7

MUFFLER L

371-14711-04-00

1
Out of stock

7

MUFFLER L

(421-14711-00-00)

1
Out of stock

8

MUFFLER R

371-14721-04-00

1
Out of stock

8

MUFFLER R

421-14721-00-00

1
Out of stock

9

NUT, MUFFLER JOINT

(137-14713-00-00)

1
Out of stock

9

NUT, MUFFLER JOINT

371-14713-00-00

1
Out of stock

10

GASKET,MUFFLER

371-14714-13-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

14

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

STOPPER, MAIN STAND

371-27114-00-00

—

$5.80

In stock
