1973 Yamaha TX500 (TX500) Crankcase Diagram

← All diagrams

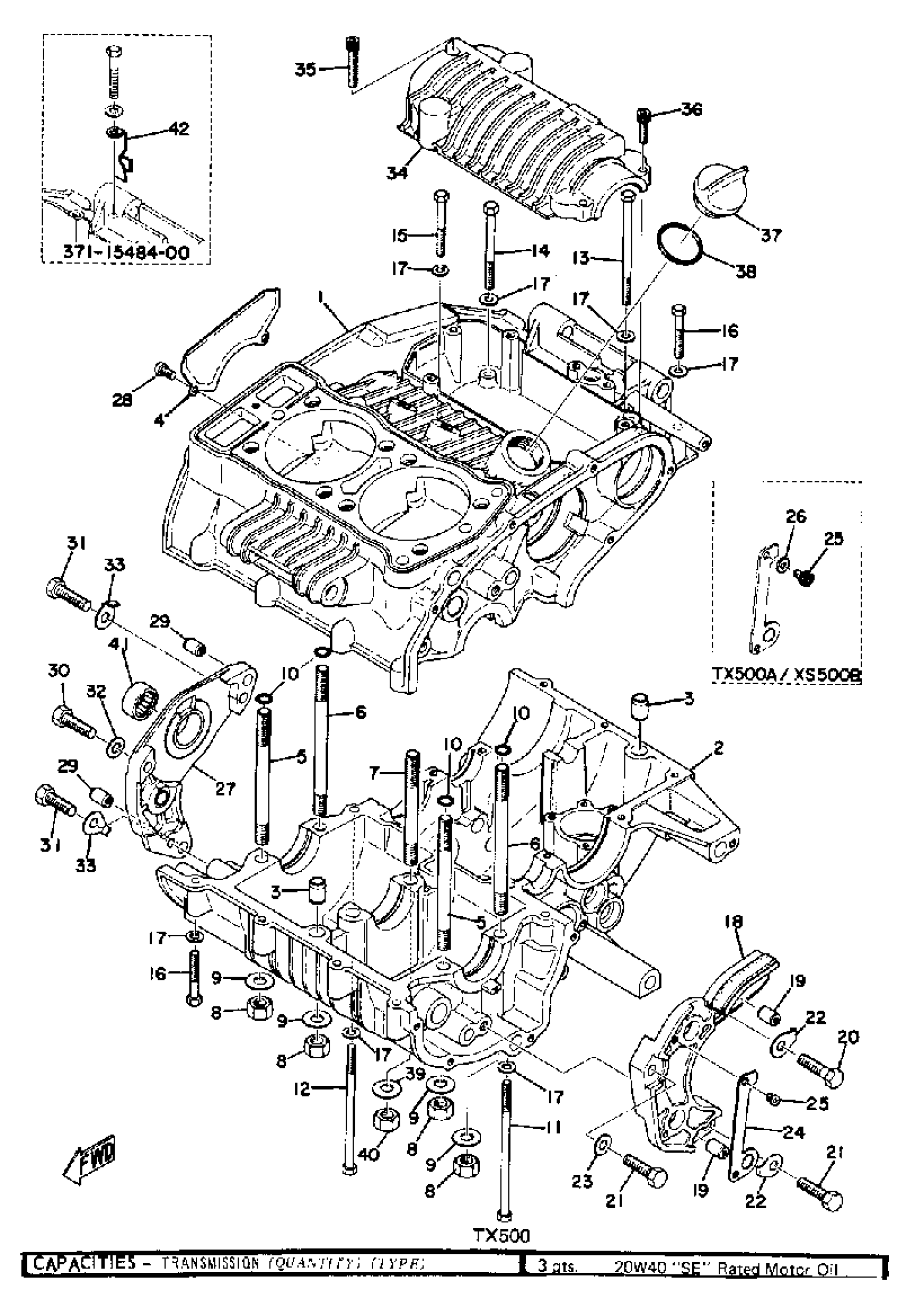

Find the part on the Crankcase diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(371-15100-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

COVER

(371-15492-00-00)

1
Out of stock

5

BOLT, STUD

(90116-10090-00)

1
Out of stock

6

BOLT, STUD

(90116-10091-00)

1
Out of stock

7

BOLT, STUD

(90116-10111-00)

1
Out of stock

8

NUT(3BM)

95314-10600-00

1

$1.74

In stock

9

1

$3.00

In stock

10

O-RING (341)

93210-09192-00

1

$4.35

In stock

11

BOLT

90101-06335-00

1

$6.23

In stock

12

BOLT

90101-06335-00

1

$6.23

In stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06095-00

—
Out of stock

14

BOLT(62J)

97013-06070-00

—

$3.37

In stock

15

BOLT, HEXAGON

97013-06050-00

1

$1.54

In stock

16

BOLT (682)

97095-06040-00

1

$2.36

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

BRACKET, IDLE SHAFT

371-15151-00-00

1
Out of stock

19

PIN, STRAIGHT

(90250-10021-00)

1
Out of stock

20

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

21

BOLT (682)

97013-08025-00

—

$6.80

In stock

22

WASHER, LOCK

(371-15186-00-00)

1
Out of stock

23

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

24

COVER, IDLE SHAFT

(371-15153-02-00)

1
Out of stock

25

BOLT, SOCKET

91317-05010-00

—

$1.68

In stock

25

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

26

WASHER PLATE 338839440000

90201-05027-00

—
Out of stock

27

BRACKET, BRKR SHAFT

(371-15152-00-00)

1
Out of stock

28

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

29

PIN, STRAIGHT

(90250-10021-00)

1
Out of stock

30

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

31

BOLT (682)

97013-08025-00

—

$6.80

In stock

32

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

33

WASHER, LOCK

(371-15186-00-00)

1
Out of stock

34

COVER, STRTG MOTOR

(371-15436-00-00)

1
Out of stock

35

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

36

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

37

PLUG, OIL

371-15363-00-00

—

$12.22

In stock

38

O-RING (371)

93210-29198-00

—

$5.78

In stock

39

WASHER PLATE 341839090000

90201-10128-00

—

$3.42

In stock

39

1

$3.00

In stock

40

NUT, CROWN(2GG)

90176-10075-00

—

$6.57

In stock

40

NUT(3BM)

95314-10600-00

1

$1.74

In stock

41

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

—
Out of stock

42

CLAMP 2

(371-15484-00-00)

1
Out of stock
