1973 Yamaha TX500 (TX500) Crankcase Cover Left Diagram

← All diagrams

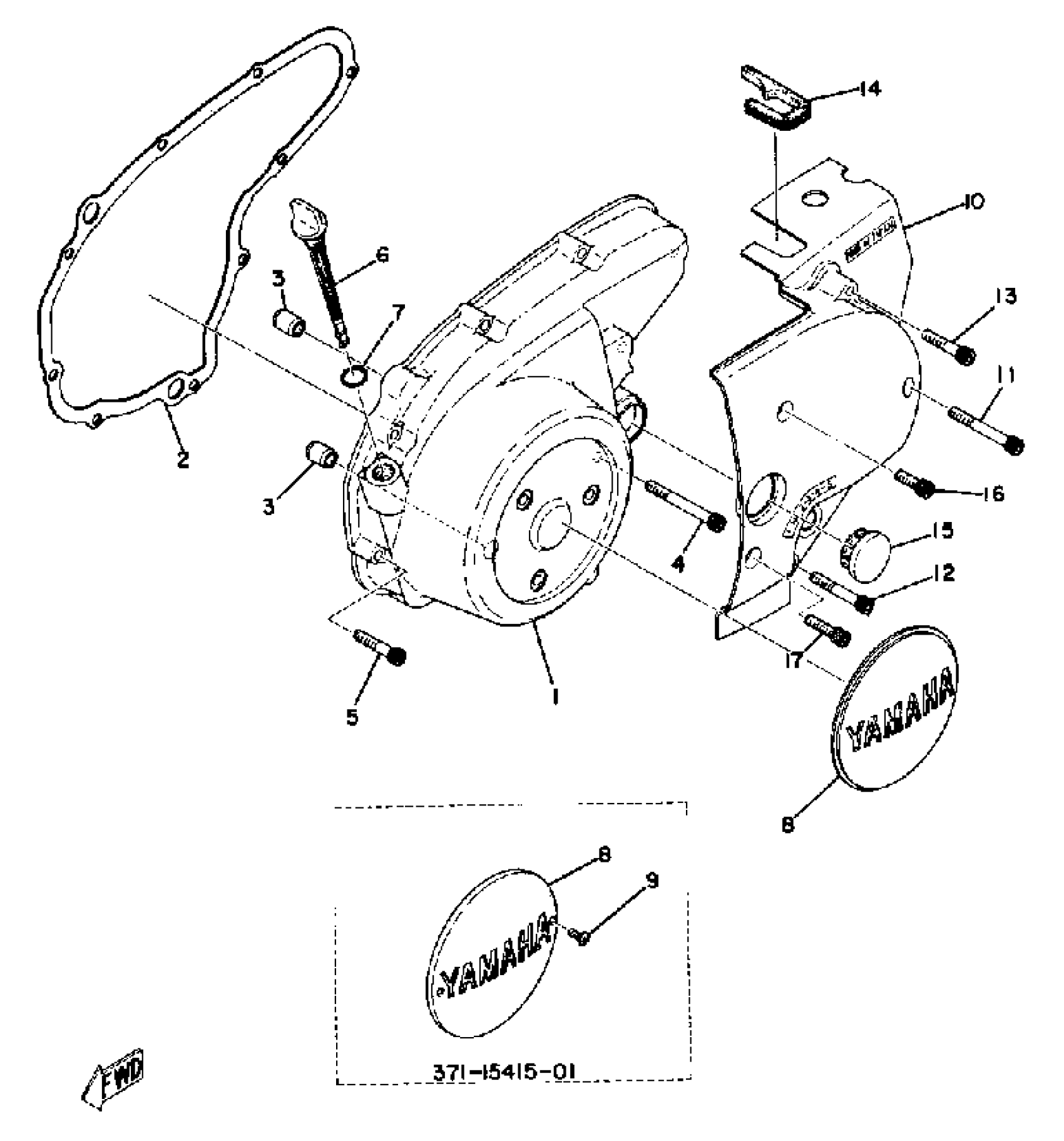

Find the part on the Crankcase Cover Left diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Crankcase Cover Left Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLUG, VIEWER

1H2-11186-00-00

1

$37.15

In stock

1

. COVER, CRANKCASE L

1H2-15411-00-00

1
Out of stock

1

O-RING (341)

93210-32172-00

1

$5.78

In stock

1

COVER CASE

(99999-00940-00)

1
Out of stock

2

GASKET,CRCS COVER

371-15451-11-00

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

5

1

$3.82

In stock

6

PLUG, OIL LEVEL

371-15362-00-00

1
Out of stock

7

O-RING (371)

93210-10197-00

1
Out of stock

8

COVER, GENERATOR

371-15415-01-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

COVER, CRANKCASE R

(371-15421-02-00)

1
Out of stock

11

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

12

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

13

1

$3.82

In stock

14

GROMMET

(371-15486-00-00)

1
Out of stock

15

COVER, CAP

371-15417-00-00

1
Out of stock

16

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

17

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock
