1973 Yamaha TX500 (TX500) Crankcase Cover Right Diagram

← All diagrams

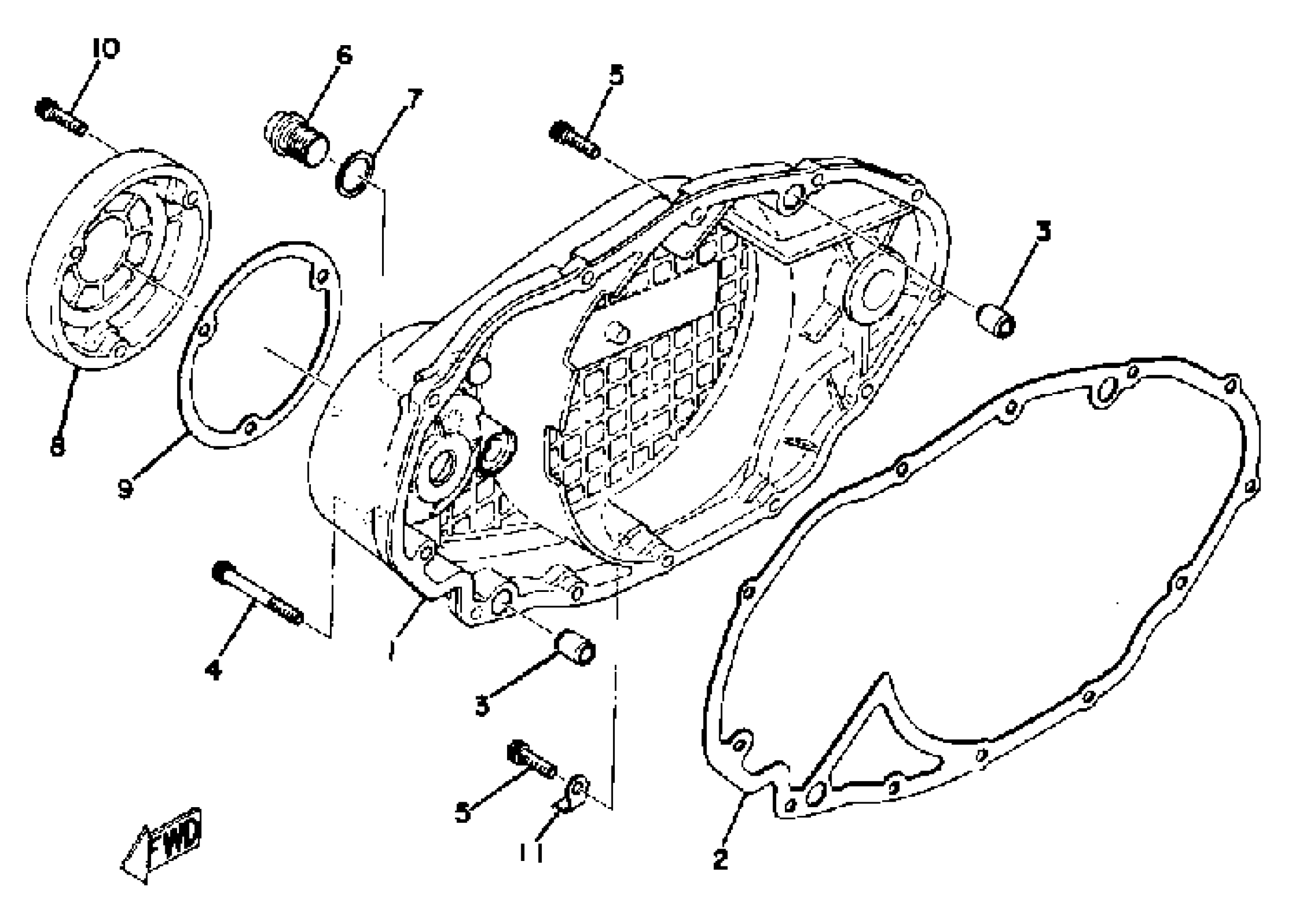

Find the part on the Crankcase Cover Right diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Crankcase Cover Right Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE 3

(371-15431-01-00)

1
Out of stock

2

GASKET, CRCS CVR 3

2F1-15462-10-00

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1
Out of stock

4

BOLT,SOCKET

91317-06050-00

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—
Out of stock

6

PLUG, STRAIGHT SCREW

90340-16019-00

1
Out of stock

7

GASKET

90430-16048-00

1
Out of stock

8

COVER, OIL PUMP

371-15416-01-00

1
Out of stock

9

GASKET,O/PMP CVR1

371-15456-10-00

1
Out of stock

10

BOLT,SOCKET

91317-06020-00

—
Out of stock

11

CLAMP

(2T4-82594-00-00)

1
Out of stock
