1973 Yamaha TX500 (TX500) Crank Piston Diagram

← All diagrams

Find the part on the Crank Piston diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

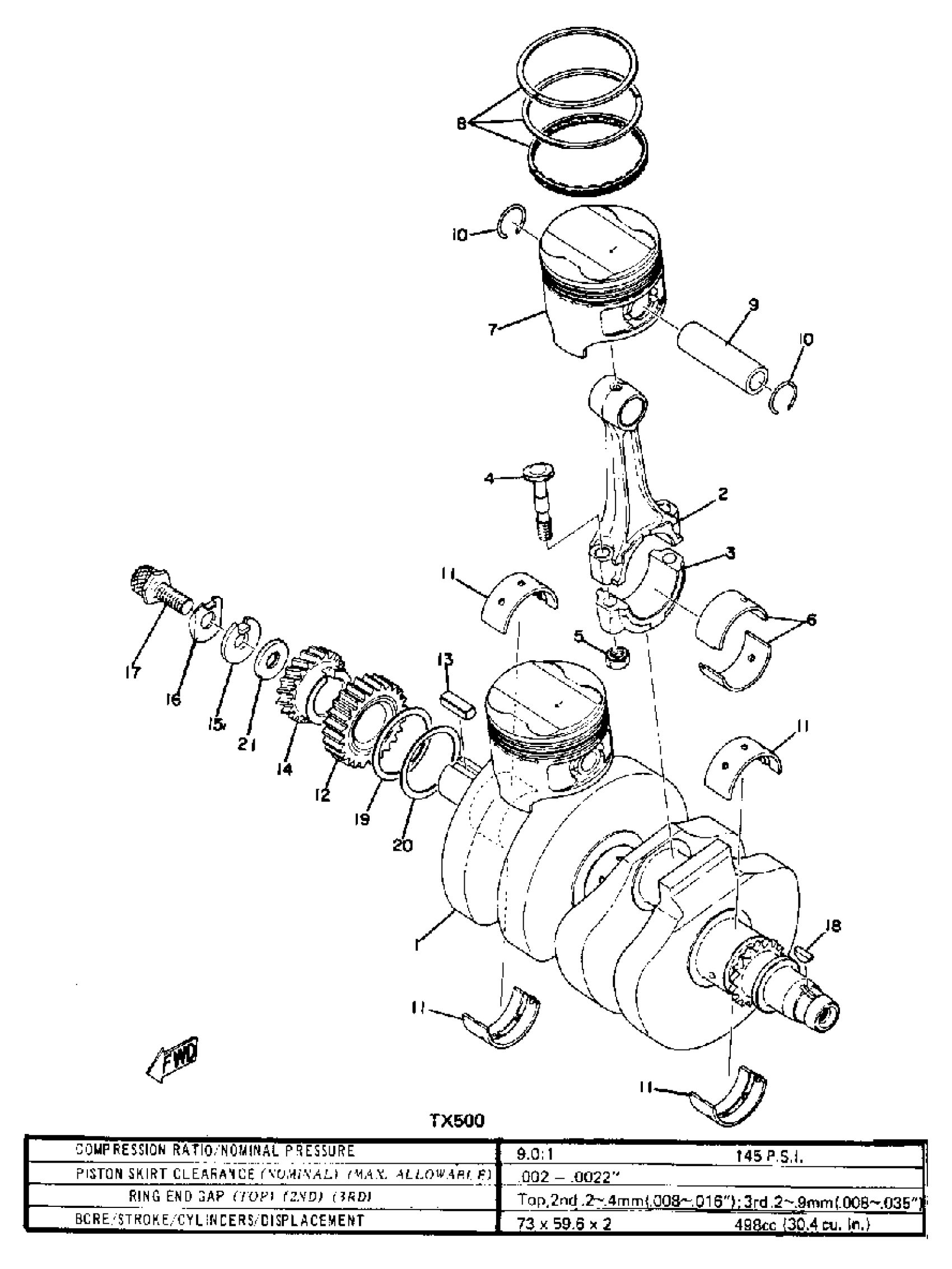

1973 Yamaha TX500 (TX500) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

(1A8-11411-00-00)

1
Out of stock

1

CONNECTING ROD ASSEMBLY

(371-Y1165-01-00)

1
Out of stock

2

PISTON KIT STD

(371-11630-00-00)

1
Out of stock

2

PISTON KIT 1ST

(371-11630-10-00)

1
Out of stock

2

PISTON KIT 2ND

(371-11630-20-00)

1
Out of stock

2

PISTON KIT 3RD

(371-11630-30-00)

1
Out of stock

2

PISTON KIT 4TH

(371-11630-40-00)

1
Out of stock

4

. BOLT, CON ROD

371-11654-01-00

1
Out of stock

5

. NUT, HEXAGON

90170-08129-00

1
Out of stock

6

PLANE BRNG, CON ROD (371-11656-01)

371-11656-03-00

1
Out of stock

6

PLANE BRNG, CON ROD (371-11656-11)

371-11656-13-00

1
Out of stock

6

PLANE BRNG, CON ROD (371-11656-21)

371-11656-23-00

1
Out of stock

6

PLANE BRNG, CON ROD (371-11656-31)

371-11656-33-00

1
Out of stock

6

PLANE BRNG, CON ROD (371-11656-41)

371-11656-43-00

1
Out of stock

6

PLANE BRNG, CON ROD

(371-11656-53-00)

1
Out of stock

7

PISTON KIT 1ST

(371-11630-10-00)

1
Out of stock

7

PISTON KIT 2ND

(371-11630-20-00)

1
Out of stock

7

PISTON KIT 3RD

(371-11630-30-00)

1
Out of stock

7

PISTON KIT 4TH

(371-11630-40-00)

1
Out of stock

7

PISTON STD (421-11631-03-96)

371-11631-05-96

1
Out of stock

7

PISTON STD (421-11631-03-96)

371-11631-05-96

1
Out of stock

7

PISTON 1 O/S 0.25 (371-11635-04)

371-11635-05-00

1
Out of stock

7

PISTON 2 O/S 0.50

371-11636-05-00

1
Out of stock

7

PISTON 3 O/S 0.75

(371-11637-05-00)

1
Out of stock

7

PISTON 4 O/S 1.00

(371-11638-05-00)

1
Out of stock

8

PISTON RINGSET STD (371-11610-04)

2F1-11610-00-00

1
Out of stock

8

PISTON RINGSET 1ST (371-11610-14)

2F1-11610-10-00

1
Out of stock

8

PISTON RINGSET 2ND (371-11610-24)

2F1-11610-20-00

1
Out of stock

8

PISTON RINGSET 3RD

(2F1-11610-30-00)

1
Out of stock

8

PISTON RINGSET 4TH

(2F1-11610-40-00)

1
Out of stock

8

PISTON RINGSET STD

371-11610-03-00

1
Out of stock

8

PISTON RINGSET 1ST

371-11610-13-00

1
Out of stock

8

PISTON RINGSET 2ND

371-11610-23-00

1
Out of stock

8

PISTON RINGSET 3RD

(371-11610-33-00)

1
Out of stock

8

PISTON RINGSET 4TH

(371-11610-43-00)

1
Out of stock

9

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

10

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

11

PLANE BRNG, CRSF 1

341-11416-00-00

1
Out of stock

11

PLANE BRNG, CRSF 1

(341-11416-10-00)

1
Out of stock

11

PLANE BRNG, CRSF 1

341-11416-20-00

1
Out of stock

11

PLANE BRNG, CRSF 1

(341-11416-30-00)

1
Out of stock

11

PLANE BRNG, CRSF 1

(341-11416-40-00)

1
Out of stock

12

GEAR, PRI DRIVE

(371-16111-00-00)

1
Out of stock

12

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

14

GEAR, DRIVE

(371-11536-03-00)

1
Out of stock

15

WASHER, CLAW

(90214-11007-00)

1
Out of stock

16

WASHER, LOCK

(371-16135-00-00)

1
Out of stock

17

BOLT

(90109-10171-00)

1
Out of stock

18

KEY,WOODRUFF

90280-04005-00

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-06)

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-07)

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-08)

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-09)

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-10)

1
Out of stock

19

SHIM, CRANK 1

(371-11561-00-11)

1
Out of stock

20

SHIM, CRANK 2

(371-11562-00-00)

1
Out of stock

21

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock
