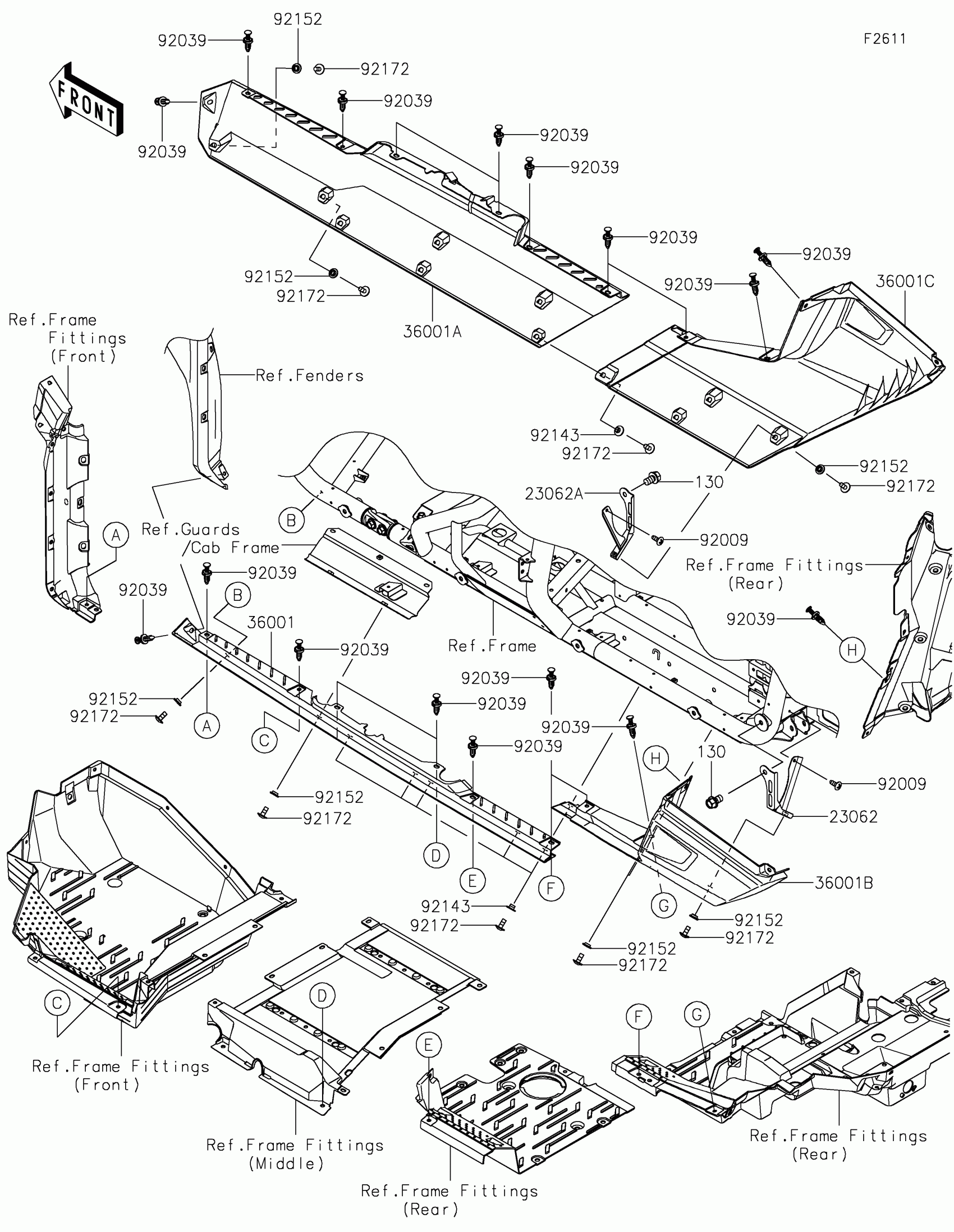

Kawasaki TERYX®5 H2 DELUXE eS Side Covers Diagram

Description

Price

23062

BRACKET-COMP,LWR COVER,LH

23062-1622

$18.51

23062A

BRACKET-COMP,LWR COVER,RH

23062-1623

$18.51

36001

COVER-SIDE,LWR,FR,LH

36001-0786

$31.20

36001A

COVER-SIDE,LWR,FR,RH

36001-0787

$31.16

36001B

COVER-SIDE,LWR,RR,LH

36001-0788

$36.21

36001C

COVER-SIDE,LWR,RR,RH

36001-0789

$36.21

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0865

$0.80

92143

COLLAR

92143-1057

$3.81

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92172

SCREW,6X14

92172-0004

$1.98

130

BOLT-FLANGED,10X16

130BA1016

$3.63
