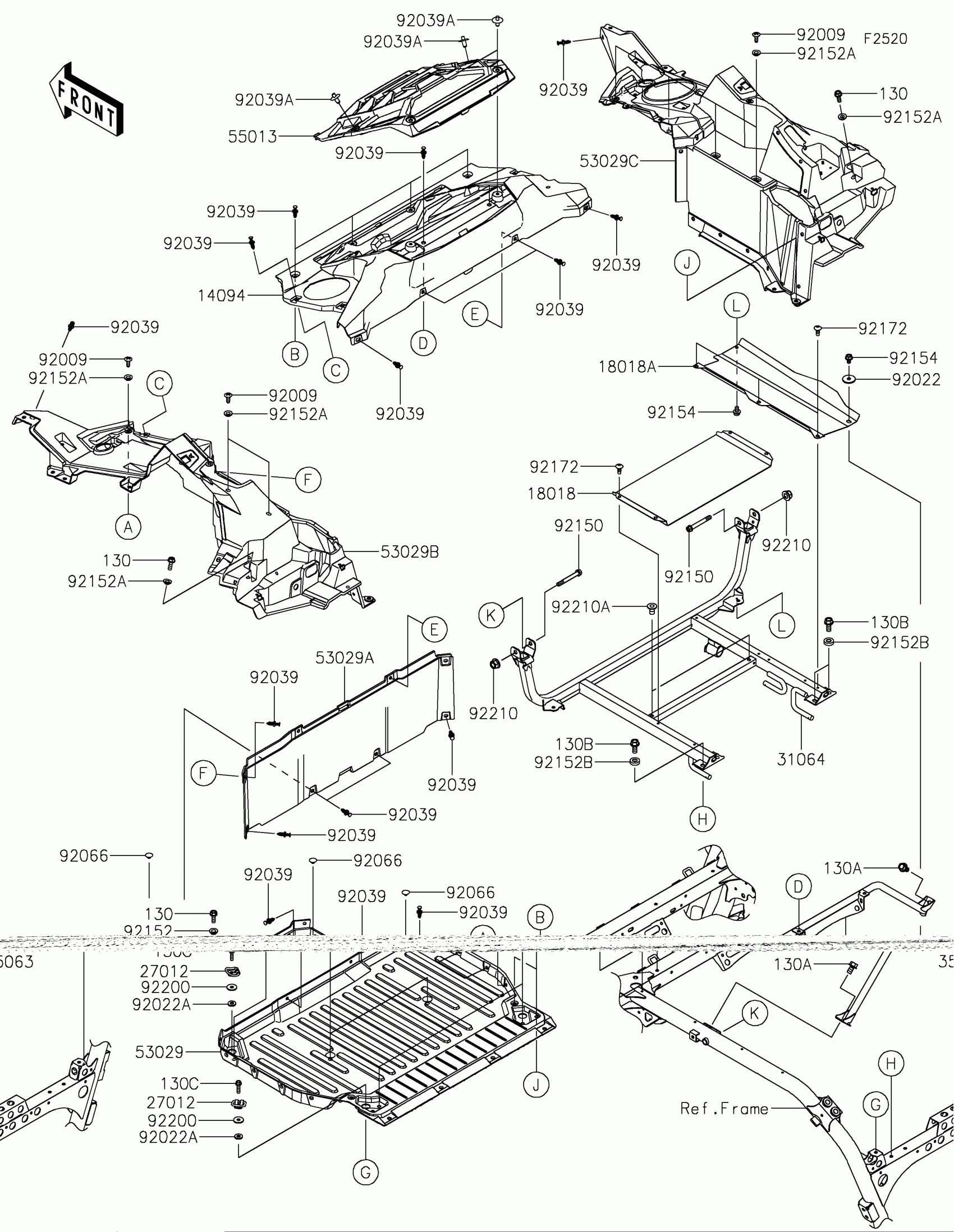

Kawasaki TERYX®5 H2 DELUXE eS Carrier(s) Diagram

#

Description
Price

14094

COVER,INTERCOOLER

14094-0196

$47.08

18018

PLATE-HEAT GUARD,CNT

18018-0651

$22.59

18018A

PLATE-HEAT GUARD,RH

18018-0655

$29.08

27012

HOOK

27012-0863

$8.02

31064

PIPE-COMP,CARRIER

31064-0819

$270.10

35063

STAY,INTERCOOLER

35063-1617

$72.32

53029

CARRIER,BOTTOM

53029-0396

$103.12

53029A

CARRIER,FR

53029-0397

$34.91

53029B

CARRIER,SIDE,LH

53029-0398

$52.57

53029C

CARRIER,SIDE,RH

53029-0399

$52.11

55013

GRILLE,INTERCOOLER,F.RED

55013-0001-6L

$23.88

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92022

WASHER,6.5X24X2

92022-1690

$2.99

92022A

WASHER,10X22X3.2

92022-1944

$3.81

92039

RIVET

92039-0865

$0.80

92039A

RIVET

92039-3785

$3.54

92066

PLUG

92066-1485

$1.74

92150

BOLT,10X80

92150-1893

$3.58

92152

COLLAR

92152-0224

$4.27

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92152B

COLLAR,8.2X18X5

92152-1848

$4.98

92154

BOLT,FLANGED,6X10

92154-4159

$1.39

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92200

WASHER,9X28X2.3

92200-1951

$3.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.08

130

BOLT-FLANGED,6X18

130CA0618

$1.53

130A

BOLT-FLANGED,8X14

130CA0814

$1.14

130B

BOLT-FLANGED,8X18

130CA0818

$1.81

130C

BOLT-FLANGED,8X30

130CA0830

$0.86
