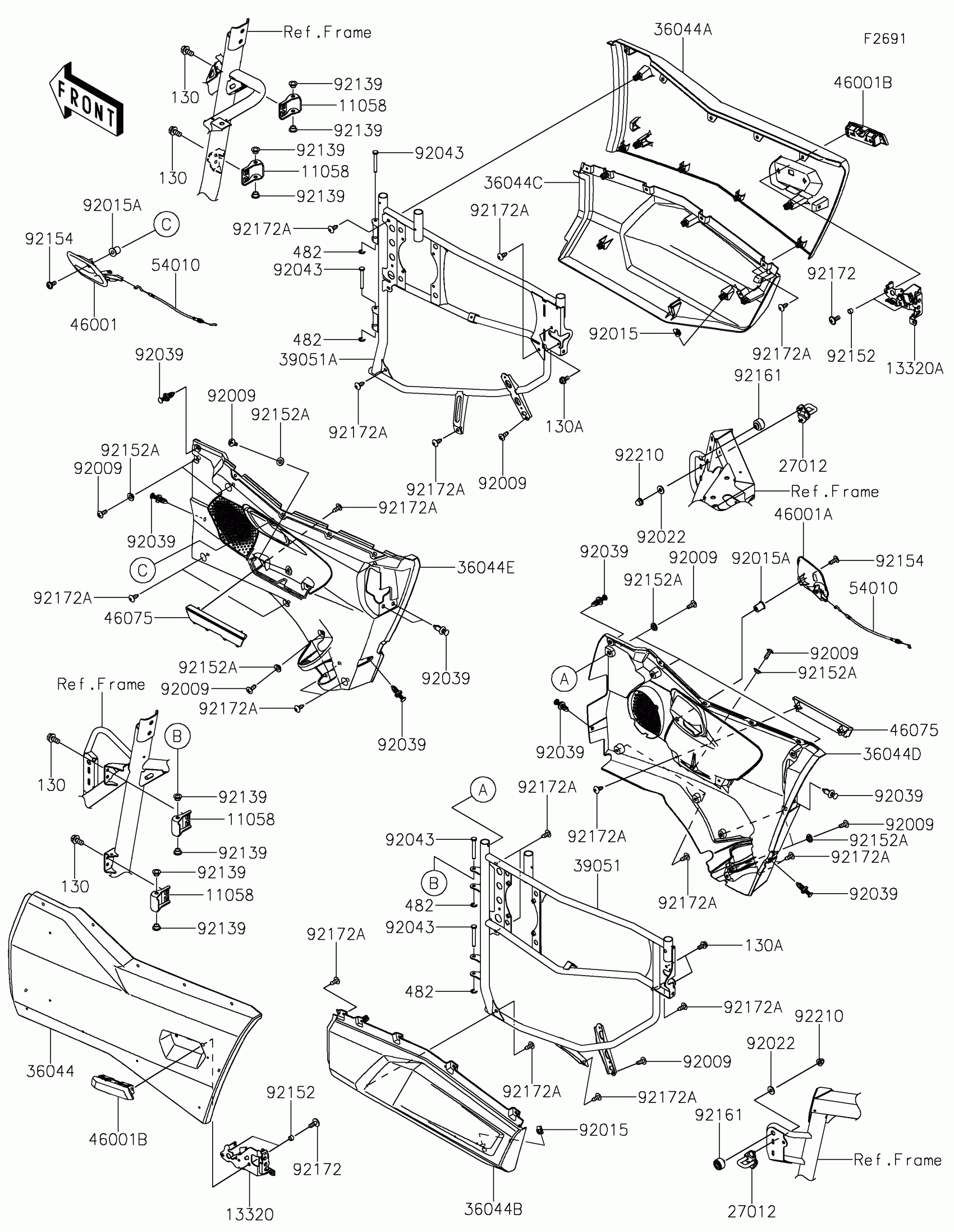

Kawasaki TERYX®5 H2 DELUXE eS Door(Rear) Diagram

#

Description
Price

11058

BRACKET,HINGE,RR

11058-4191

$16.69

13320

LEVER-ASSY,DOOR,RR,LH

13320-0591

$215.61

13320A

LEVER-ASSY,DOOR,RR,RH

13320-0592

$215.61

27012

HOOK,DOOR

27012-0934

$10.47

36044

PANEL-DOOR,RR,LH,UPP,L.GREEN

36044-0007-777

$236.15

36044A

PANEL-DOOR,RR,RH,UPP,L.GREEN

36044-0008-777

$236.15

36044B

PANEL-DOOR,RR,LH,LWR

36044-0009

$29.41

36044C

PANEL-DOOR,RR,RH,LWR

36044-0010

$29.41

36044D

PANEL-DOOR,RR,LH,INNER,L.GRAY

36044-0011-72H

$32.49

36044E

PANEL-DOOR,RR,RH,INNER,L.GRAY

36044-0012-72H

$32.49

39051

FRAME-COMP-SIDE,DOOR,RR,LH

39051-0033

$259.21

39051A

FRAME-COMP-SIDE,DOOR,RR,RH

39051-0034

$259.17

46001

HANDLE-ASSY,DOOR,RH,INNER

46001-0015

$42.27

46001A

HANDLE-ASSY,DOOR,LH,INNER

46001-0016

$42.27

46001B

HANDLE-ASSY,DOOR,OUTER

46001-0017

$24.91

46075

GRIP,DOOR,INNER

46075-0693

$4.66

54010

CABLE

54010-0666

$22.58

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,6MM

92015-1602

$5.61

92015A

NUT

92015-1700

$6.55

92022

WASHER

92022-2247

$0.57

92039

RIVET

92039-0865

$0.80

92043

PIN,DOOR

92043-1815

$16.25

92139

BUSHING,DOOR

92139-1281

$3.90

92152

COLLAR,6.5X8.5X5.5

92152-0612

$2.98

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,SOCKET,6X16

92154-4068

$1.93

92161

DAMPER

92161-2590

$7.39

92172

SCREW,6X16

92172-0236

$0.73

92172A

SCREW,6X16

92172-0284

$0.90

92210

NUT,CAP,6MM

92210-0003

$0.60

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,6X12

130CA0612

$3.02

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65
