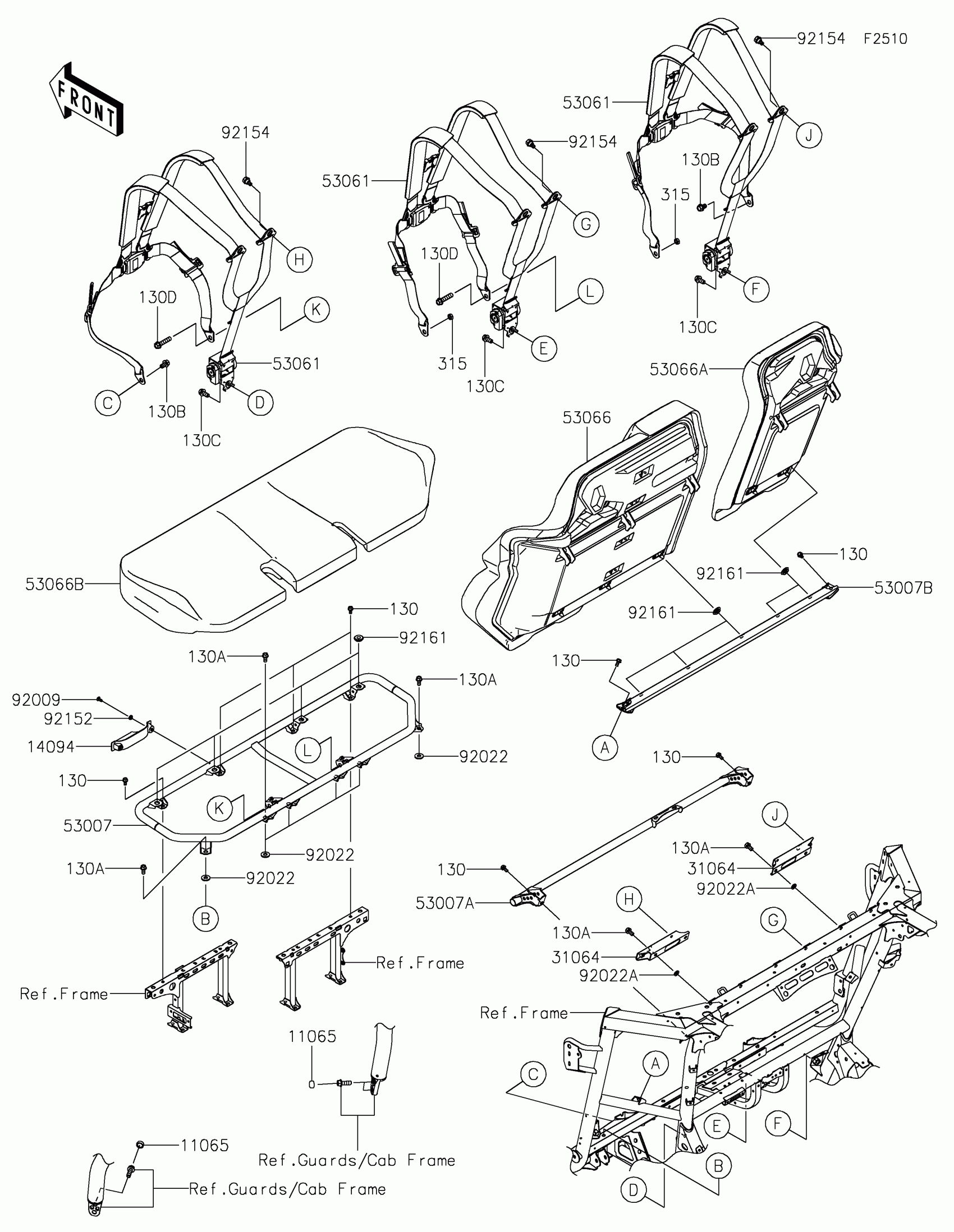

Kawasaki TERYX®5 H2 DELUXE eS Seat(Rear) Diagram

Description

Price

11065

CAP

11065-1520

$1.59

14094

COVER,BATTERY

14094-0422

$9.31

31064

PIPE-COMP

31064-0820

$12.07

53007

FRAME-SEAT,RR BOTTOM

53007-0487

$346.43

53007A

FRAME-SEAT,UPP CROSS

53007-0492

$116.51

53007B

FRAME-SEAT,LWR,CROSS

53007-0521

$65.95

53061

BELT-SEAT,RR

53061-0392

$312.16

53066

SEAT-ASSY,RR,BACK,LH,GRY+GRN

53066-0944-77W

$670.07

53066A

SEAT-ASSY,RR,BACK,RH,GRY+GRN

53066-0945-77E

$431.64

53066B

SEAT-ASSY,RR,BOTTOM,D.GRAY+GRY

53066-0989-77F

$480.86

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92022

WASHER,12.5X28X3.0

92022-1343

$4.32

92022A

WASHER,10.5X19X3.2

92022-1820

$3.85

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER,SEAT

92161-2744

$0.86

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,10X18

130BA1018

$2.05

130B

BOLT-FLANGED,12X20

130BA1220

$2.84

130C

BOLT-FLANGED,12X25

130BA1225

$3.25

130D

BOLT-FLANGED,12X50

130BA1250

$5.86

315

NUT-HEX-FINE,12MM

315BA1200

$1.08
