2026 Kawasaki TERYX®5 H2 Deluxe Es Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2026 Kawasaki TERYX®5 H2 Deluxe Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

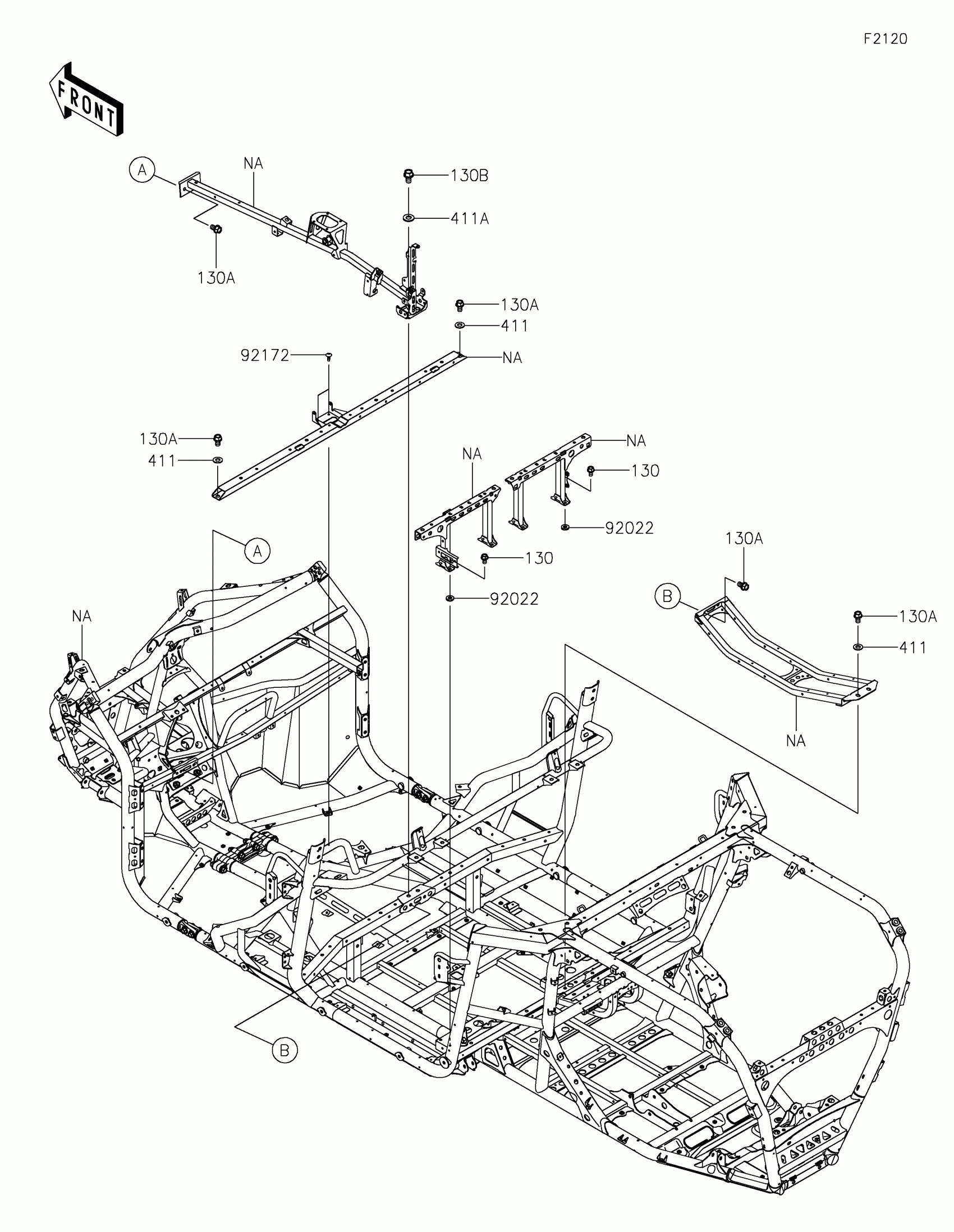

2026 Kawasaki TERYX®5 H2 Deluxe Es Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92022

WASHER

92022-2124

1

$2.56

In stock

92172

SCREW,TAPPING,6X16

92172-0739

1

$0.85

In stock

130

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130A

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

130B

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

411A

WASHER-PLAIN,12MM

411AA1200

1

$0.93

In stock
