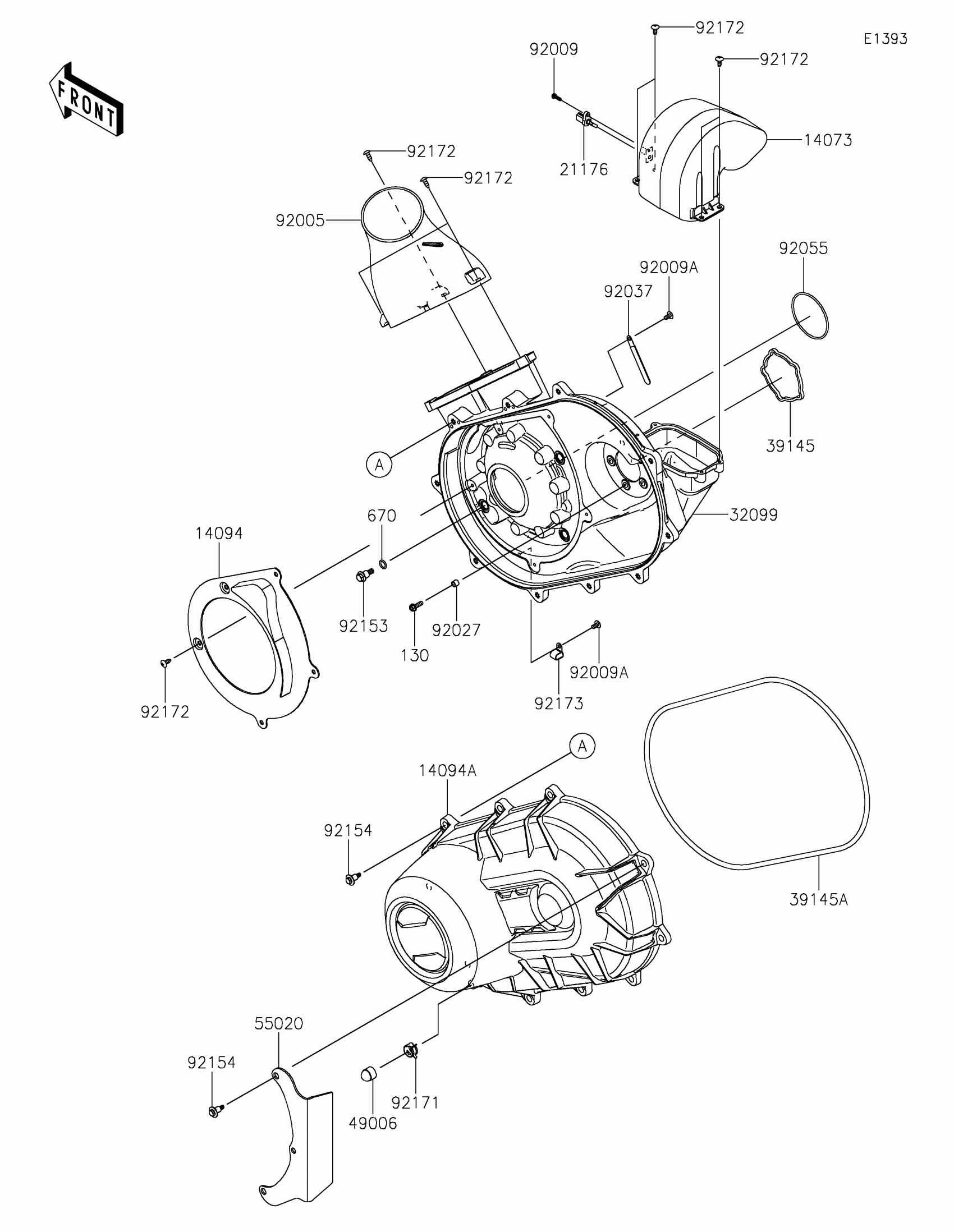

Kawasaki TERYX®5 H2 DELUXE eS Converter Cover Diagram

Description

Price

14073

DUCT,EXHAUST

14073-2138

$159.98

14094

COVER,AIR GUIDE

14094-0438

$39.84

14094A

COVER,CVT

14094-0541

Unavailable

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

32099

CASE,CVT

32099-0838

$250.34

39145

TRIM-SEAL

39145-0714

$6.07

39145A

TRIM-SEAL,CVT COVER

39145-0781

$90.59

49006

BOOT,DRAIN

49006-3718

$4.94

55020

GUARD

55020-2653

$102.55

92005

FITTING,INTAKE

92005-1486

$191.41

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92009A

SCREW,6X12

92009-1480

$2.23

92027

COLLAR,6.8X10X8.5

92027-129

$3.81

92037

CLAMP

92037-1993

$4.18

92055

RING-O,84.4X3.1

92055-0916

$3.55

92153

BOLT,8X26.5

92153-0594

$4.08

92154

BOLT,CVT COVER

92154-7452

$3.98

92171

CLAMP

92171-0329

$6.77

92172

SCREW,6X16

92172-0284

$0.90

92173

CLAMP

92173-2439

$5.27

130

BOLT-FLANGED,6X20

130BA0620

$1.28

670

O RING,12MM

670D2012

$2.19
