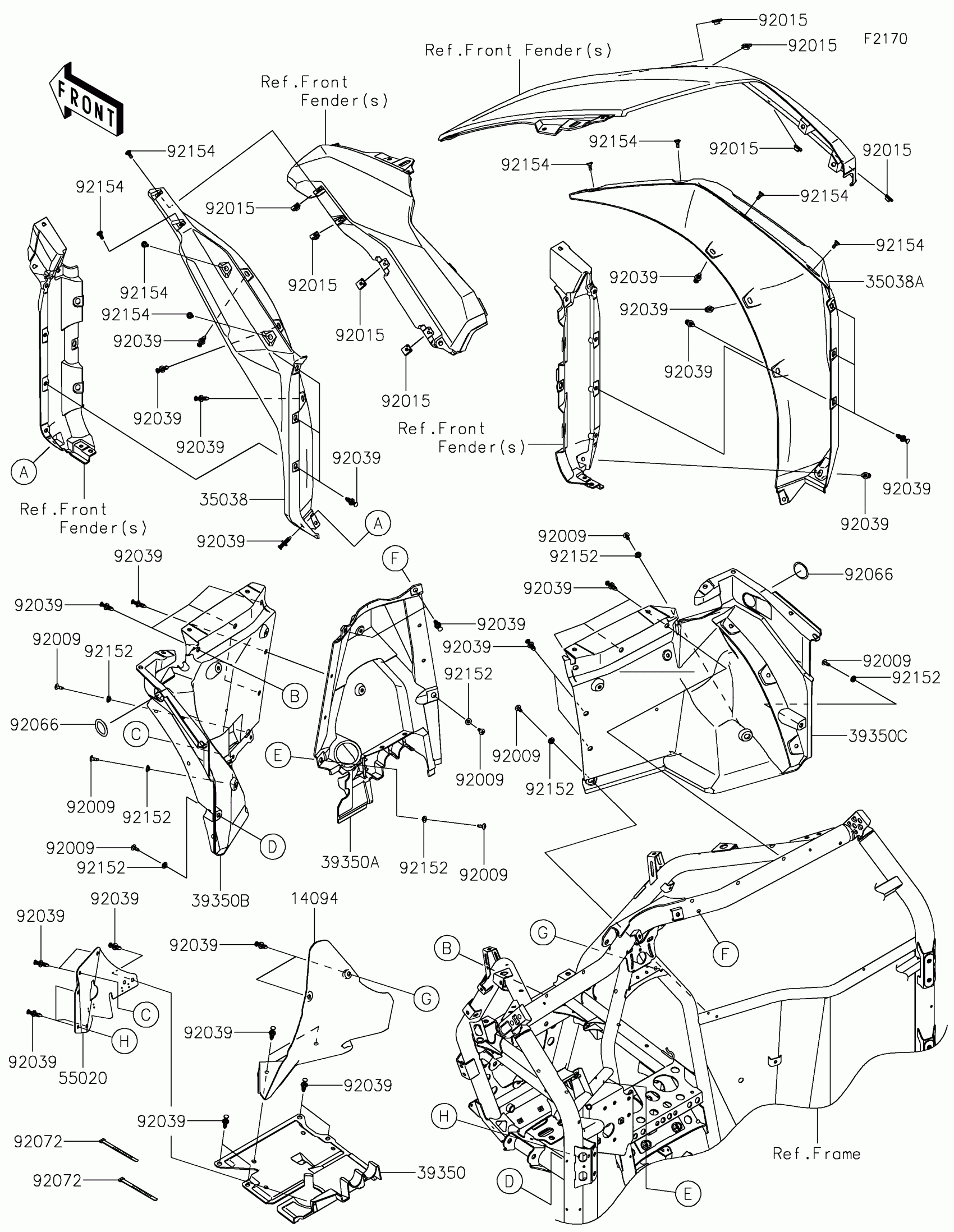

Kawasaki TERYX®5 H2 DELUXE eS Fenders Diagram

Description

Price

14094

COVER,FR

14094-0413

$95.35

35038

FENDER-FRONT,FLARE,LH

35038-0062

$113.67

35038A

FENDER-FRONT,FLARE,RH

35038-0063

$113.67

39350

PANEL,FR,LWR

39350-0018

$12.07

39350A

PANEL,FR,CNT

39350-0019

$24.93

39350B

PANEL,FR,LH

39350-0020

$32.69

39350C

PANEL,FR,RH

39350-0021

$31.53

55020

GUARD,FR PANEL

55020-2504

$5.78

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-0865

$0.80

92066

PLUG,FR PANEL

92066-1598

$0.75

92072

BAND,L=123

92072-030

$3.81

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT

92154-2474

$1.20
