1991 Kawasaki Tengai Tire Diagram

← All diagrams

Find the part on the Tire diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

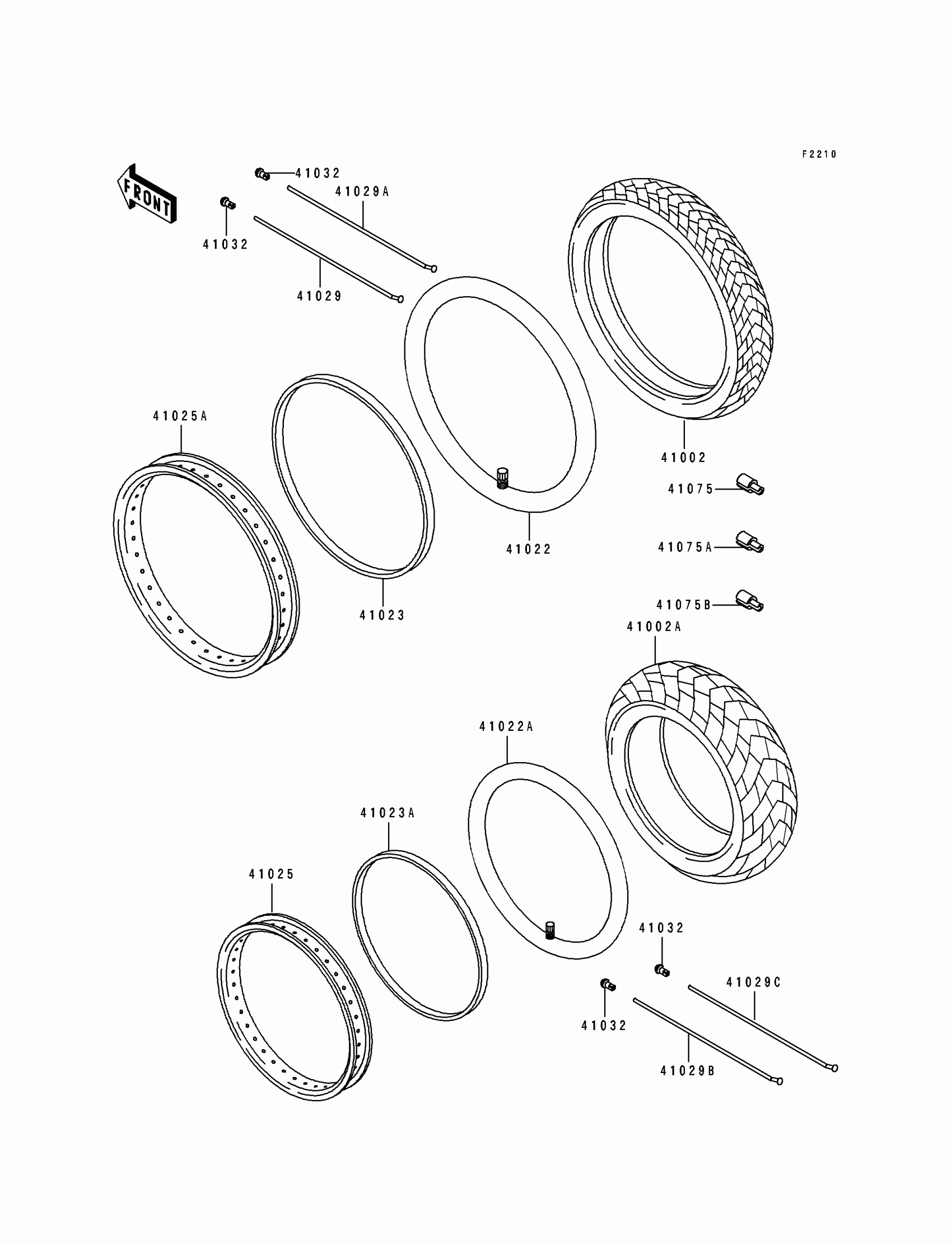

1991 Kawasaki Tengai Tire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002

1

$214.66

In stock

41002A

1

$327.66

In stock

41022

1

$51.02

In stock

41022A

TUBE-TIRE,4.00/5.10-17(DUNLOP)

41022-1029

1
Out of stock

41023

1

$14.49

In stock

41023A

1

$15.07

In stock

41025

RIM,RR,2.50X17

41025-1171

1

$598.49

In stock

41025A

RIM,FR,1.60X21

41025-1218

1

$334.85

In stock

41029

1

$5.34

In stock

41029A

1

$5.34

In stock

41029B

1

$5.34

In stock

41029C

1

$5.34

In stock

41032

1

$4.02

In stock

41075

BALANCER-WHEEL,10G

41075-1007

—

$10.02

In stock

41075A

BALANCER-WHEEL,20G

41075-1008

—

$10.02

In stock

41075B

BALANCER-WHEEL,30G

41075-1009

—

$10.02

In stock
