1991 Kawasaki Tengai Suspension Diagram

← All diagrams

Find the part on the Suspension diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

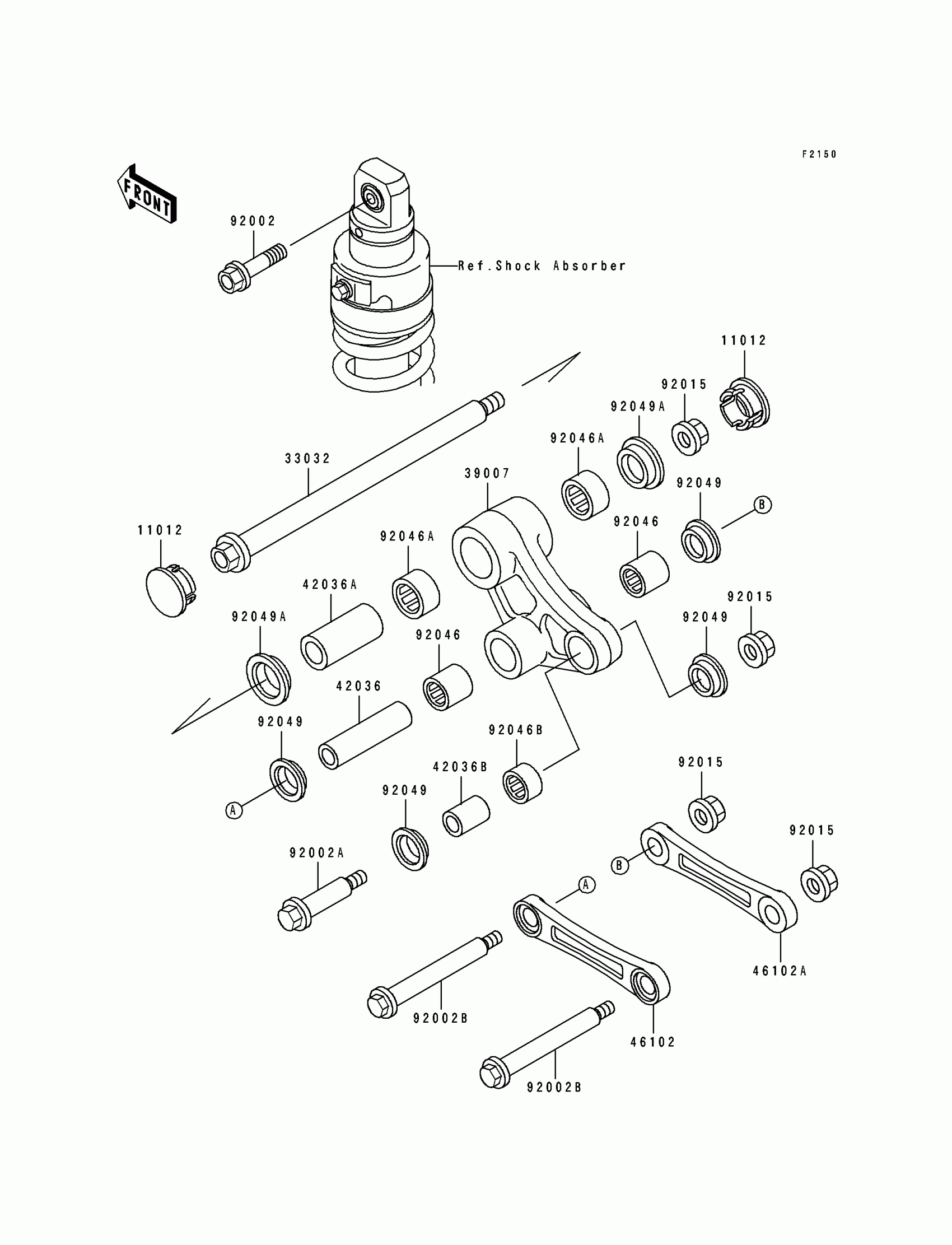

1991 Kawasaki Tengai Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,32X14

11012-1559

1

$7.49

In stock

33032

SHAFT-SWING ARM

33032-1129

1

$90.76

In stock

39007

ARM-SUSP,UNI TRAK

39007-1119

1

$277.95

In stock

42036

SLEEVE,15X20X82

42036-1205

1

$25.68

In stock

42036A

SLEEVE,20X28X60

42036-1207

1

$35.14

In stock

42036B

SLEEVE,15X20X30

42036-1208

1
Out of stock

46102

ROD,SUSPENSION,LH

46102-1227

1

$68.85

In stock

46102A

ROD,SUSPWNSION,RH

46102-1228

1

$68.85

In stock

92002

BOLT,12X45

92001-1939

1
Out of stock

92002A

BOLT,FLANGED,14X64

92002-1869

1
Out of stock

92002B

BOLT,FLANGED,14X120

92002-1870

1
Out of stock

92015

NUT,14MM

92015-1459

1

$7.86

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046B

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock
← Shock Absorber Swing Arm →
