1991 Kawasaki Tengai Electrical Equipment Diagram

← All diagrams

Find the part on the Electrical Equipment diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

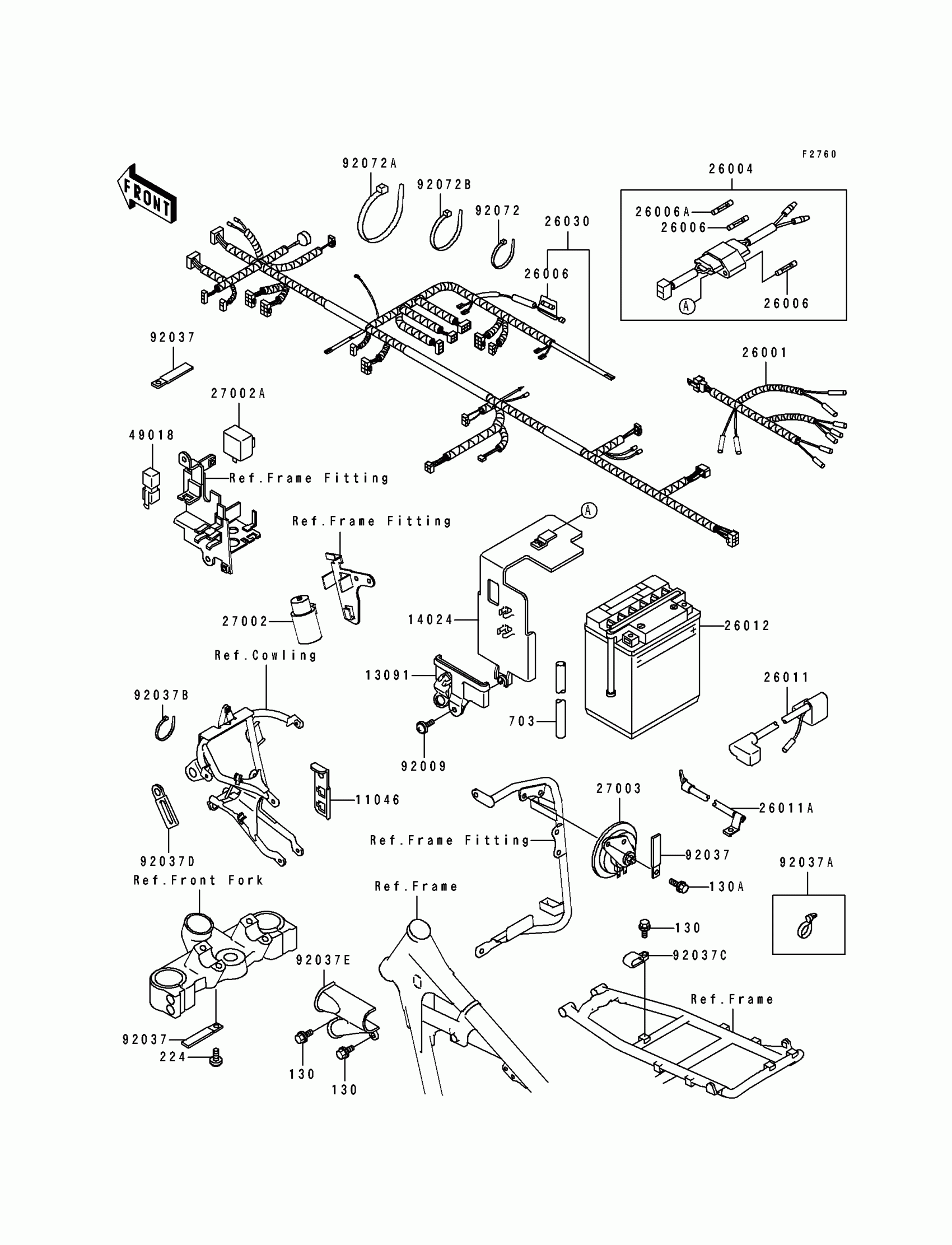

1991 Kawasaki Tengai Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET

11046-1791

1
Out of stock

13091

1

$14.99

In stock

14024

COVER,BATTERY

14024-1375

1
Out of stock

26001

HARNESS,RR

26001-1822

1
Out of stock

26004

FUSE-ASSY

26004-1076

1

$46.36

In stock

26006

1

$4.05

In stock

26006A

FUSE,20A,L=30

26006-1056

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1386

1
Out of stock

26011A

1

$38.93

In stock

26012

1

$109.22

In stock

26030

HARNESS,MAIN

26030-1004

1

$178.64

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27002A

1

$53.03

In stock

27003

HORN

27003-1273

1

$80.12

In stock

49018

DIODE

49018-1052

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037B

CLAMP

92037-1173

1

$2.92

In stock

92037C

CLAMP

92037-1608

1

$6.44

In stock

92037D

CLAMP

92037-1780

1

$5.71

In stock

92037E

CLAMP,HARNESS

92037-1906

1

$15.53

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92072B

BAND,L=250

92072-1237

1

$1.80

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X14

130D0614

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0508

1
Out of stock

703

1

$19.49

In stock
