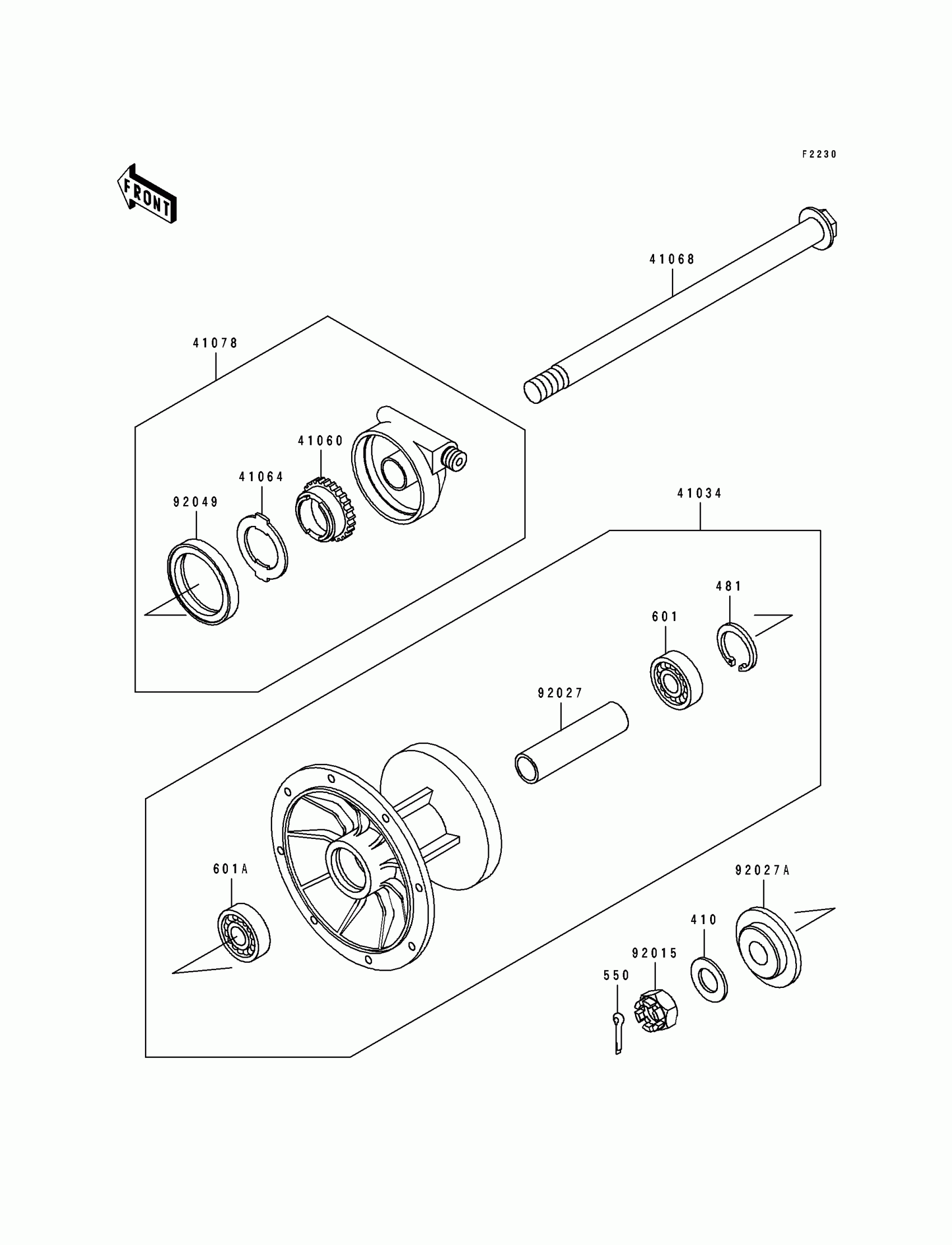

Kawasaki Tengai Front Hub Diagram

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1153

$642.75

41060

GEAR-METER SCREW,24T

41060-1101

$21.94

41064

RECEIVER-SPEEDOMETER

41064-1051

$8.99

41068

AXLE,FR

41068-1236

$81.09

41078

CASE-ASSY-METER GEAR

41078-1051

$92.02

92015

NUT,CASTLE,14MM

42045-020

$7.49

92027

COLLAR,FRONT BRAKE DRUM,L=79

92027-1683

$39.84

92027A

COLLAR

92027-1864

$33.88

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$16.81

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,3.0X25

550D3025

Unavailable

601

BEARING-BALL,#6202UG

601B6202UG

$15.51

601A

BEARING-BALL,#6203UG

601B6203UG

$34.89
