1991 Kawasaki Tengai Cable Diagram

← All diagrams

Find the part on the Cable diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

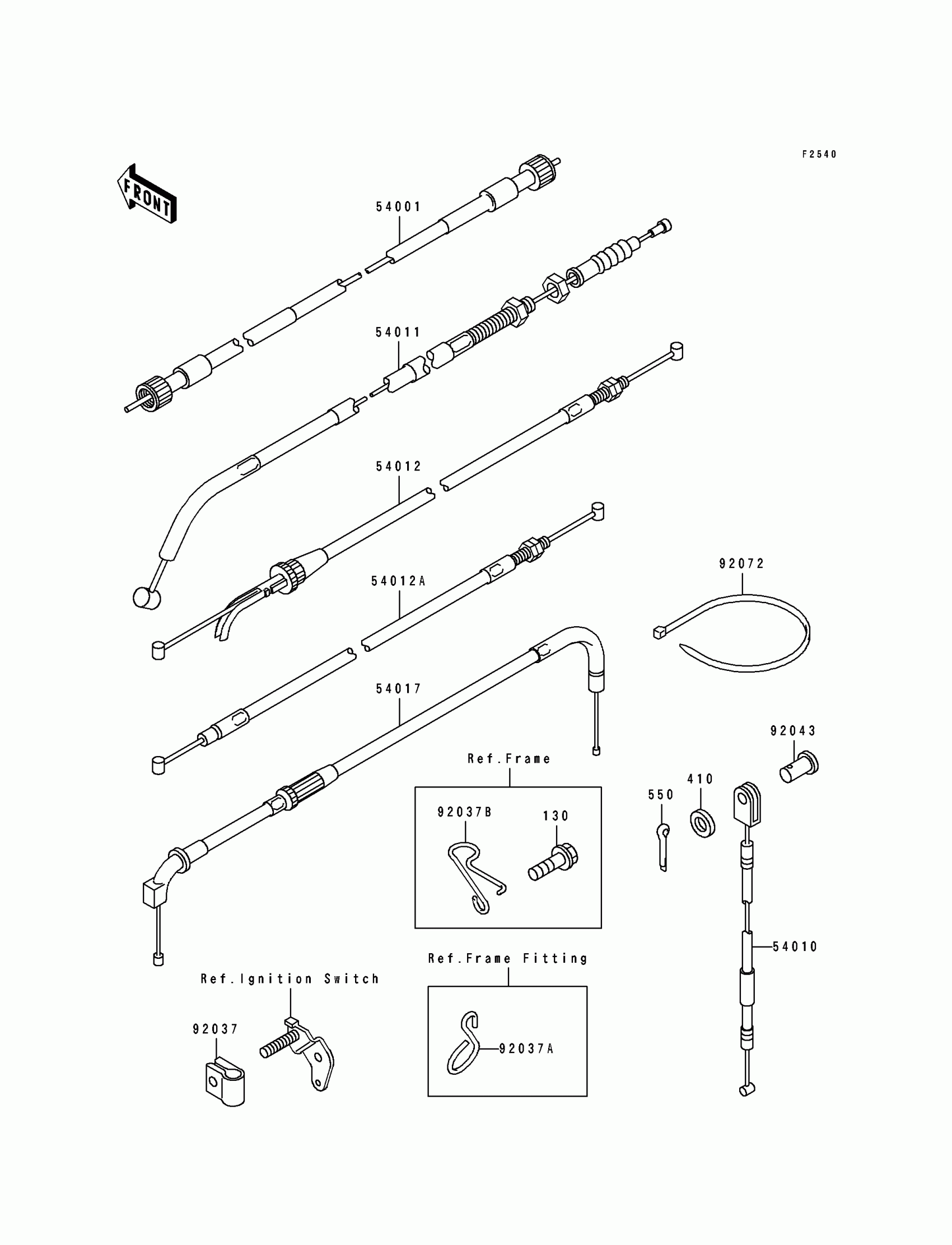

1991 Kawasaki Tengai Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1152

1
Out of stock

54010

CABLE,SIDE STAND SWITCH

54010-1061

1
Out of stock

54011

CABLE-CLUTCH

54011-1286

1
Out of stock

54012

CABLE-THROTTLE,OPENING

54012-1367

1
Out of stock

54012A

CABLE-THROTTLE,CLOSING

54012-1368

1
Out of stock

54017

CABLE-STARTER

54017-1114

1
Out of stock

92037

CLAMP,CABLE

92037-1777

1

$5.59

In stock

92037A

CLAMP,CABLE

92037-1904

1

$7.44

In stock

92037B

CLAMP,CABLE

92037-1937

1

$8.39

In stock

92043

PIN,5X10

92043-1346

1

$4.25

In stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock

130

BOLT

130B0612

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

550

1

$1.03

In stock
