1991 Kawasaki Tengai Swing Arm Diagram

← All diagrams

Find the part on the Swing Arm diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

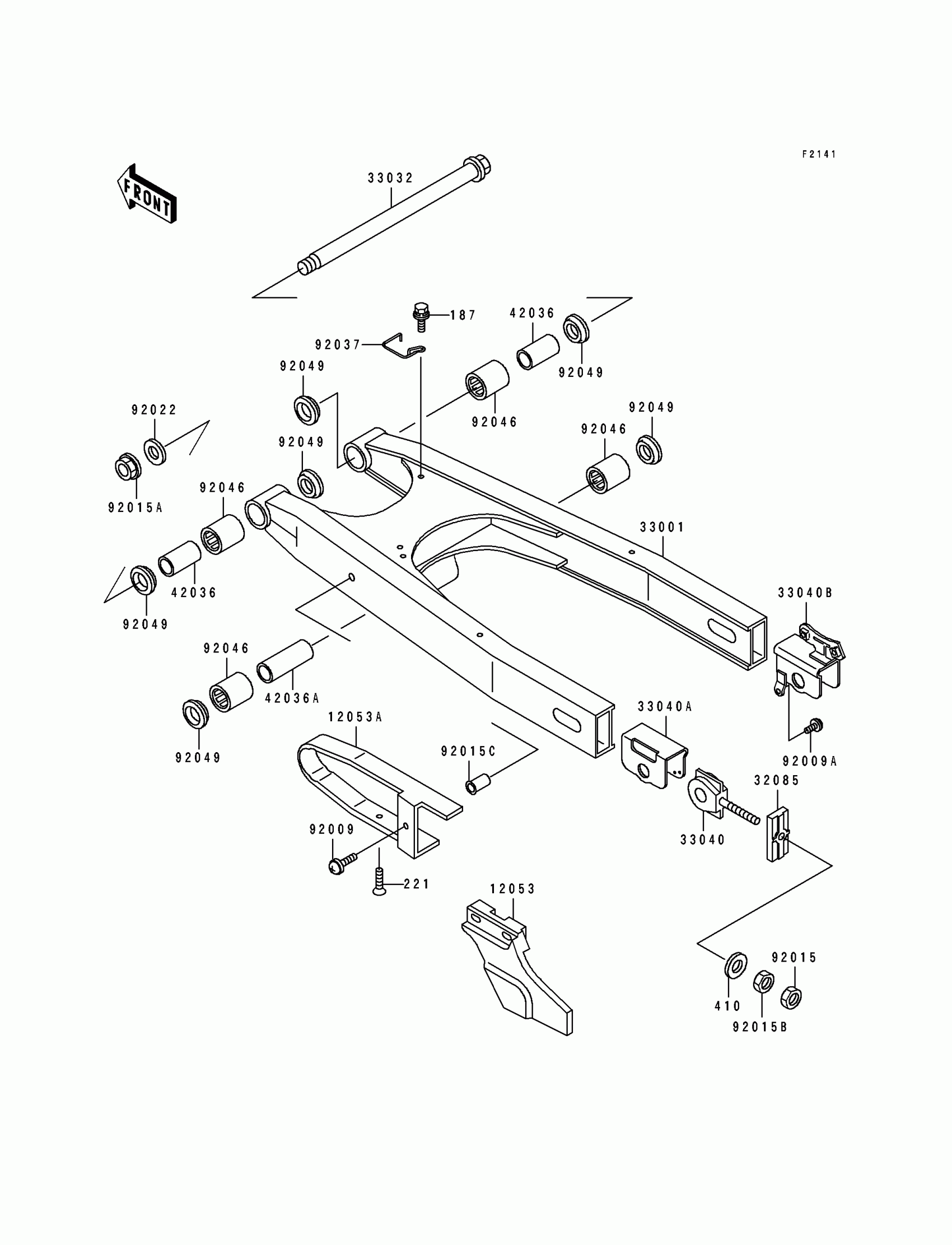

1991 Kawasaki Tengai Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN,RR

12053-1104

1

$65.60

In stock

12053A

GUIDE-CHAIN,FR

12053-1210

1
Out of stock

32085

1

$22.74

In stock

33001

1

$1,019.77

In stock

33032

SHAFT-SWING ARM

33032-1128

1

$74.81

In stock

33040

1

$31.83

In stock

33040A

1

$38.22

In stock

33040B

1

$36.91

In stock

42036

SLEEVE,15X20X47.5

42036-1204

1

$18.14

In stock

42036A

SLEEVE,15X20X82

42036-1205

1

$25.68

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,5X10

92009-1335

1
Out of stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,14MM

92015-1459

1

$7.86

In stock

92015B

NUT,8MM

92015-1658

1

$3.87

In stock

92015C

NUT,CRIMP 6MM

92015-1796

1

$5.37

In stock

92022

WASHER,16X32X3.2

92022-1701

1

$4.17

In stock

92037

CLAMP,HOSE

92037-1902

1

$7.44

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

187

BOLT-UPSET-WSP

187D0610

1

$4.15

In stock

221

1

$2.92

In stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock
