1991 Kawasaki Tengai Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

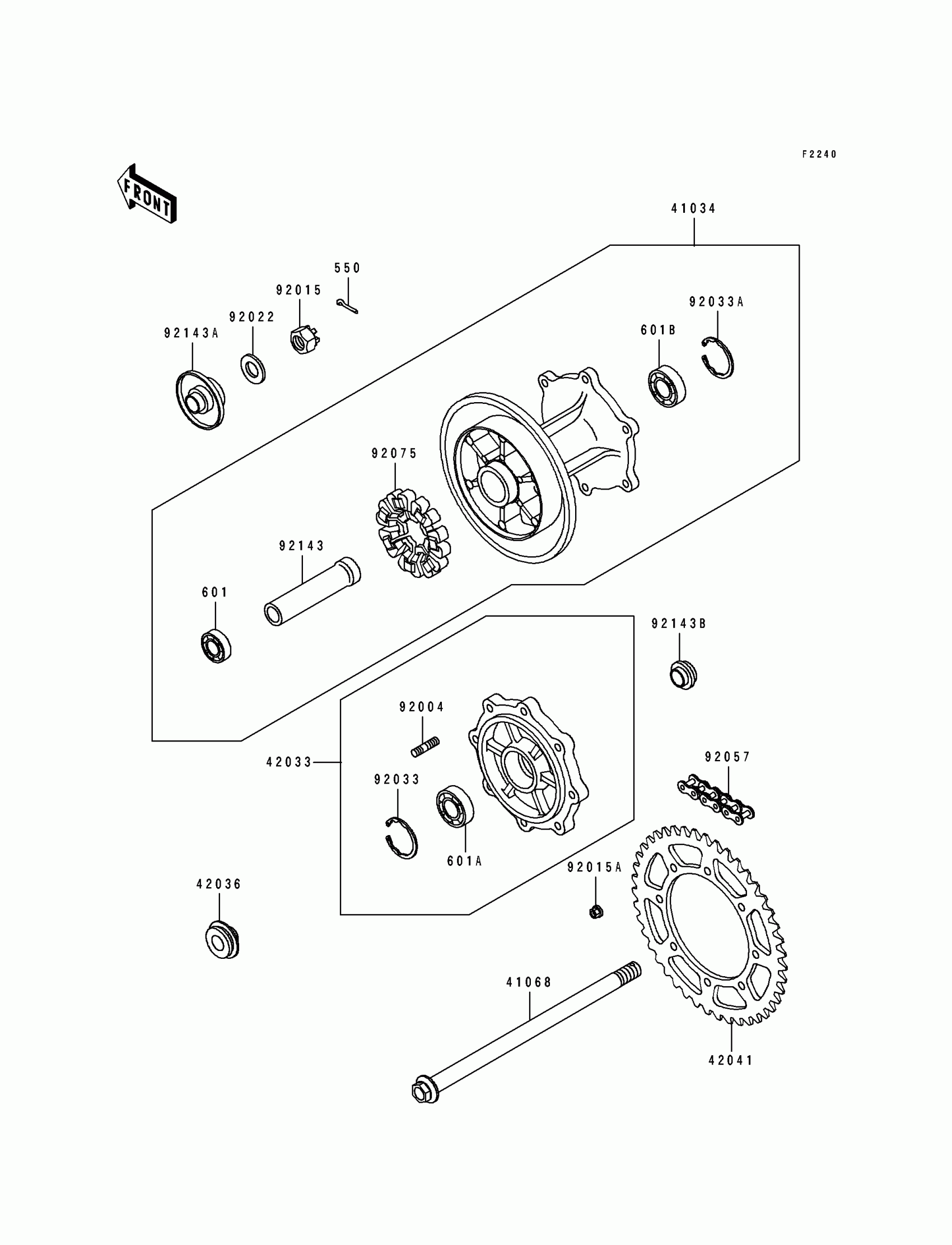

1991 Kawasaki Tengai Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$685.81

In stock

41068

AXLE,RR

41068-1237

1
Out of stock

42033

1

$229.32

In stock

42036

1

$15.20

In stock

42041

SPROCKET-HUB,43T

42041-1260

1

$69.38

In stock

92004

STUD,8X16

92004-1150

1
Out of stock

92015

NUT,CASTLE,16MM

42045-014

1

$7.86

In stock

92015A

1

$3.38

In stock

92022

WASHER,17.3X32X3.2

42046-009

1

$7.71

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92033A

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92057

CHAIN,DRIVE,DID520V-2X106L

92057-1253

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1

$43.39

In stock

92143

1

$36.42

In stock

92143A

1

$21.15

In stock

92143B

1

$26.92

In stock

550

1

$1.81

In stock

601

1

$16.78

In stock

601A

1

$33.92

In stock

601B

1

$30.34

In stock
