1978 Yamaha SRX440B Water Pump Diagram

← All diagrams

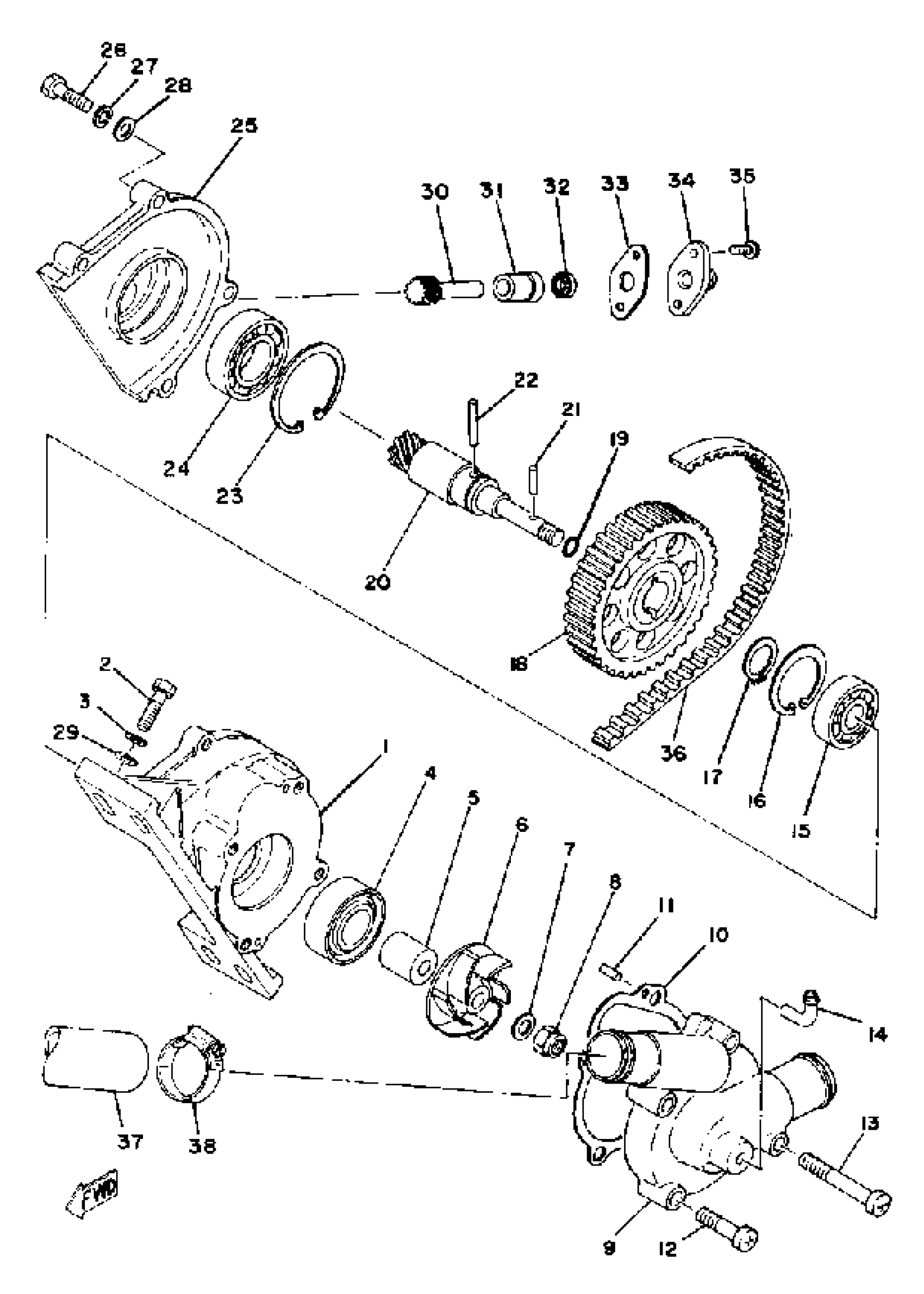

Find the part on the Water Pump diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, WATER PUMP

(8A7-12421-00-00)

1
Out of stock

2

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

OIL SEAL, SW-TYPE

93103-20101-00

1
Out of stock

5

COLLAR

90387-08517-00

1
Out of stock

6

IMPELLER, WATER PMP

8A7-12451-00-00

1
Out of stock

7

WASHER (8A7)

90201-08452-00

1

$4.06

In stock

8

NUT, SELF-LOCKING

90185-08018-00

1

$3.96

In stock

9

COVER, HOUSING

(8A7-W1241-01-00)

1
Out of stock

10

GASKET,HSNG CVR 1

8A7-12427-09-00

1
Out of stock

11

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

12

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

13

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

14

PIPE, BREATHER

8A7-12463-00-00

1
Out of stock

15

BEARING(82M)

93306-20117-00

1
Out of stock

16

CIRCLIP(46T)

99009-32500-00

—

$6.22

In stock

17

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

18

PULLEY 2

(8H0-12442-00-00)

1
Out of stock

19

O-RING

93210-08003-00

—

$6.86

In stock

20

SHAFT, IMPELLER

(8A7-12458-00-00)

1
Out of stock

21

PIN, SPRING

91690-30012-00

1

$5.04

In stock

22

PIN, DOWEL

(93604-22121-00)

1
Out of stock

23

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

24

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

25

HOUSING, TACH GEAR

(8A7-17811-00-00)

1
Out of stock

26

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

29

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

30

GEAR, DRIVEN

8A7-17841-00-00

1
Out of stock

31

BUSH, DRVN GR OUTER

8A7-17843-00-00

1
Out of stock

32

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

33

GASKET

821-17818-02-00

—

$5.66

In stock

34

CAP, HOUSING

821-17819-00-00

1
Out of stock

35

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

36

BELT 1

8H0-12444-01-00

1
Out of stock

37

PIPE 1

8A7-12481-00-00

1
Out of stock

38

CLAMP, HOSE

90460-38292-00

1
Out of stock
