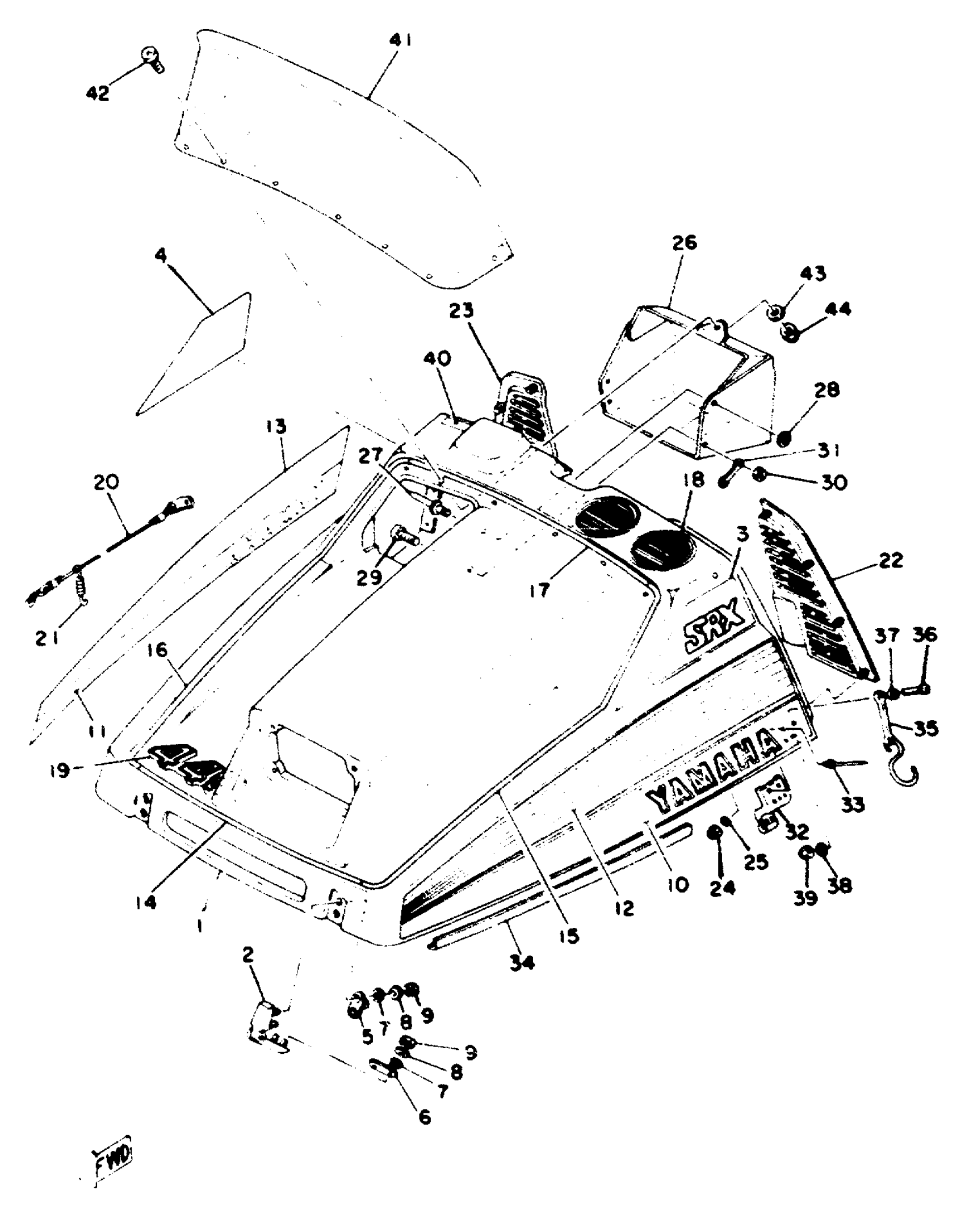

Find the part on the Shroud diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8G9-77110-00-00)

1
Out of stock

2

HINGE ASSEMBLY

878-77140-00-00

1
Out of stock

3

REFLECTOR 1

(8G9-7716E-00-00)

1
Out of stock

4

REFLECTOR 2

(8G9-7716F-00-00)

1
Out of stock

5

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

6

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

7

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

ORNAMENT 1

8G9-77163-00-00

1
Out of stock

11

ORNAMENT 2

8G9-77164-00-00

1
Out of stock

12

ORNAMENT 4

(8J0-77113-01-00)

1
Out of stock

12

ORNAMENT 5

(8J0-77114-01-00)

1
Out of stock

12

ORNAMENT

(99999-01358-00)

1
Out of stock

13

ORNAMENT 5

(8F2-77114-00-00)

1
Out of stock

14

STRIPE 2

8G9-77282-00-00

1
Out of stock

15

STRIPE 3

(8G9-77283-00-00)

1
Out of stock

16

STRIPE 4

(8G9-77284-00-00)

1
Out of stock

17

STRIPE 5

(8G9-77285-00-00)

1
Out of stock

18

LOUVER 3

8A7-77133-00-00

1
Out of stock

19

EMBLEM 8

(8G9-77358-00-00)

1
Out of stock

20

STOPPER, SHROUD

8F2-77118-00-00

1
Out of stock

21

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

22

LOUVER 1

8A5-77131-01-00

1
Out of stock

23

LOUVER 2

8A5-77132-01-00

1
Out of stock

24

NUT, NYLON

95707-05300-00

—

$2.74

In stock

25

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

26

DUCT

(8K2-77194-00-00)

1
Out of stock

27

RIVET, BLIND

90267-489UJ-00

1
Out of stock

28

WASHER, PLATE

90201-04027-00

—
Out of stock

29

SCREW, BIND

98903-05016-00

1
Out of stock

30

NUT, NYLON

95707-05300-00

—

$2.74

In stock

31

WASHER, SPECIAL

(8A7-77116-00-00)

1
Out of stock

32

CLAMP 2

(8F2-77136-00-00)

1
Out of stock

33

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

34

STRIP, WEATHER 1

(8A7-77161-01-00)

1
Out of stock

35

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

36

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

37

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

38

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

39

NUT, NYLON

95707-06300-00

—

$3.20

In stock

40

LABEL, SAFETY

288-21659-00-00

1
Out of stock

41

WINDSHIELD

8G9-77210-00-00

1
Out of stock

42

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

43

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

44

NUT, NYLON

95707-05300-00

—

$2.74

In stock
