1978 Yamaha SRX440B Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

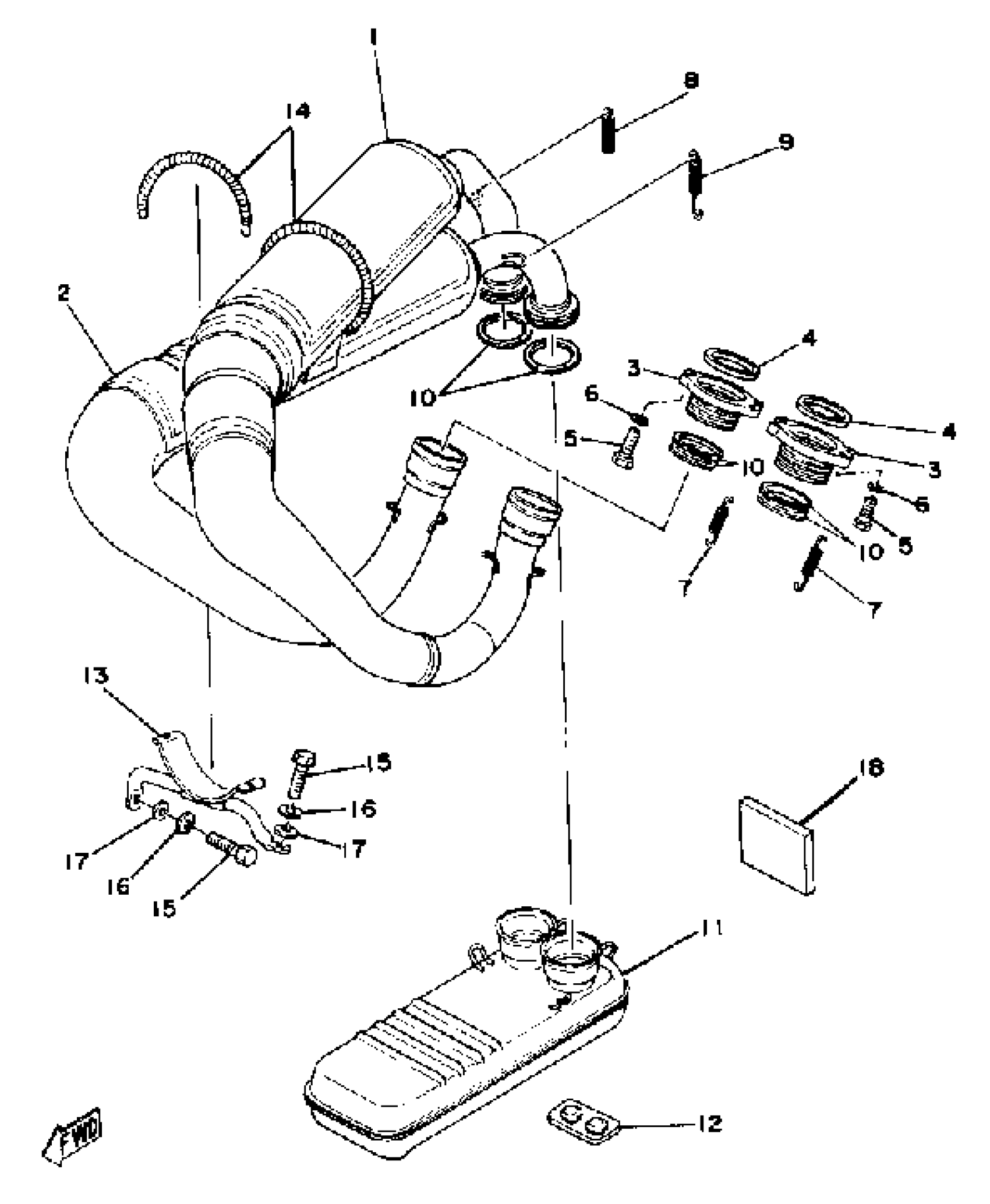

1978 Yamaha SRX440B Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8G9-14610-01-00

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

8G9-14620-01-00

1
Out of stock

3

NUT, RING

8J0-14612-00-00

1
Out of stock

4

GASKET, EXHAUST

8A7-14613-09-00

1

$7.42

In stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SPRING, HOOK (888)

90506-20115-00

—
Out of stock

8

SPRING, TENSION

90506-14033-00

1
Out of stock

9

1

$3.57

In stock

10

RING

888-14633-00-00

1

$6.46

In stock

11

2ND SILENCER, MUFF

(8A7-14640-00-00)

1
Out of stock

12

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock

13

STAY, MUFFLER 1

(8A7-14771-00-00)

1
Out of stock

14

SPRING, TENSION (8BU1)

90506-16494-00

1

$6.22

In stock

15

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

18

DAMPER, MUFFLER

(8A7-14747-00-00)

1
Out of stock
