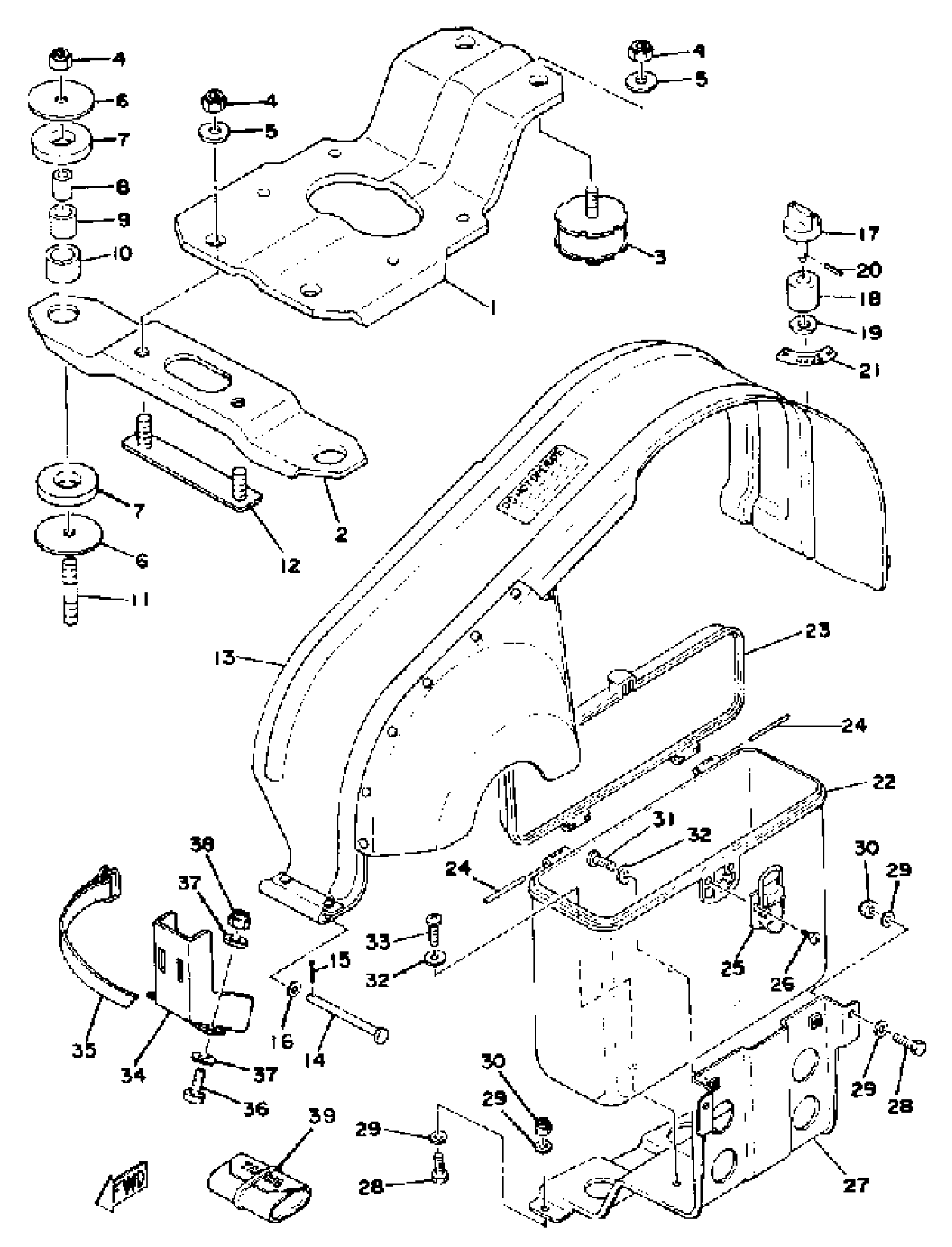

Find the part on the Engine Bracket Drive Guard diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Engine Bracket Drive Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8A7-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

(8F2-21419-00-00)

1
Out of stock

3

DAMPER 2

857-21486-00-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

5

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

6

WASHER (888)

90201-10151-00

—

$3.94

In stock

7

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

8

COLLAR

(90387-10613-00)

1
Out of stock

9

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

10

COLLAR

90387-21515-00

1
Out of stock

11

BOLT, STUD

95611-10345-00

1
Out of stock

12

BOLT, ENG MNTNG 1

(8F2-21481-00-00)

1
Out of stock

13

GUARD, DRIVE

8F2-77311-00-00

1
Out of stock

14

PIN(8E7)

91701-06082-00

1

$4.60

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

17

KNOB

(829-77324-00-00)

1
Out of stock

18

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

19

WASHER, PLATE

90201-08104-00

1
Out of stock

20

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

21

EMBLEM 11

(829-77366-00-00)

1
Out of stock

22

LUGGAGE BOX

(8E7-77391-00-00)

1
Out of stock

23

COVER, LUGGAGE BOX

8E7-77392-00-00

1
Out of stock

24

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

25

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

26

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

27

STAY 1

(8E7-77397-00-00)

1
Out of stock

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

29

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

30

NUT, NYLON

95707-06300-00

—

$3.20

In stock

31

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

32

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

STAY, BELT

(8G9-77338-00-00)

1
Out of stock

35

BAND, SERVICE BAG

(8G9-77332-00-00)

1
Out of stock

36

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

37

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

38

NUT, NYLON

95707-05300-00

—

$2.74

In stock

39

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
