1978 Yamaha SRX440B Cylinder - Crankcase Diagram

← All diagrams

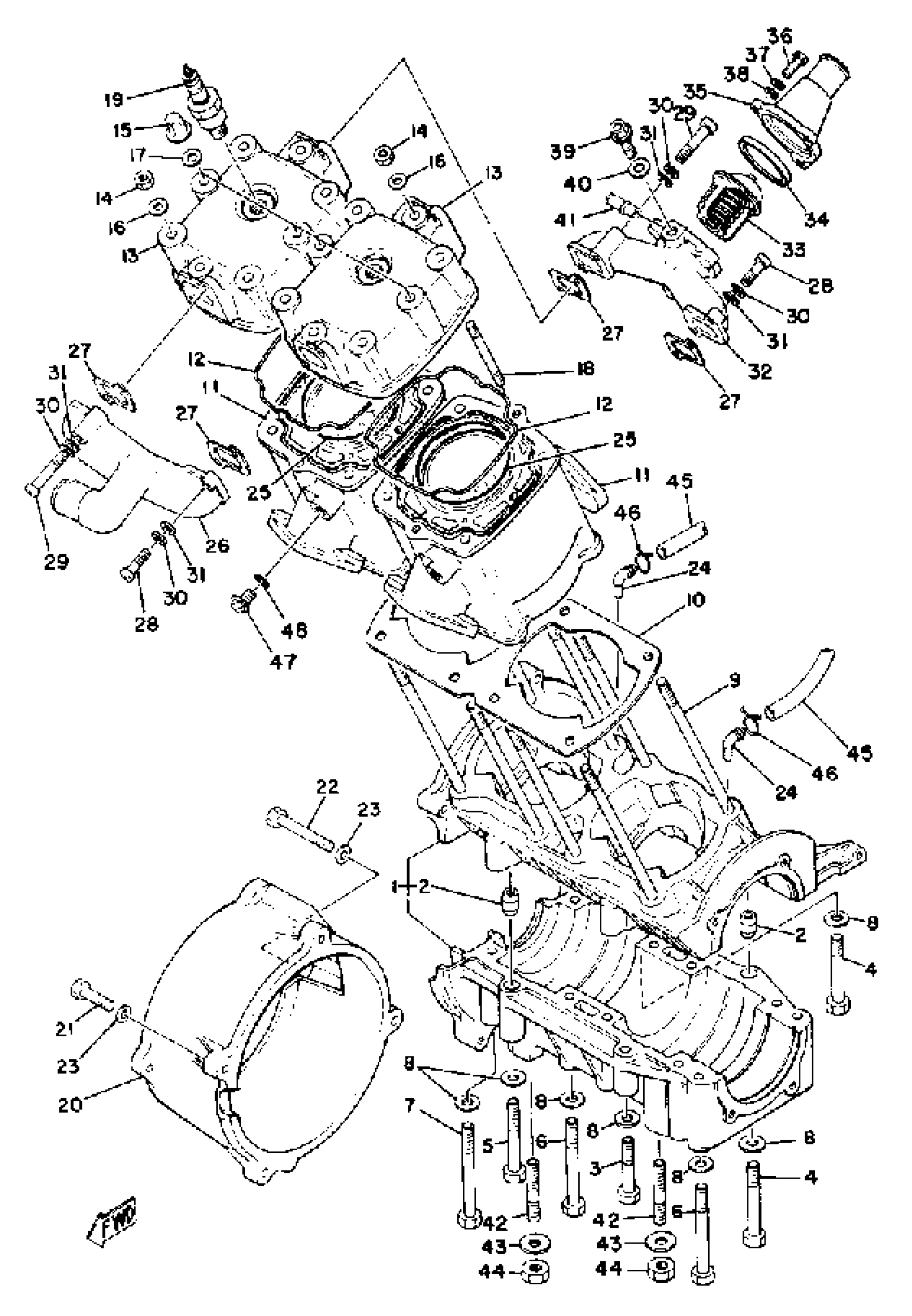

Find the part on the Cylinder - Crankcase diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Cylinder - Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(8F2-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON

(97311-08050-00)

1
Out of stock

4

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

5

BOLT, HEXAGON

(97311-08070-00)

1
Out of stock

6

BOLT, HEXAGON

(97311-08075-00)

1
Out of stock

7

BOLT, HEXAGON

(97311-08080-00)

1
Out of stock

8

WASHER (1T1)

90201-08649-00

1
Out of stock

9

BOLT, CYLINDER HOLDING 1

8G9-11361-00-00

1
Out of stock

10

GASKET, CYLINDER

8H0-11351-09-00

1
Out of stock

11

CYLINDER 1

8G9-11311-01-00

1
Out of stock

12

GASKET, CYLINDER HEAD 1

8A7-11181-00-00

1
Out of stock

13

HEAD, CYLINDER 1

(8J0-11111-00-00)

1
Out of stock

14

. NUT

90170-08220-00

1
Out of stock

15

NUT (F1ZR)

90179-08813-00

1
Out of stock

16

WASHER, PLATE (397)

90201-08100-00

—

$6.17

In stock

17

WASHER, PLATE

90201-080L7-00

—

$3.42

In stock

18

BOLT, STUD (8H8)

90116-08302-00

—
Out of stock

19

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1

$14.69

In stock

20

COVER, CRANKCASE R

8G9-15421-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

22

BOLT, HEXAGON

97013-06050-00

—

$1.54

In stock

23

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

24

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

25

O-RING

93210-78307-00

1
Out of stock

26

JOINT

(8A7-12498-00-00)

1
Out of stock

27

GASKET, MANIFOLD

8A7-13556-09-00

1
Out of stock

28

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

29

SCREW PAN HEAD

98580-06040-00

—

$6.17

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

32

CASE, THERMOSTAT

(8A7-11346-00-00)

1
Out of stock

33

THERMOSTAT

8G9-12411-03-00

1
Out of stock

34

SEAL, THERMOSTAT

8A7-12412-01-00

—

$14.25

In stock

35

COVER, THERMOSTAT

8A7-12413-00-00

1
Out of stock

36

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

39

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

40

WASHER, PLATE

90201-080L7-00

—

$3.42

In stock

41

JOINT

8A7-12499-00-00

1
Out of stock

42

BOLT, STUD

90116-10132-00

1
Out of stock

43

WASHER, PLATE(8BV)

90201-100S7-00

—

$9.75

In stock

44

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

45

HOSE (L400)

90445-116K9-00

—
Out of stock

46

CLIP

90467-090A2-00

—

$2.51

In stock

47

PLUG, STRAIGHT SCRW

(90340-10051-00)

1
Out of stock

48

O-RING (371)

93210-11124-00

—

$5.62

In stock
