1978 Yamaha SRX440B Radiator Diagram

← All diagrams

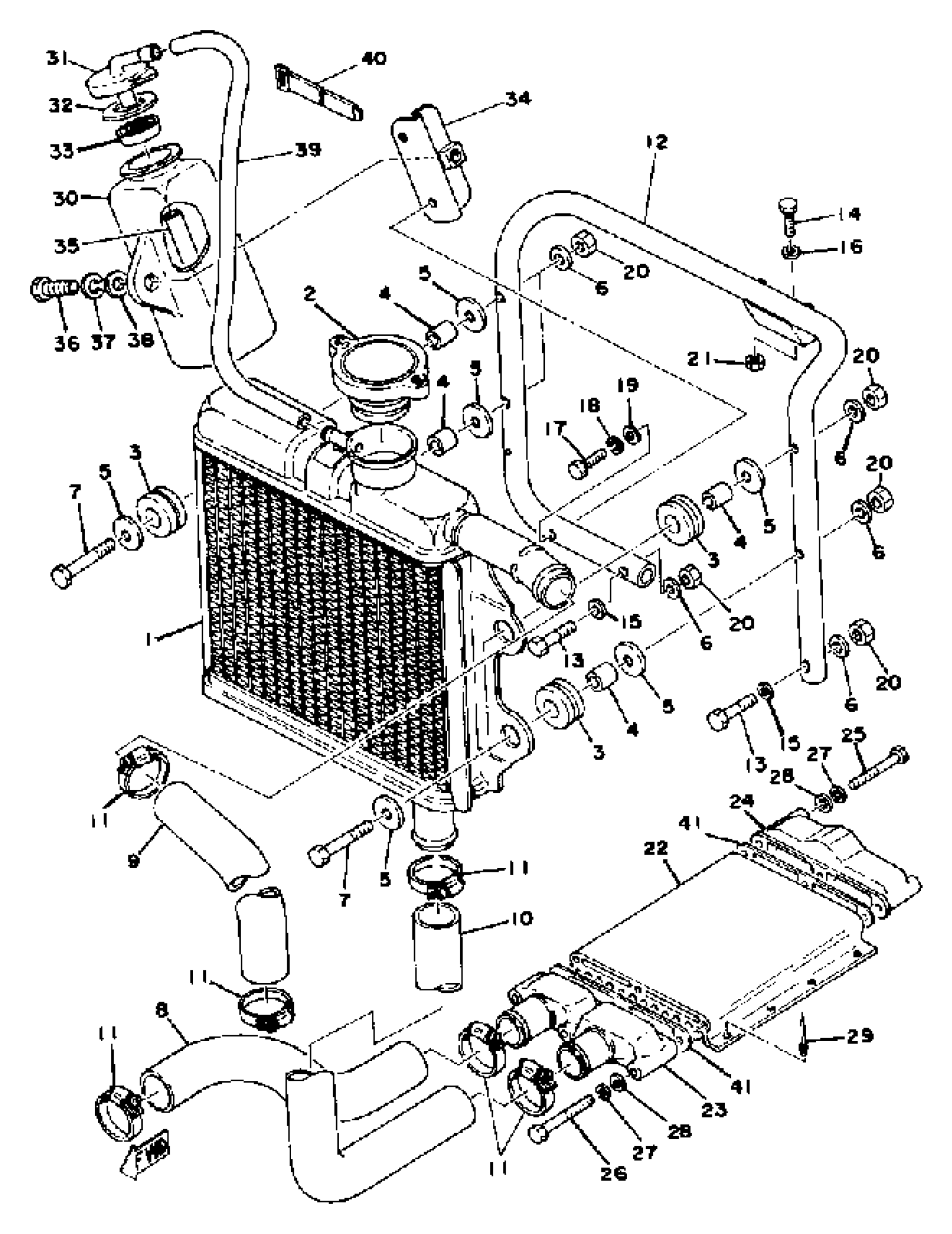

Find the part on the Radiator diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSEMBLY

8A7-12460-00-00

1
Out of stock

2

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

3

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

4

COLLAR (8A7)

90387-06518-00

1
Out of stock

5

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

6

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

7

BOLT (682)

97095-06040-00

1

$2.36

In stock

8

PIPE 5

(8G9-12485-00-00)

1
Out of stock

9

PIPE 2

8A7-12482-00-00

1
Out of stock

10

PIPE 3

(8G9-12483-00-00)

1
Out of stock

11

CLAMP, HOSE

90460-38292-00

1
Out of stock

12

STAY, RADIATOR

(8A7-12464-00-00)

1
Out of stock

13

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

14

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

20

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

21

NUT, U

95617-08100-00

—

$6.78

In stock

22

EXCHANGER, HEAT

8H0-12466-00-00

1
Out of stock

23

JOINT 1

8G9-12469-00-00

1
Out of stock

24

JOINT

8G9-12479-00-00

1
Out of stock

25

BOLT, HEXAGON

(97301-05050-00)

1
Out of stock

26

BOLT, HEXAGON

(97321-05045-00)

1
Out of stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

29

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

30

TANK, RECOVERY

8A7-21871-00-00

1
Out of stock

31

CAP

8A2-21875-00-00

1
Out of stock

32

GASKET, CAP

8A2-16716-00-00

1
Out of stock

33

STOPPER

8A2-21872-00-00

1
Out of stock

34

BRACKET, RECOV TANK

(8A7-21873-01-00)

1
Out of stock

35

HOSE (7-140)

90445-11374-00

1
Out of stock

36

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

38

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

39

HOSE

90445-11306-00

1
Out of stock

40

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

41

GASKET 1

8G9-12474-00-00

1
Out of stock
