1980 Yamaha SR540D Seat SR540D Diagram

← All diagrams

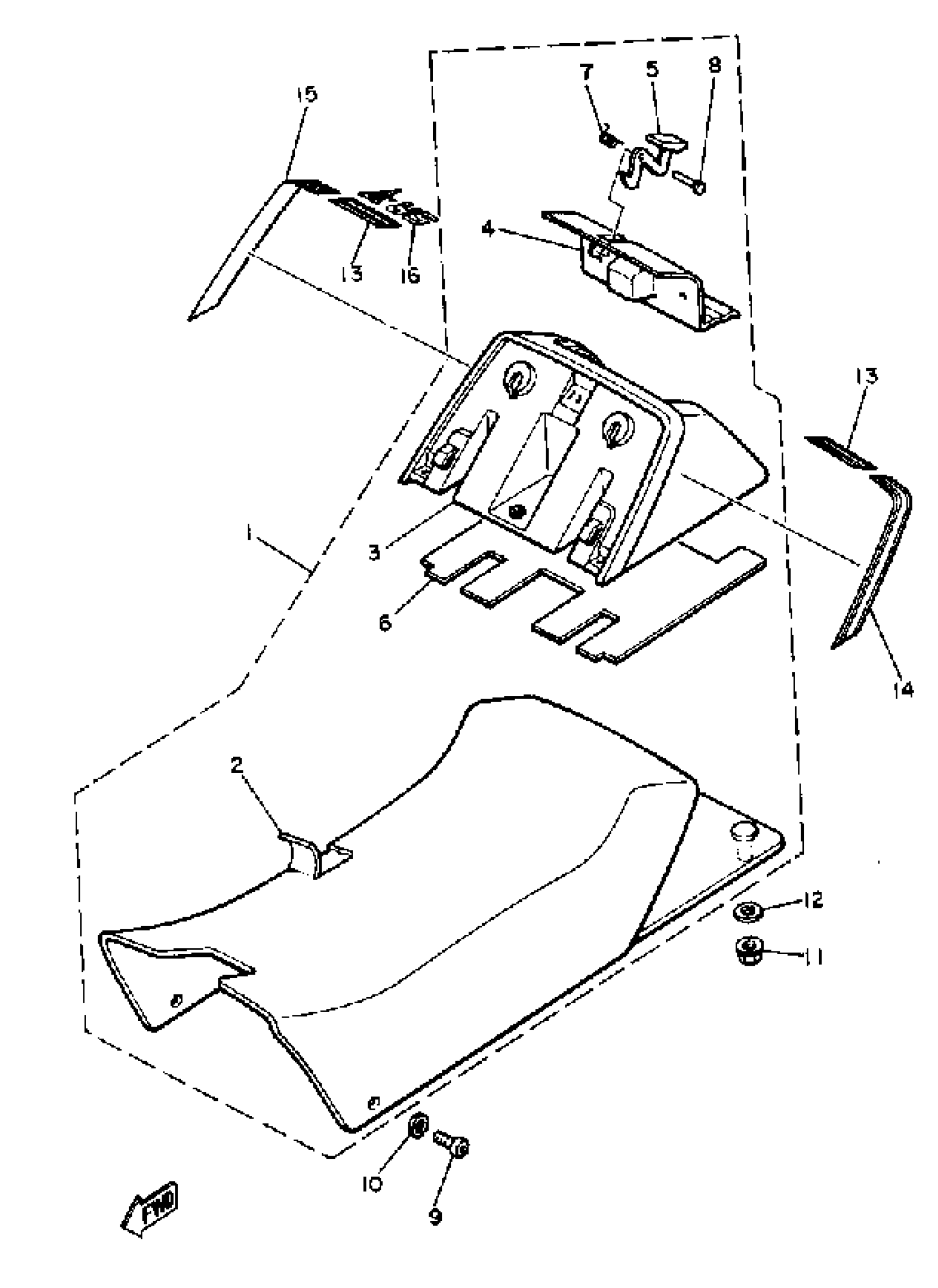

Find the part on the Seat SR540D diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Seat SR540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

(8L0-24710-00-00)

1
Out of stock

2

COVER, SINGLE SEAT

(8L0-24711-00-00)

1
Out of stock

3

. BOX 1

8L0-2473R-00-00

1
Out of stock

4

LID 1

(8L0-2473T-00-00)

1
Out of stock

5

LEVER,SEAT

8L0-24776-00-00

1
Out of stock

6

. COVER

8K4-24796-00-00

1
Out of stock

7

SPRING,TORSION

90508-104A1-00

1
Out of stock

8

PIN

90243-04004-00

1
Out of stock

9

SCREW, BINDING

90154-06003-00

1
Out of stock

10

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

11

NUT, NYLON

95717-08300-00

1

$2.57

In stock

12

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

13

ORNAMENT 3

8L0-77169-00-00

1
Out of stock

14

ORNAMENT 4

8L0-77113-00-00

1
Out of stock

15

ORNAMENT 5

8L0-77114-00-00

—

$14.98

In stock

16

EMBLEM 5

8L0-77355-00-00

1
Out of stock
