1980 Yamaha SR540D Frame SR540D Diagram

← All diagrams

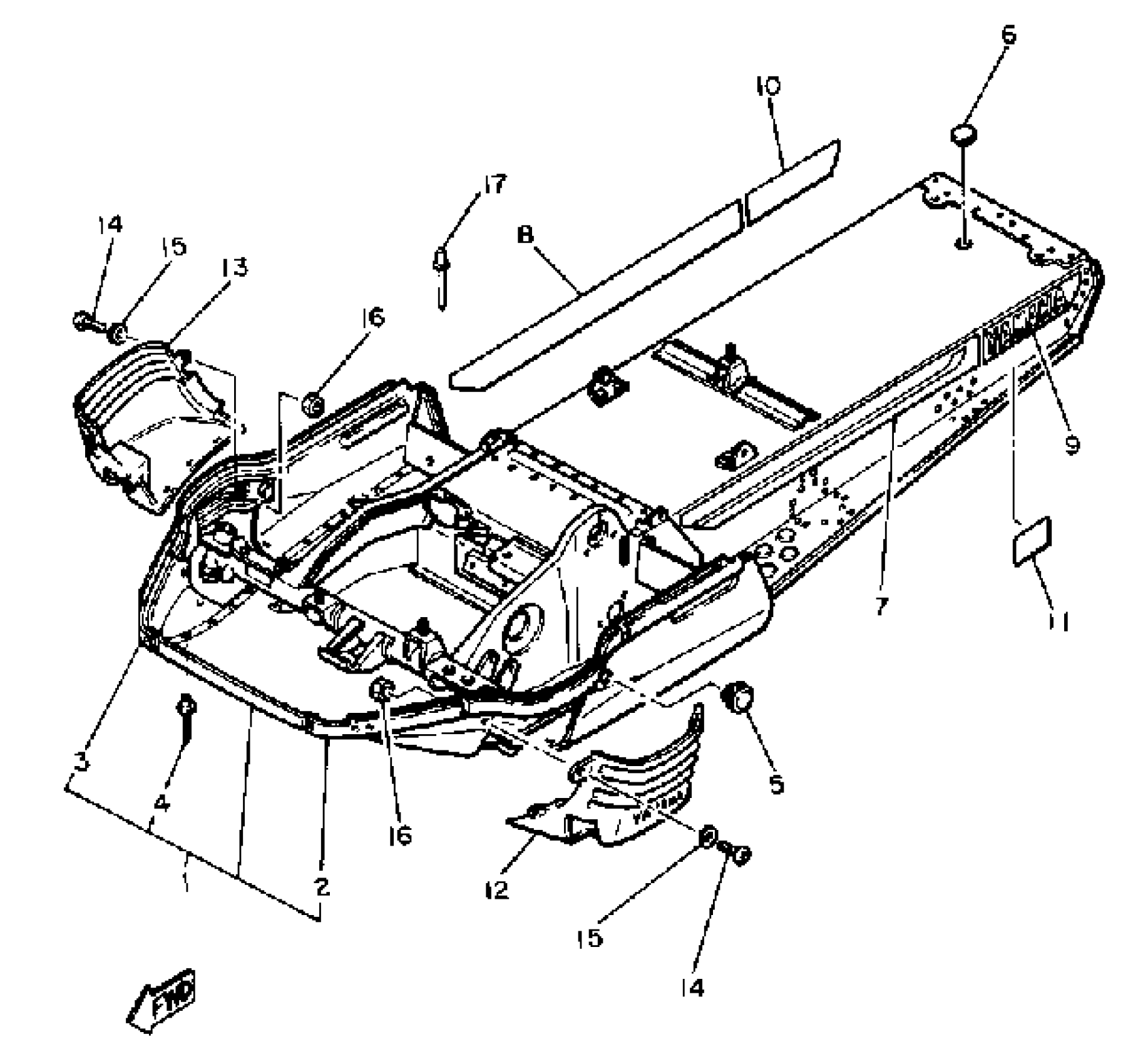

Find the part on the Frame SR540D diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Frame SR540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8L0-21910-00-00)

1
Out of stock

2

. HOOD 1

8L0-21982-00-00

1
Out of stock

3

HOOD 2

(8L0-21983-00-00)

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

7

EMBLEM 1

(8L0-77351-00-00)

1
Out of stock

8

EMBLEM 2

8L0-77352-00-00

1
Out of stock

9

EMBLEM 3

8L0-77353-00-00

1
Out of stock

10

EMBLEM 4

8L0-77354-00-00

1
Out of stock

11

INDICATOR 2

8K2-77742-00-00

1
Out of stock

12

COVER 1

8L0-2198F-00-00

1
Out of stock

13

COVER 2

8L0-2198G-00-00

1
Out of stock

14

SCREW, BINDING(3XV)

90154-05059-00

1

$5.21

In stock

15

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

16

NUT, NYLON

95707-05300-00

—

$2.74

In stock

17

RIVET, BLIND (8L0)

90267-48059-00

—

$2.46

In stock
