1980 Yamaha SR540D Guard - Luggage BOX SR540D-E Diagram

← All diagrams

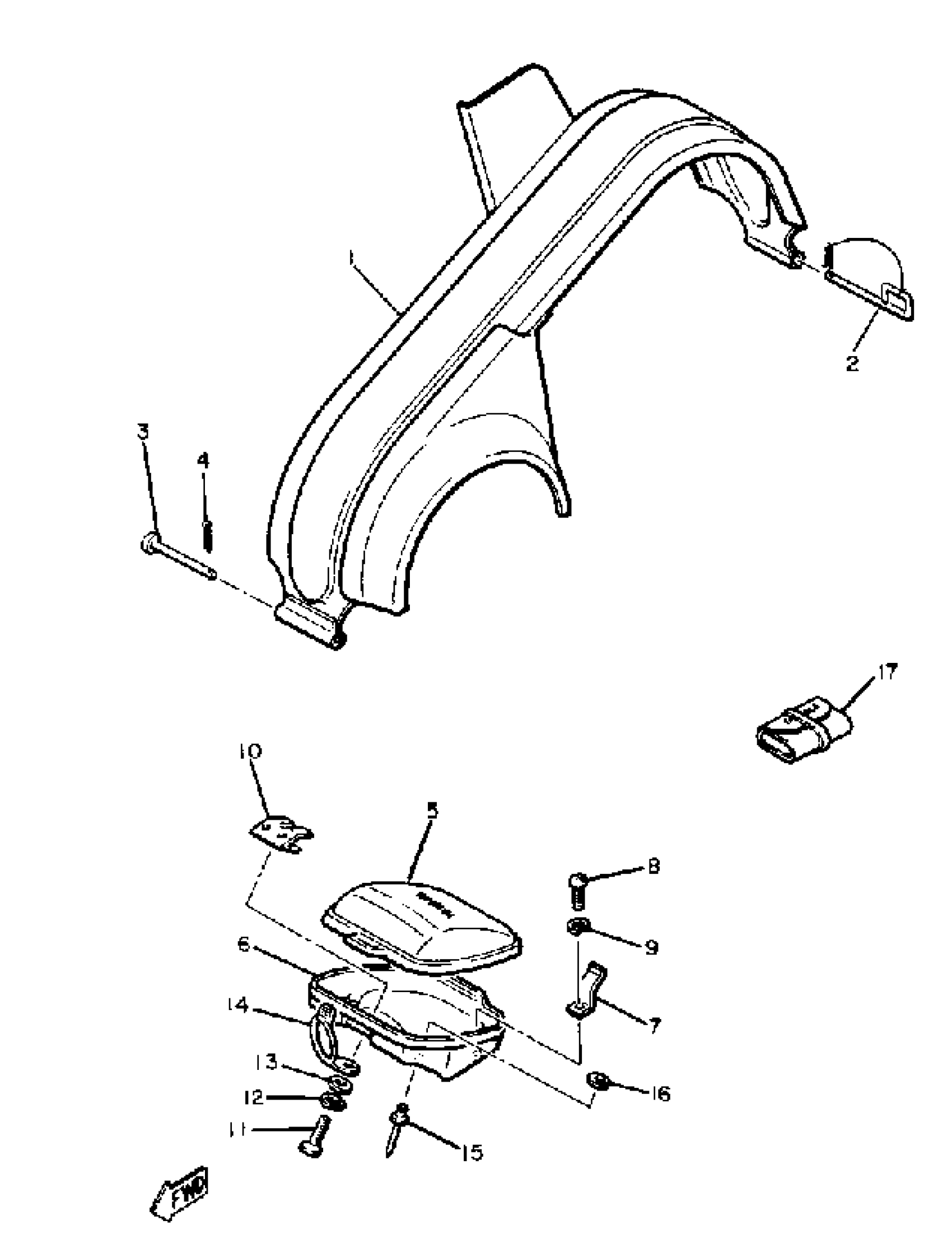

Find the part on the Guard - Luggage BOX SR540D-E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Guard - Luggage BOX SR540D-E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE (8L0-77311-00)

8L0-77311-01-00

1
Out of stock

2

SHAFT

8F3-77327-00-00

1
Out of stock

3

PIN(8E7)

91701-06082-00

1

$4.60

In stock

4

CLIP

90468-18008-00

1

$1.35

In stock

5

LID

1T4-2177E-00-00

1
Out of stock

6

BOX

1T4-2177A-00-00

1
Out of stock

7

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

8

SCREW, PAN

98507-06014-00

1

$6.18

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

HOOK 1

8K4-77386-00-00

1
Out of stock

15

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

16

WASHER, PLATE

90201-04027-00

—
Out of stock

17

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
