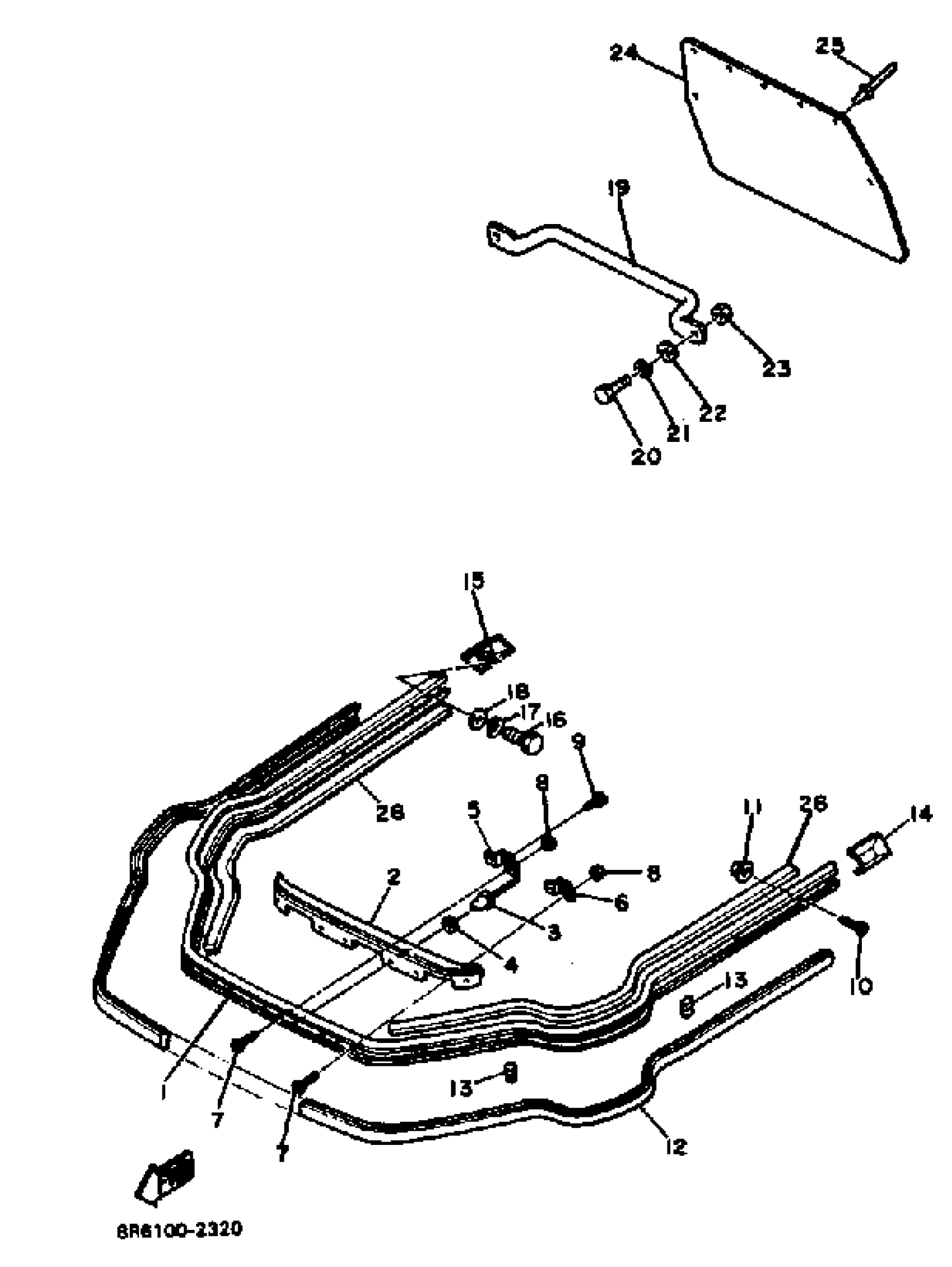

Find the part on the Bumper SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Bumper SR540F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8R6-77511-00-00

1
Out of stock

2

BUMPER, FRONT 2

8R6-77512-00-00

1
Out of stock

3

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BRACKET, FRONT L (L.H)

8N8-77531-00-00

1
Out of stock

6

BRACKET, FRONT R (R.H)

8N8-77532-00-00

1
Out of stock

7

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

8

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

9

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

10

SCREW, FLAT

98707-06014-00

1
Out of stock

11

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

12

BUSH, RUBBER 2

8R6-77516-00-00

1
Out of stock

13

PLATE, BACK UP

8R6-77527-00-00

1
Out of stock

14

END, BUMPER

8N8-77523-00-00

1
Out of stock

15

END, BUMPER

8N8-77524-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

20

BOLT, HEXAGON

97017-08020-00

—
Out of stock

21

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

22

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

FLAP

8V8-77595-00-00

1
Out of stock

25

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

26

BUSH, RUBBER 1

8L0-77515-00-00

1
Out of stock
